ACP-1106HTT-A1-1015
Brand: AAEON [An ASUS Co.]
Categories:
AAEON's ACP-1104HTT-B3-1014 model is available with a 10.1-inch WXGA (1280 x 800) resolution display. Its rugged construction and IP65-compliant design make it ideal for use in industrial environments.
This device delivers powerful performance with its Intel® Celeron® J1900 processor, 4GB DDR3L RAM, and mSATA storage options. Its low power consumption saves energy.
It provides easy integration with various devices with rich connectivity options such as HDMI output, dual Gigabit Ethernet, USB 3.2 Gen 1 and RS-232/422/485 ports.
Its fanless design provides a quiet and efficient working environment. VESA mount support offers flexible installation options and easily adapts to different applications.
The ACP-1104HTT-B3-1014 stands out as a reliable solution in a wide range of applications, from automation processes to environmental monitoring systems.
Features
| Product Code | ACP-1106HTT-A1-1015 |
| Screen size | 10.1" TFT LCD |
| Resolution | 1280 x 800 |
| Screen Format | 16 | 10 |
| Brightness | 300 cd/m² |
| Contrast | 1000 | 1 |
| Viewing Angle | 170°(H) / 170°(V) |
| Touch Type | Projective Capacitive [P-CAP] |
| Backlight Life (Min. Hours) | 25000 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Pentium® N4200 4 Core 1.10 / 2.40 GHz | BM : 2150 |
| Processor [CPU] Family | Intel® Pentium® |
| RAM [System Memory] | 4 GB Onboard |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x2 |
| USB 2.0 | x1 |
| RS 232 Serial Port | x1 |
| Video Output | HDMI x 1 |
| Expansion Slot | Half Size Mini-PCIe x 4 |
| Wireless | Wi-Fi / BT Optional |

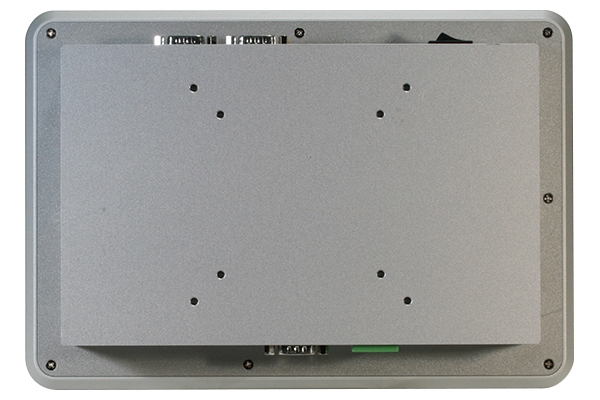

| Mounting Type | VESA 75 | Panel Mount | Stand | Mounting Unit Not Included. |
| Supply Voltage | DC 9-30 V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 266 x 184 x 48 |
| Body Material | Aluminum |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
