ACP-1074HTT-A3-1014
Brand: AAEON [An ASUS Co.]
Categories:

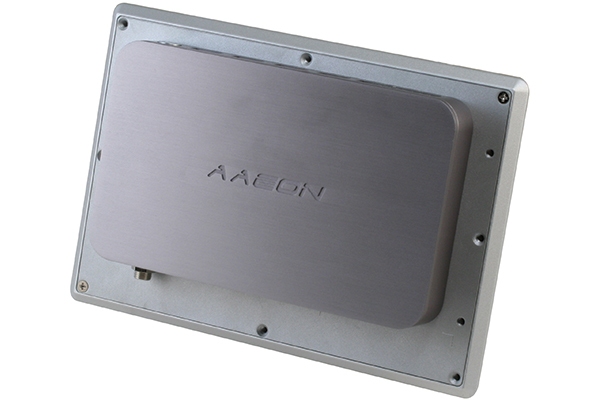

AAEON's ACP-1074HTT-A3-1014 is designed for industrial use with its durability and high performance. Its stylish aluminum casing and IP65 compliance provide superior protection in harsh environmental conditions.
This model is equipped with an Intel® Celeron® J1900 processor and provides a 1024x600 resolution on its 7-inch TFT-LCD display. The display, which has a brightness of 320 cd/m², offers a user-friendly experience with its P-CAP multi-touch feature.
The ACP-1074HTT-A3-1014 offers rich connectivity options with HDMI output, dual Gigabit Ethernet, USB 2.0 and 3.2 Gen 1 ports. It also supports RS-232/422/485, ensuring easy integration with various devices.
Its fanless design ensures energy efficiency, while its VESA mount support provides flexibility in various application scenarios. It also reduces operating costs thanks to its low power consumption.
The ACP-1074HTT-A3-1014 is an excellent choice for industrial automation, digital signage and environmental monitoring applications.
Features
| Product Code | ACP-1074HTT-A3-1014 |
| Screen size | 7" TFT LCD |
| Resolution | 1024 x 600 |
| Screen Format | 16 | 10 |
| Brightness | 300 cd/m² |
| Contrast | 500 | 1 |
| Viewing Angle | 140°(H) / 120°(V) |
| Touch Type | Projective Capacitive [P-CAP] |
| Backlight Life (Min. Hours) | 20000 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Celeron® N2807 2 Core 1.58 GHz | BM : 510 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 2 GB Onboard |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x1 |
| USB 2.0 | x3 |
| RS 232/422/485 Serial Port | x2 |
| Digital I/O | 4DI / 2DO |
| Video Output | VGA x 1 |
| Wireless | Wi-Fi / BT Optional |
| Mounting Type | VESA 75 | Panel Mount | Stand | Mounting Unit Not Included. |
| Supply Voltage | DC 12V |
| Working temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 196 x 134 x 30 |
| Body Material | Aluminum |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC | LVD |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
