Features

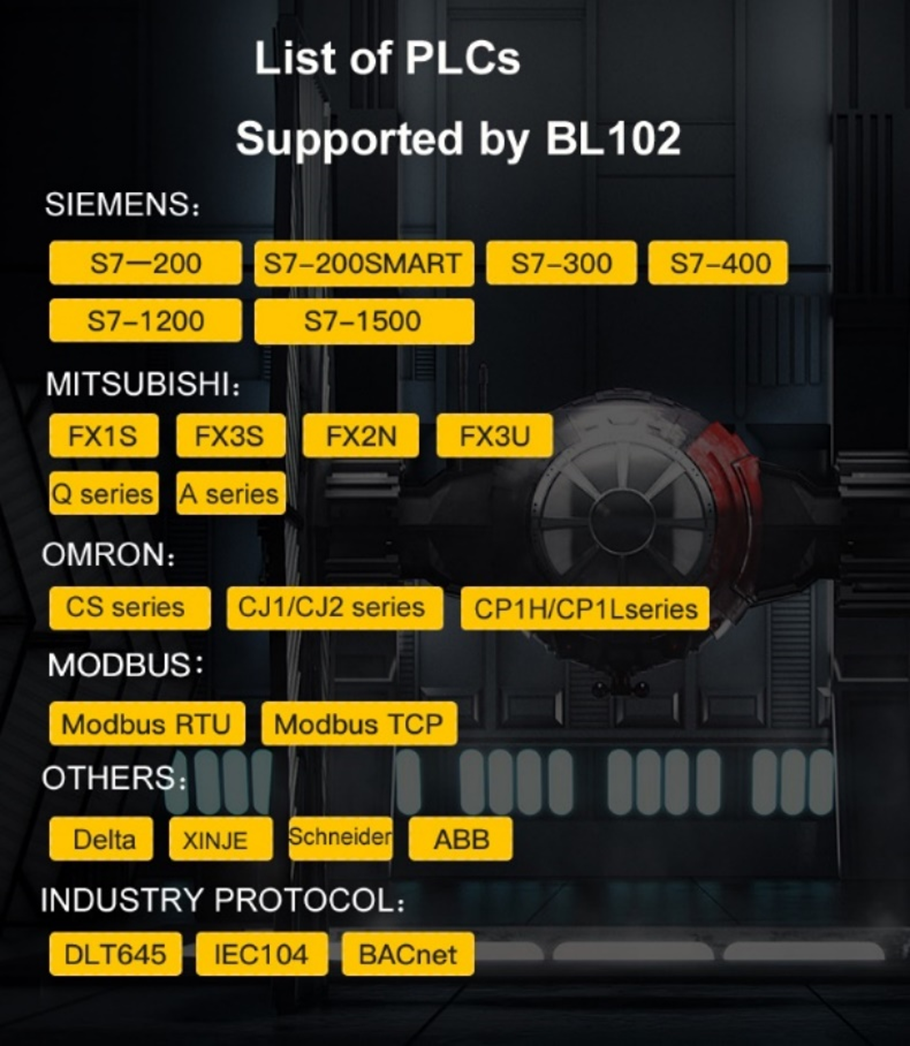

• Downlink supports: Siemens, Mitsubishi, OMRON, Delta, Allen-Bradley, Schneider and other PLCs
• Uplink supports: Modbus TCP, MQTT, OPC UA, HUAWEI Cloud, Alibaba Cloud, AWS, ThingsBoard Cloud, King Pigeon Cloud, etc.
• DC 9-36V wide power voltage input with wiring terminal. There’re 2 channels of power input redundancy design with inverse connection protection. Either channel can be selected.
• 1 power output, output voltage is equal to input voltage.
• 1 RS485/ (optional RS232) serial port input
• Serial port baud rate 2400bps-115200bps; stop bit supports 1, 2 bits; data bit supports 7,8 bits; parity bit supports None, Odd, Even.

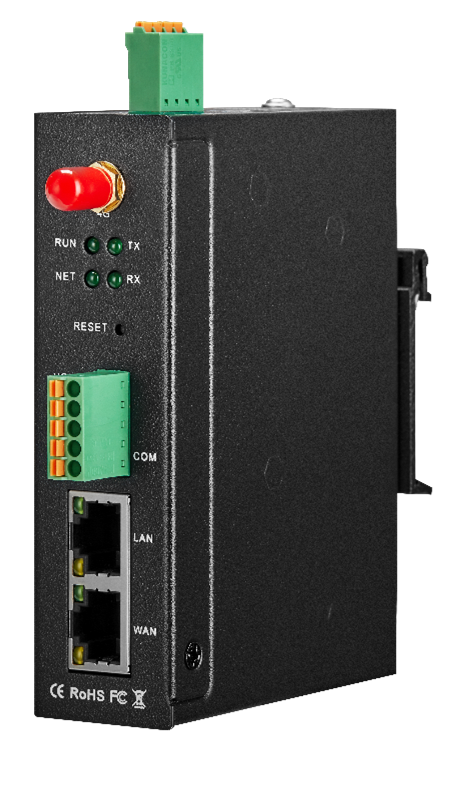

• 2 RJ45 ports for Ethernet connection, 1 WAN and 1 LAN. Data can be collected from devices connected to WAN and LAN port or cascaded switch devices. Network link and rate indicators are available. Built-in isolation transformer with up to 2KV electromagnetic insulation.
• Support POE PD (Powered Device) for saving wiring cost (Optional function).
• Support TSL\SSL data encryption for security.
• Support routing function to provide network for other devices.
• Support 4G cellular network and APN setting. Ethernet network will be used if it’s available. It will shift to 4G network automatically if Ethernet is not available.
• Support Modbus RTU to Modbus TCP and transparent transmission.
• Support RESET button for returning to factory settings (Long press the button until RUN indicator off with power) to avoid wrong parameter settings.
• Support software and hardware watchdog for high reliability.
• Metal case with IP30 protection grade. Metal case and system are safely isolated, especially suitable for industrial site applications.
• Compact device size: 30mm*83mm*110mm, support wall-mounting and DIN-Rail mounting.
