IPC4-GW-KPBL100 MODBUS - MQTT GATEWAY
IPC4-GW-KPBL100 MODBUS - MQTT GATEWAY

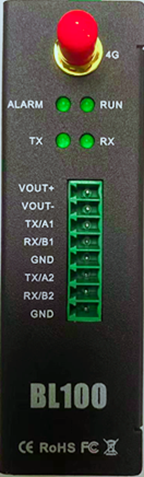

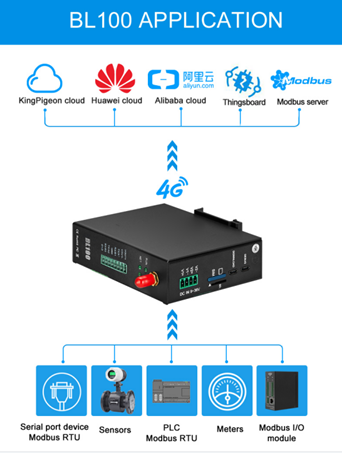

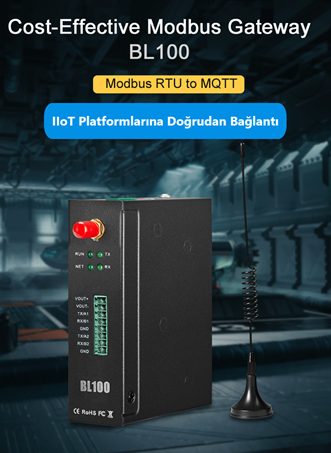

IPC4-GW-KPBL100 is a Modbus to MQTT gateway based on cellular network. It supports Modbus RTU, Modbus TCP, MQTT, Alibaba Cloud, HUAWEI Cloud, King Pigeon Cloud, custom platform and transparent data transmission. Users can connect it to third-party server, cloud platform and SCADA easily.
With built-in industrial GSM/GPRS/3G/4G communication module, IPC4-GW-KPBL100 has integrated stable and reliable 32-bit MCU based on embedded uCOSII real time operation system
It supports Modbus Slave and Modbus Master with up to 320 extended datapoints for data collection. Users can configure high/low limit parameters according to various application requirement. If any threshold is triggered, device will send notification to users via SMS and transmit the data to monitoring center without operator on-site check.
Features
• Use 4G cellular network for communication without range limit
• Support 9~36VDC power supply with reverse connection protection
• 2 channels of built-in DC power output (Output power voltage is equal to input power voltage) to save wiring cost
• Simple and convenient parameter setting with local configuration software and remote SMS
• Built-in software and hardware watchdog to prevent false deadlock
• 1 RS485 serial port, support Modbus RTU to MQTT and transparent transmission
• Serial port baud rate supports 2400bps-115200bps; stop bit supports 1, 2, data bit supports 8, parity bit supports None, Odd, Even
• Support Modbus Slave protocol and can be connected to host computer like SCADA, HMI, DSC, PLC, etc. Support Modbus RTU Master and can connect up to 48 Modbus Slave devices with max 320 datapoints
• Support SMS alarm for monitoring various Modbus data, support configuration software parameter setting and SMS inquiry, if any communication problem, will notify users with SMS

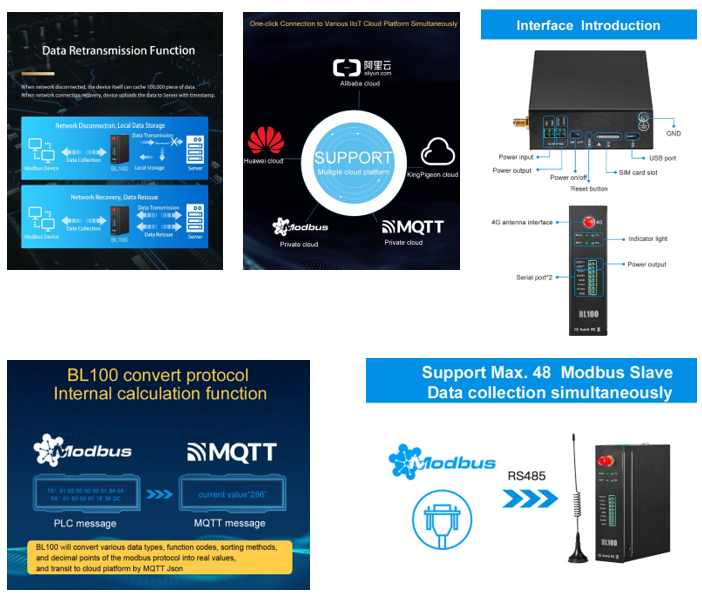

• Use complete offline prevention mechanism to re-transmit offline data and notify users with SMS
• Support remote device restart and parameter setting with SMS
• Support 10 user numbers to receive device disconnection, serial port data beyond limit, and other alarm messages
• Built-in timer function to perform scheduled automatic data reporting, SMS, Arm/Disarm and device restarting
• Support PC configuration software to read, import, export parameters and upgrade firmware through USB interface
• Metal case, IP30 protection grade, metal case and PCBA are isolated safely, applicable in industrial sites
• Compact size, support wall-mounting and 35mm DIN rail mounting
|
Category |
Parameter |
Description |
|
Power Supply |
Power Voltage |
9～36V DC |
|
Power Consumption |
Normal: 50mA@12V, Max: 150mA@12V |
|
|
Power Output |
l 2 channels |
|
|
Power Protection |
Reverse connection protection, |
|
|
Serial Port |
Serial Port Quantity |
1x RS485 |
|
Baud Rate |
1200bps-115200bps |
|
|
Data Bit |
8 |
|
|
Parity Bit |
None, Even, Odd |
|
|
Stop Bit |
1,2 |
|
|
Protocol |
Modbus RTU (slave), Modbus RTU (master) |
|
|
Protection |
ESD contact: 8KV, surge: 4KV (8/20us) |
|
|
SIM/UIM Card Slot |
Slot Quantity |
1 |
|
Slot Type |
Standard drawer type card slot, support 1.8V/3V nano card with built-in 15KV ESD protection |
|
|
|
L-CE version |
GSM/EDGE:900,1800MHz |
|
Software Parameter |
Protocol |
Modbus RTU, Modbus TCP, MQTT, HUAWEI Cloud, Alibaba Cloud, King Pigeon Cloud |
|
Protocol Conversion |
Support Modbus RTU to MQTT |
|
|
Indicator |
System running, alarm and RS485 data indicators |
|
|
User Configuration |
PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10 |
|
|
Slave Connection |
Max 48 slave devices can be connected. Up to 320 mapping register addresses (Bool, 16-bit, 32-bit, 64-bit) |
|
|
Transparent Transmission |
Support transparent transmission |
|
|
SMS Commands |
Support SMS commands |
|
|
Login Package |
Support custom login package |
|
|
Heartbeat Package |
Support custom heartbeat package |
|
|
Certification |
MTBF |
≥100,000 hours |
|
EMC |
EN 55022: 2006/A1: 2007 (CE &RE) Class B |
|
|
IEC 61000-4-2 (ESD) Level 4 |
||
|
IEC 61000-4-3 (RS) Level 4 |
||
|
IEC 61000-4-4 (EFT) Level 4 |
||
|
IEC 61000-4-5 (Surge)Level 3 |
||
|
IEC 61000-4-6 (CS)Level 4 |
||
|
IEC 61000-4-8 (M/S) Level 4 |
||
|
Others |
CE, FCC, ROHS |
|
|
Environment |
Working Condition |
-45～85℃, 5～95%RH |
|
Storage Condition |
-45～105℃, 5～95%RH |
|
|
Others |
Case |
Metal Case |
|
Size |
83mm×30mm×100mm |
|
|
Protection Grade |
IP30 |
|
|
Net Weight |
225g |
|
|
Mounting |
Wall-Mounting/DIN Rail Mounting |
