deNEXT-TGU8-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:

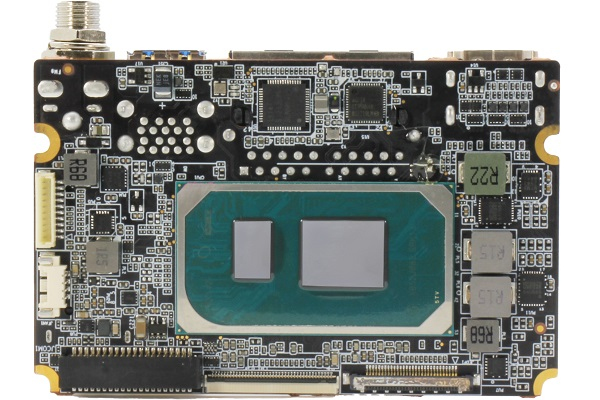

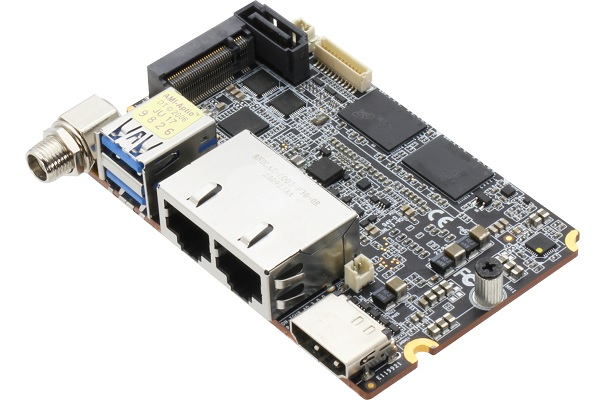

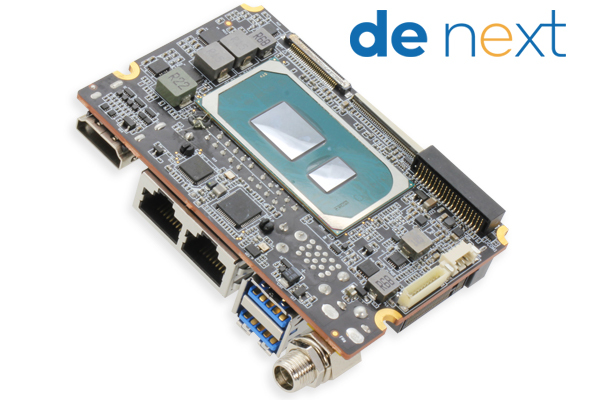

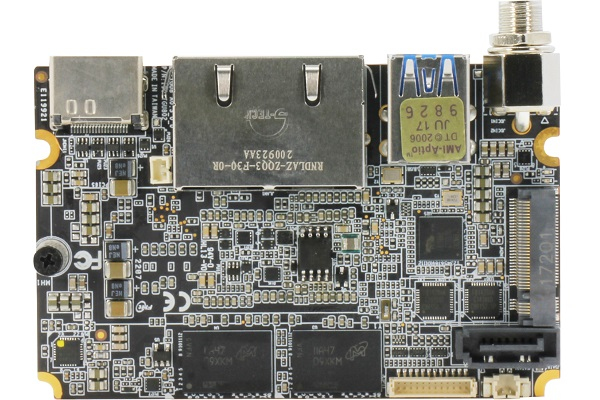

deNEXT-TGU8-A10-0003 is an industrial single board computer with 11th Generation Intel® Core™ i3 processor and versatile expansion features.
It provides energy-efficient computing capacity with its Intel® Core™ i3-1115G4 2 Core 3.00 / 4.10 GHz processor.
16 GB onboard RAM offers expandability with SATA x 1 storage option.

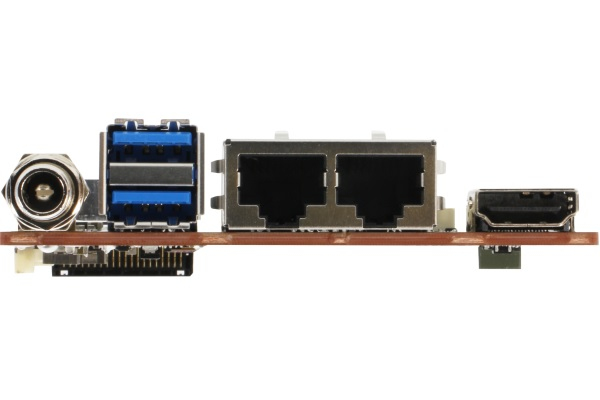

It offers connectivity options with 2.5 GbE x 1 | GbE x 1 LAN ports, USB 3.2 x 2, USB 2.0 x 4, HDMI 1.4bx 1 + eDP 1.4 x 1 video outputs.
It operates stably in the temperature range of 0°C ~ 60°C and is compatible with Windows 10, Linux Ubuntu 20.04 operating systems.
Features
| Product Code | deNEXT-TGU8-A10-0003 |
| Form Factor | 86 x 55mm Single Board |
| Card Size (mm) | 86 x 55 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i3-1115G4 2 Core 3.00 / 4.10 GHz | BM : 6100 |
| Processor [CPU] Family | Intel® Core™ i3 11. Gen |
| RAM [System Memory] | 16 GB Onboard |
| SSD/HDD/mSATA/M.2 | SATA x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 4 |
| RS 232/422/485 Serial Port | x 2 |
| Digital I/O | GPIO 8 Bit |
| Video Output | HDMI 1.4b x 1 + eDP 1.4 x 1 |
| Expansion Slot | M.2 M Key x 1 | FPC x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Opsiyonel) |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
