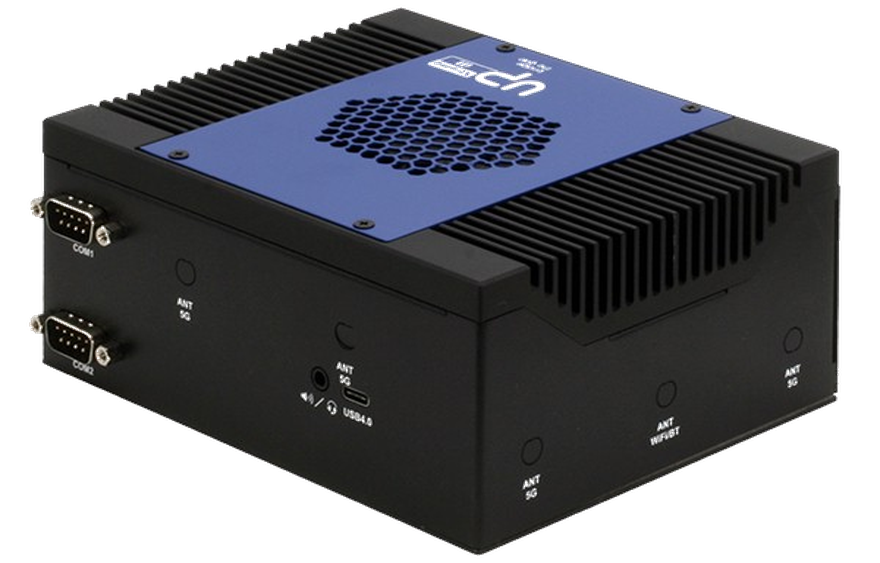

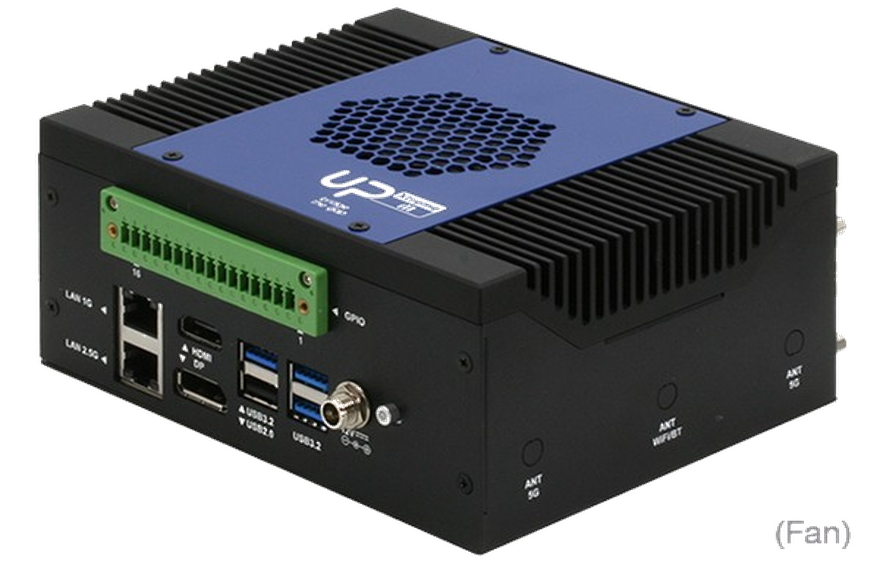

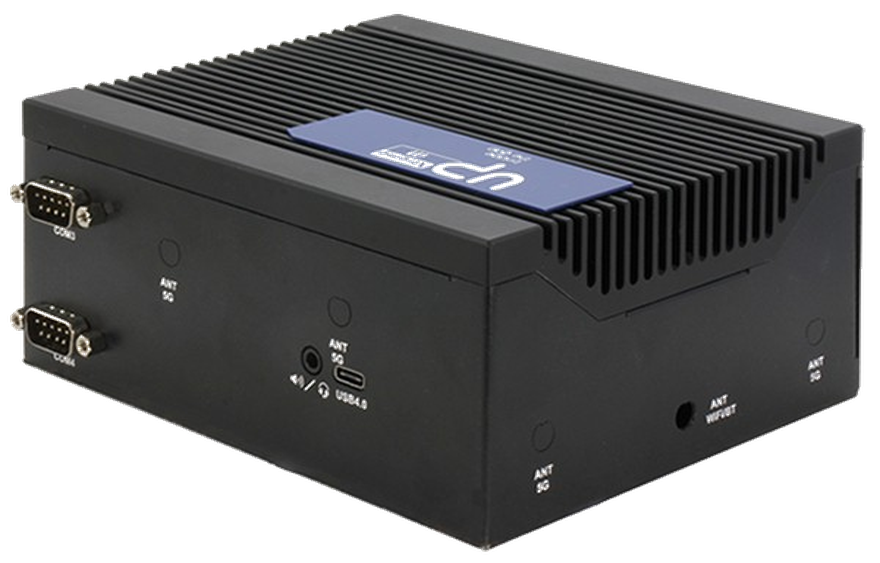

UPX-EDGEFL-TGLI7G7E-A10-0000
Brand: AAEON [An ASUS Co.]
Categories: UP XTREME I11 EDGE
UPX-EDGEFL-TGLI7G7E-A10-0000, UP Xtreme i11 EDGE offers high efficiency for industrial and AI applications with AI-Optimized performance.
It meets high performance requirements with its Intel® Core™ i7 processor and Intel® Iris® Xe graphics support.
It provides high-performance data processing with up to 64 GB DDR4 RAM support and a PCIe Gen 4 slot.
It offers fast data transfer and advanced connectivity options with USB 4.0 Type-C and 5G modules.
Provides reliable network connection with dual Ethernet ports, suitable for harsh environments.
UP Board UP 3G LINE
AAEON's UP series helps professional developers bring their ideas to life by offering innovative and reliable single board computers (SBCs) equipped with the latest Intel® technology.
The UP team aims to innovate through integrated solutions for various business models. It works closely with leaders in vertical markets to bring projects to mass production and encourages developers to share their ideas through its extensive online community.
The UP series is ideal for applications such as robotics, drones, machine vision, smart homes, e-learning, digital signage, smart vehicles and the Internet of Things. All UP products feature the same 40-pin HAT structure as the Raspberry Pi, allowing existing applications to be easily ported to the UP.
Features
| Product Code | UPX-EDGEFL-TGLI7G7E-A10-0000 |

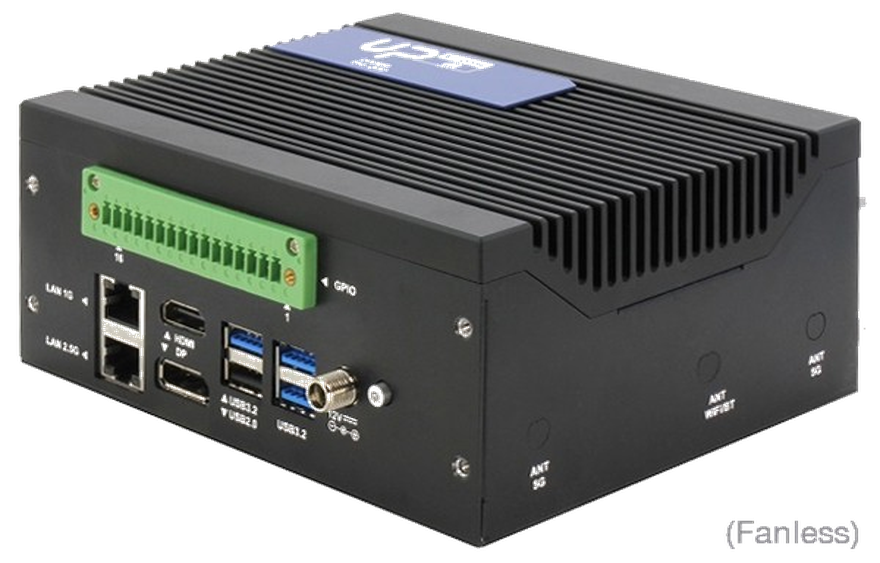

| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i7-1185GRE 4 Core 2.80 GHz | BM : 8170 |
| Processor [CPU] Family | Intel® Core™ i7 11. Gen |
| RAM [System Memory] | 64 GB |
| SSD/HDD/mSATA/M.2 | M.2 2280 M-Key x 1 for NVMe (PCIe x [2])SATA 6 GB/s x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 3 |
| USB 2.0 | x 1 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 + Line-In +1 |
| Expansion Slot | 40-pin GPIO x 1M.2 2230 E-Key x 1M.2 2280 M-Key x 1M.2 3052 B-Key x 1SATA 6Gb/sx 1PCIe [x4] Slot |
| Power Consumption | Balance: 32.4W, Max current: 66W |
| Mounting Type | VESA Mount/Wall Mount (Optional) |
| Supply voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 5.98” x 4.88” x 2.62” (152 x 123.9 x 66.5) |
| Weight (kg) | 2 |
| Certificates | CE/FCC Class A, RoHS Compliant, REACH |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
