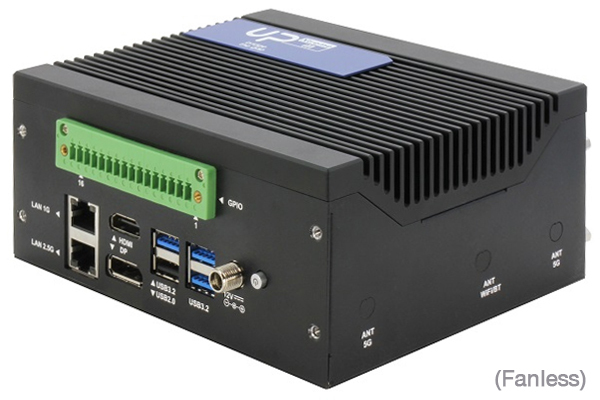

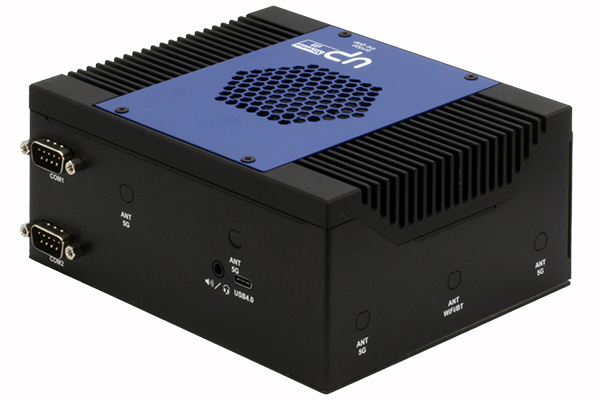

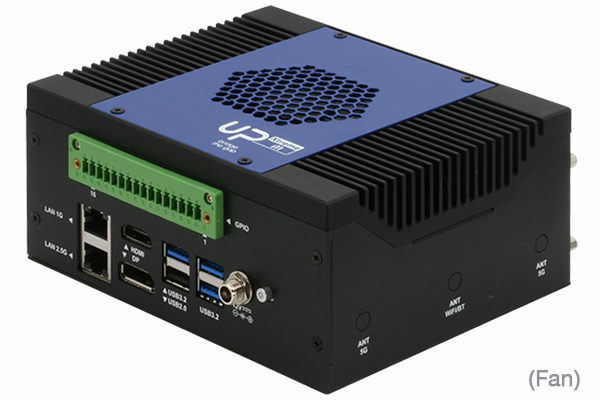

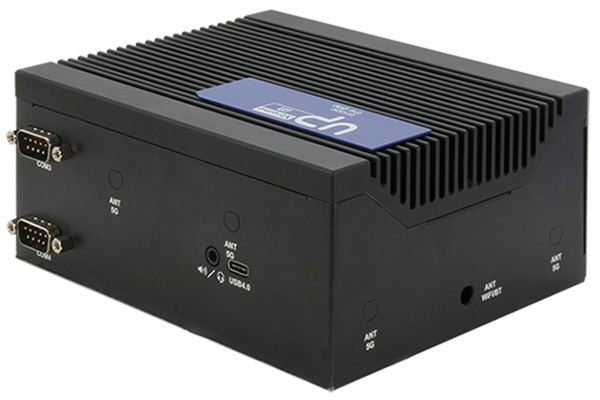

UPX-EDGE-TGLI7G7E-A10-0000, Designed for Industrial AI and EDGE computing applications, this system offers 20% higher performance.
64GB DDR4 memory and support for Intel® Iris® Xe graphics provide advanced visual processing.
It includes USB 4.0 and two Ethernet ports for high-speed data transfer.
It provides fast and reliable wireless communication with Wi-Fi 6 support.
With its compact and flexible design, it can be easily adapted to different environments.
UP Board UP 3G LINE
AAEON's UP series helps professional developers bring their ideas to life by offering innovative and reliable single board computers (SBCs) equipped with the latest Intel® technology.
The UP team aims to innovate through integrated solutions for various business models. It works closely with leaders in vertical markets to bring projects to mass production and encourages developers to share their ideas through its extensive online community.
The UP series is ideal for applications such as robotics, drones, machine vision, smart homes, e-learning, digital signage, smart vehicles and the Internet of Things. All UP products feature the same 40-pin HAT structure as the Raspberry Pi, allowing existing applications to be easily ported to the UP.
Product Code | UPX-EDGE-TGLI7G7E-A10-0000 |
Cooling | Fan |
Processor [CPU] | Intel® Core™ i7-1185GRE 4 Core 2.80 GHz | BM : 8170 |
Processor [CPU] Family | Intel® Core™ i7 11. Gen |
RAM [System Memory] | [Max 64 GB] |
SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 1 | SATA x 1 |
LAN/Ethernet | GbE x 2 |
USB 3.2 | x 2 |
USB 2.0 | x 1 |
RS 232/422/485 Serial Port | x 2 |
Video Output | HDMI 2.0 x 1 + DP x 1 + eDP x 1 |
Expansion Slot | M.2 M Key x 1 | M.2 E Key x 1 | M.2 B Key x 1 | PCIe [x4] x 1 | PCIe [x4]x |
Supply Voltage | DC 12 V |
Working temperature | 0°C ~ 60°C |
External Dimensions (mm) | 124 x 152 x 66.5 |
Certificates | CE | FCC |
Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
