UPE-EDGE-HBCR-A10-0400
Brand: AAEON [An ASUS Co.]
Categories: UP ELEMENT I12 EDGE

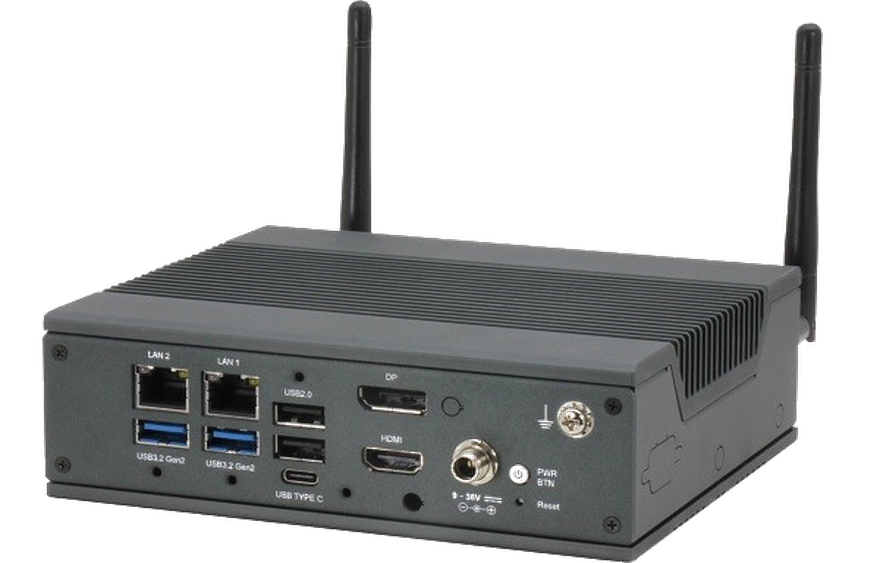

UPE-EDGE-HBCR-A10-0400 is an advanced edge computing solution powered by Intel® Core™ i5-1235U processor.
5G connectivity and Wi-Fi 6 enable high-speed data transfer.
16GB LPDDR5 memory and 12-Core processor complete demanding tasks quickly.
It offers advanced storage options via the M.2 slot.
Its operating temperature range is -10°C to 55°C and it is resistant to harsh industrial environments.
UP Board UP 3G LINE
AAEON's UP series helps professional developers bring their ideas to life by offering innovative and reliable single board computers (SBCs) equipped with the latest Intel® technology.
The UP team aims to innovate through integrated solutions for various business models. It works closely with leaders in vertical markets to bring projects to mass production and encourages developers to share their ideas through its extensive online community.
The UP series is ideal for applications such as robotics, drones, machine vision, smart homes, e-learning, digital signage, smart vehicles and the Internet of Things. All UP products feature the same 40-pin HAT structure as the Raspberry Pi, allowing existing applications to be easily ported to the UP.
Features
| Product Code | UPE-EDGE-HBCR-A10-0400 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i5-1235U 10 Core 1.30 / 4.40 GHz | BM : 13570 |
| Processor [CPU] Family | Intel® Core™ i5 12. Gen |
| RAM [System Memory] | 4 GB |
| SSD/HDD/mSATA/M.2 | 256 GB SSD |

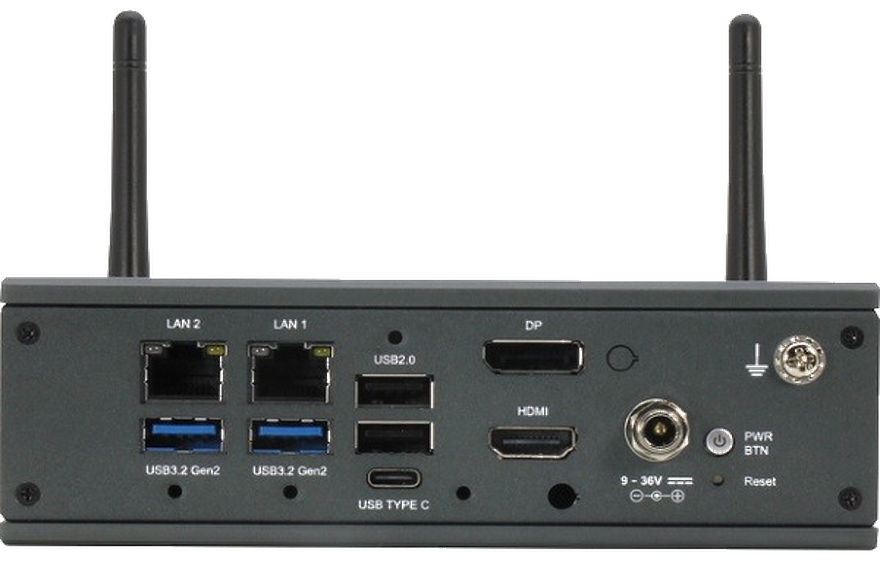

| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | x 2 |

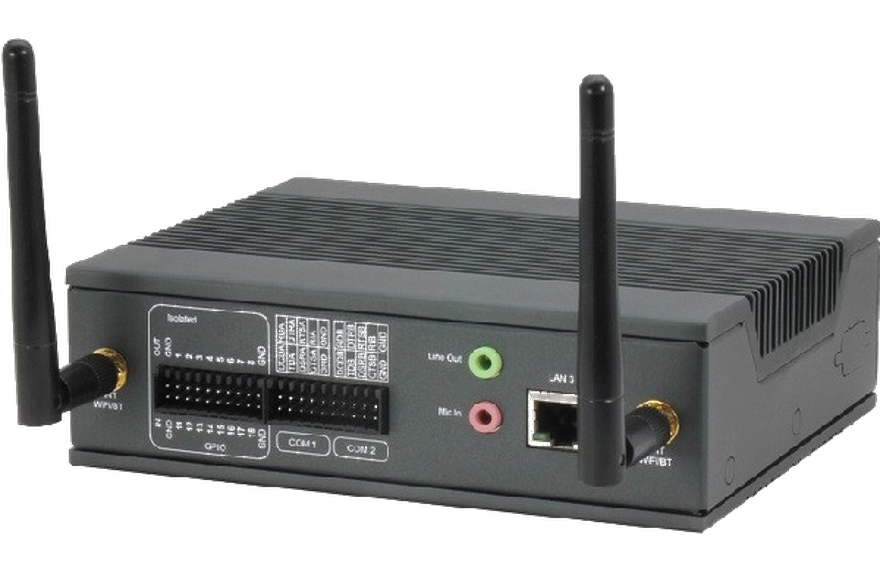

| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 1 |
| Audio Output | Mic-in x 1 + Line-out x 2 |
| Expansion Slot | M.2 3052 USB3.0/PCIe B-key x 1 (with Nano SIM slot)M.2 2280 SATA/PCIe Gen3.0 x2 M-key x 1M.2 2280 PCIe Gen4.0 x4 M-key x 2 |
| Wireless | Wi-Fi 6 |
| Bluetooth | BT module |
| Power Consumption | (Typical): Intel® Core™ i7-1255U, LPDDR5 5200MHz 32GB, 4.47A@ 12V (Maximum): Intel® Core™ i7-1255U, LPDDR5 5200MHz 32GB, 9.6A@ 12V |
| Mounting Type | VESA mount, Optional Wall mount kit |
| Supply voltage | DC 9-36 V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 5.98” x 4.9” x 1.8” (152 x 125 x 48 ) |
| Weight (kg) | 1 |
| Certificates | CE-RED/FCC Class A, RoHS Compliant |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
