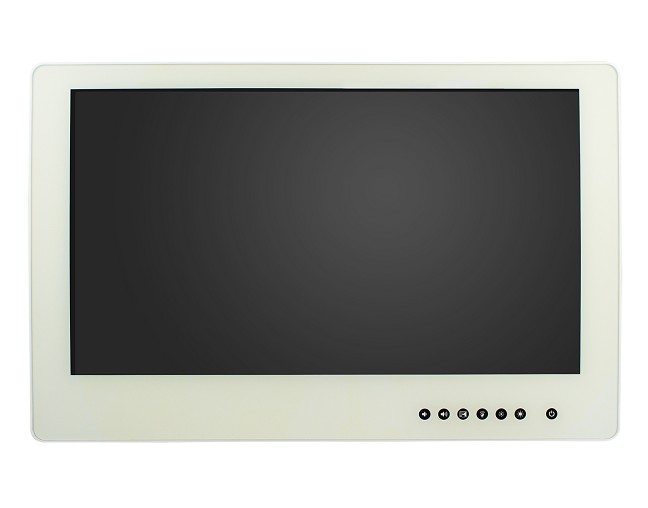

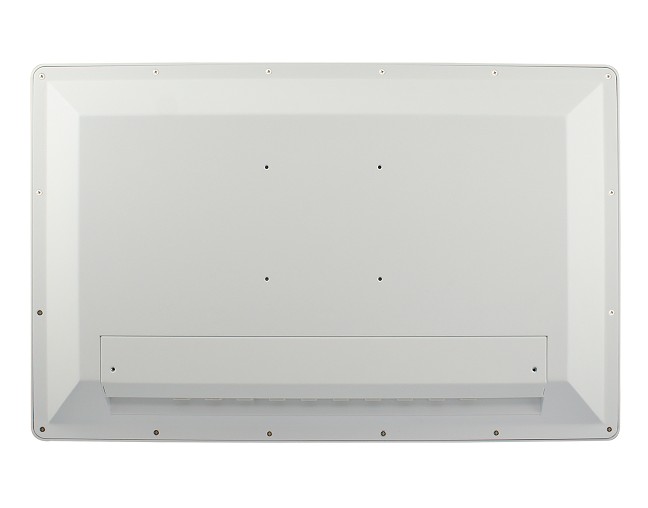

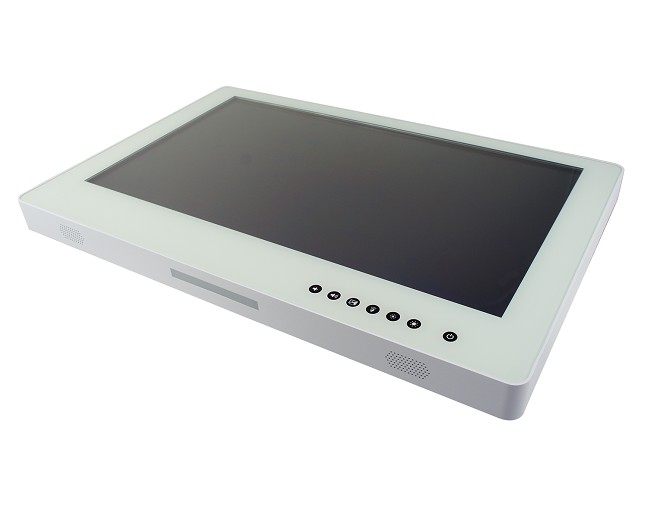

UMT-7211
Brand: IBASE
Categories:
Awarded Taiwan Excellence 2018 and COMPUTEX d&i Awards 2017, UMT-7211 is a 21.5-inch versatile medical panel computer designed to provide clinical data, medical records management or simply infotainment for hospital patient information systems.
It has IP65 and IP54 protection against particles and water.
There is an optional battery that supports at least 20 minutes of operating time to back up system data in the event of a power outage, and a capacitive control keypad for power and brightness-volume settings.
Ethernet, extra IO on the unit and a PCIe (x4) Expansion slot to connect customer desired peripherals.
UMT-7211 supports 7th to 6th Generation Intel® Core™ i5-6300U to 7300U processors and can be conveniently installed in patient rooms, wards, nurses' stations or waiting rooms.
It has a bezel-less design, an easy-to-read display, and a responsive touch interface.
Features
| Product Code | UMT-7211 |
| Screen size | 21.5" TFT LCD |
| Resolution | 1920 x 1080 |
| Screen Format | 16 | 9 |
| Brightness | 300 cd/m² |
| Contrast | 1000 | 1 |
| Viewing Angle | 178°(H) / 178°(V) |
| Touch Type | Projective Kapasitif [P-CAP] |
| Backlight Life (Min. Hours) | 30000 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i5-6300U 2 Core 2.40 GHz | BM : 3315 |
| Processor [CPU] Family | Intel® Core™ i5 6. Gen |
| RAM [System Memory] | 4 GB Standart DDR4L |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 | [Yükseltilebilir] |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 2 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 1 (4KV Isolated) |
| RS 232/422/485 Serial Port | x 1 Isolated |
| Video Output | DP x 1 |
| Expansion Slot | PCIe [x4] x 1 | PCIe [x4] x 1 |
| Mounting Type | VESA 75 | VESA100 | Panel Mount | Stand | Mounting Unit Not Included. |
| Supply Voltage | DC 9-19 V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 557 x 360 x 80 |
| Body Material | Aluminum |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
