TF-PFM-541I-A10
Brand: AAEON [An ASUS Co.]
Categories:

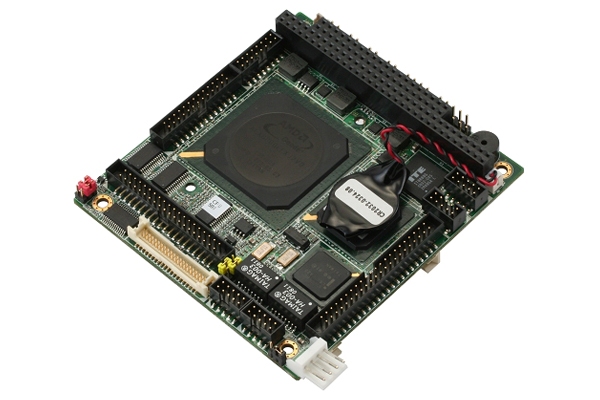

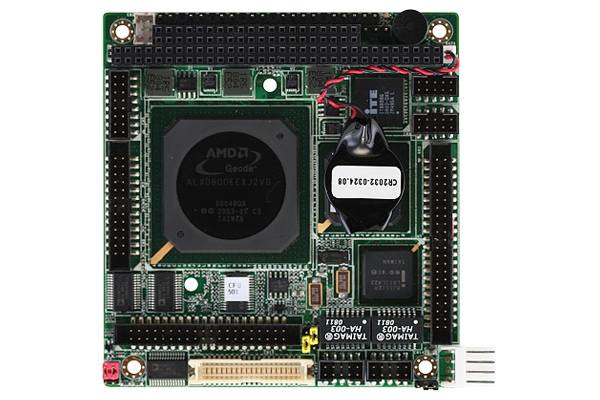

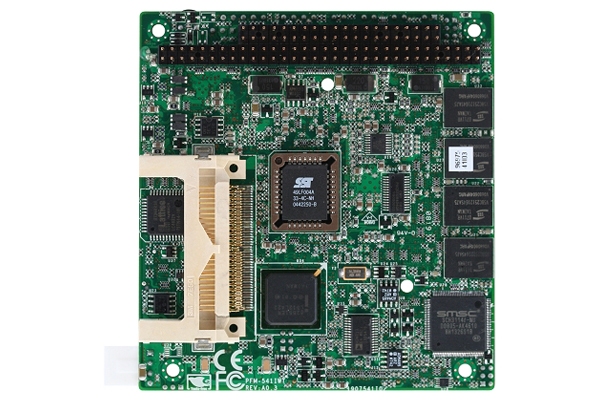

TF-PFM-541I-A10 is designed for high-efficiency industrial systems with PFM-541 motherboard, AMD® Geode™ LX800 processor and CS5536 chip.
Increases data speed with up to 2GB DDR333 system memory.
It offers expandability with USB 2.0 ports and RS-232/422/485 serial ports.
The PC/104 socket enables modular integration, increasing the functionality of the system.
This motherboard can operate with DC 5V and works safely between -20°C and 60°C.
Features
| Product Code | TF-PFM-541I-A10 |
| Form Factor | PC/104 |
| Card Size (mm) | 90 x 96 |
| Cooling | Without Fan |
| Processor [CPU] | AMD® GEODE™ LX800 2 Core 0.50 GHz | BM : 252 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 2 GB] |
| SSD/HDD/mSATA/M.2 | EIDE x 1 |
| LAN/Ethernet | FE x 2 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 3 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | CRT x 1 |
| Expansion Slot | PC/104 x 1 |
| Supply Voltage | DC 5 AT/ATX V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
