TF-PFM-540I-B10
Brand: AAEON [An ASUS Co.]
Categories:

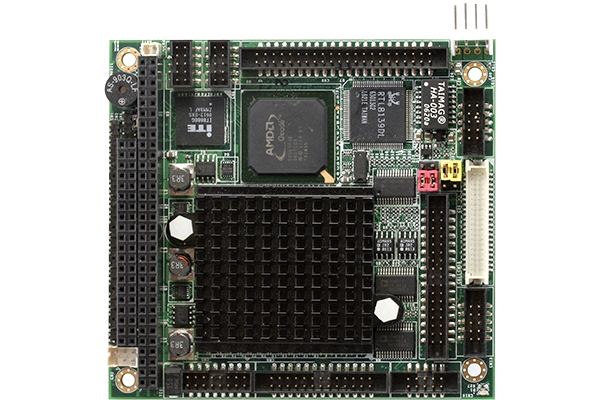

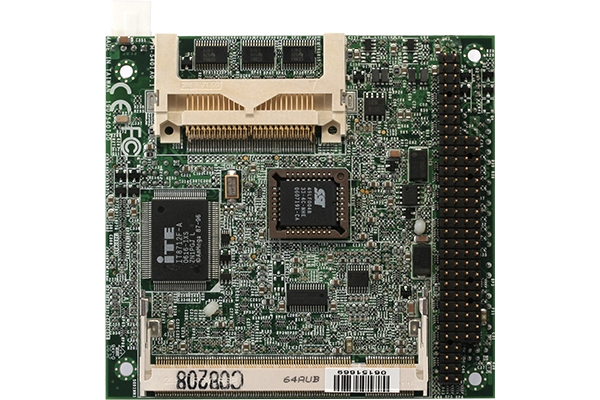

TF-PFM-540I-B10, PFM-540 rev.b is a motherboard designed for low-cost and high-performance industrial solutions.
It supports up to 512MB of DDR333 memory with the AMD® Geode™ LX800 processor.
It provides extensive connectivity with a 10/100Base-TX Ethernet port and four USB 2.0 ports.
PC/104 expansion slot can be customized according to user needs.
This motherboard can be used safely in the temperature range of 0°C to 60°C, making it ideal for industrial environments.
Features
| Product Code | TF-PFM-540I-B10 |
| Form Factor | PC/104 |
| Card Size (mm) | 90 x 96 |
| Cooling | Without Fan |
| Processor [CPU] | AMD® GEODE™ LX800 2 Core 0.50 GHz | BM : 252 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 1 GB] |
| SSD/HDD/mSATA/M.2 | EIDE x 1 | CFast x 1 |
| LAN/Ethernet | FE x 1 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 3 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | CRT x 1 |
| Expansion Slot | PC/104 x 1 |
| Supply Voltage | DC 5 AT/ATX V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
