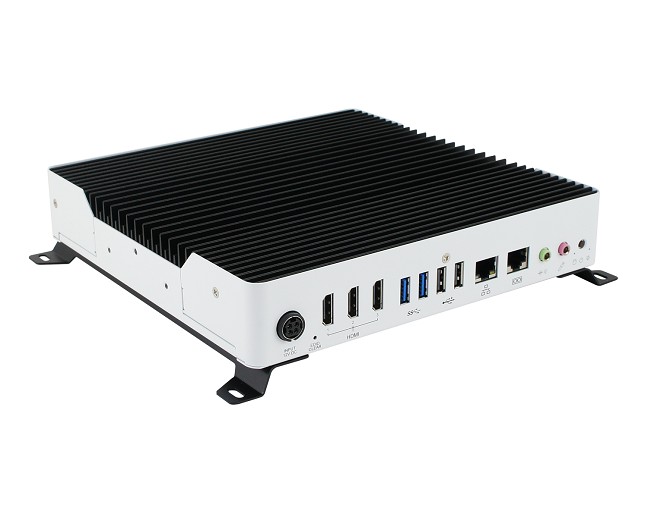

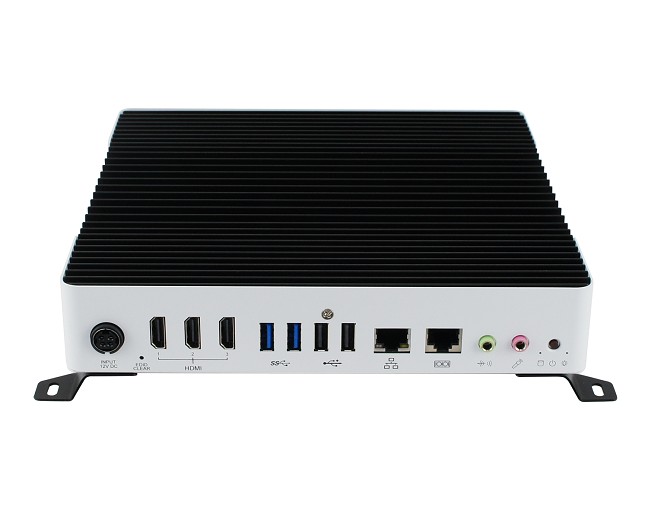

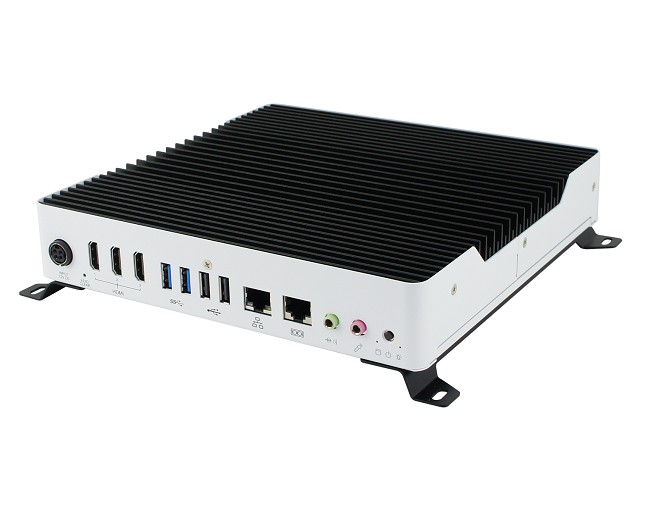

SI-623-N

Brand: IBASE
Categories: Book-Size Signage Player

The SI-623-N signage player is based on 6th and 7th Generation Intel® Core™ processors and supports resolutions up to 4K (3840 x 2160) on each display channel. The slim and powerful SI-623-N comes with a pair of wall mounting brackets and fits conveniently behind multiple displays or video walls in any market, such as hospitality, retail and public transportation. It is powered by integrated Intel HD Graphics 530 with 1x HDMI 2.0 and 2x HDMI 1.4 display interfaces to deliver high-level graphics performance and deliver a more engaging visual experience for viewers.

SI-623-N features Intel® AMT 11.0 and on/off iSMART technology for automatic scheduling and power resume functions designed to help system administrators remotely manage and secure the platform. On-screen zoom issues

The SI-623-N features abundant storage and I/O connectivity, including 2x DDR4 SO-DIMM sockets up to 32GB, 1x RJ-45 for Gigabit LAN, 1x RJ45 for RS-232, 2x USB 3.0, 2x USB 2.0. It is equipped with 1x M.2 B key, 1x M.2 M key and 1x 2 storage.


Features


Product Code SI-623-N
Processor [CPU] Intel® Core™ i7-6822EQ 2 Core 2.00 GHz | BM : 3600
Processor [CPU] Family Intel® Core™ i7 6. Gen
RAM [System Memory] [Max 32 GB]
SSD/HDD/mSATA/M.2 2.5" SATA 128 GB
LAN/Ethernet GbE x 2
USB 3.0 x 2
USB 2.0 x 2
RS 232 Serial Port x 1
Video Output HDMI x 3
Expansion Slot M.2 B Key x 1 | Full Size Mini-PCIe x 1
Mounting Type wall mount
Supply Voltage DC 12 V
Working temperature 0°C ~ 45°C
External Dimensions (mm) 215.6 x 215.6 x 40
Body Material Aluminum
Certificates CE | FCC
Supported Operating Systems Windows®10 | Linux | Operating system sold separately from license.
