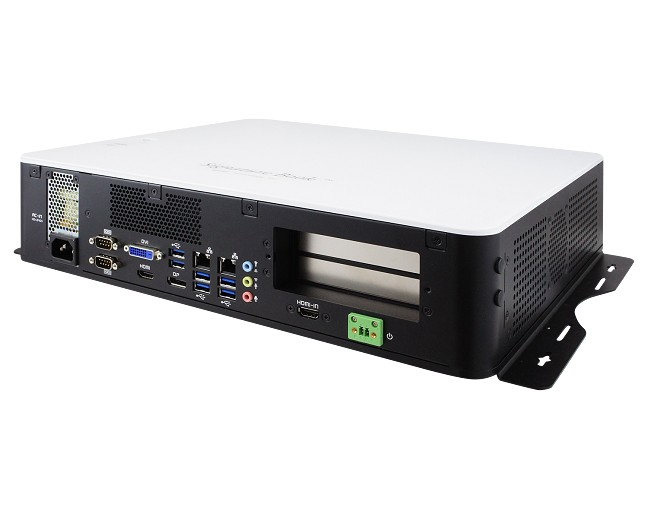

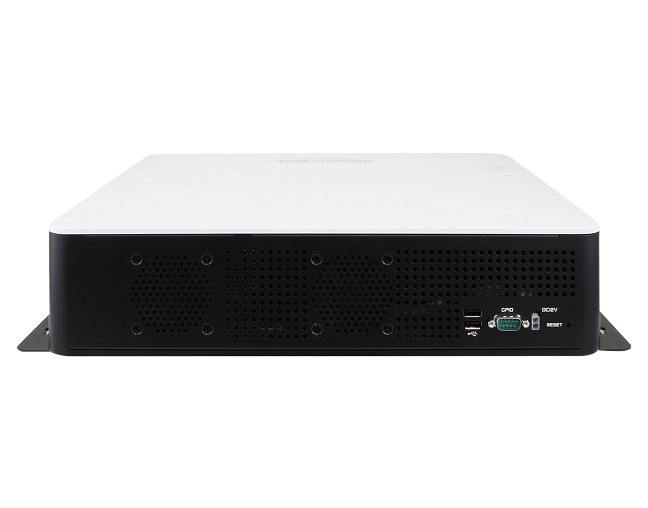

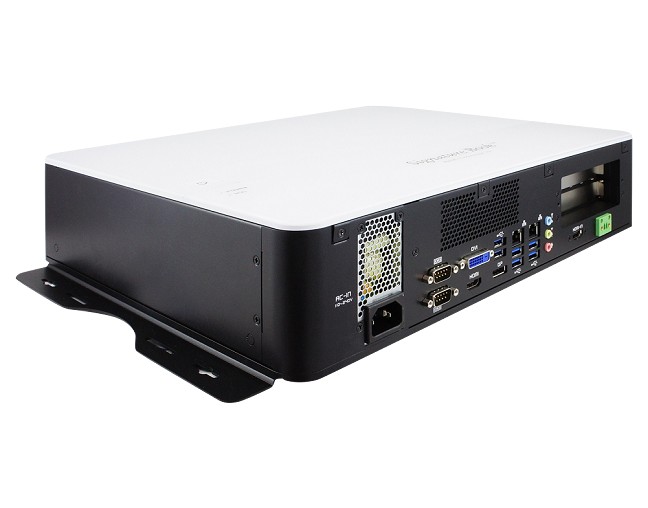

SI-61S is an ultra-high-resolution expandable video wall player specifically developed for multi-screen video wall signage environments. It is equipped with Intel's latest 7th Generation desktop processor and can be integrated with one Matrox, AMD® or NVIDIA®PCIe (x16) or two PCIe (x8) graphics cards to play stunning contents at different high resolutions and fascinate and impress consumers with your display layouts.
Taking the most commonly used 3x3 video wall as an example, the SI-61S with a Matrox C900 PCIe (x16) graphics card with nine display outputs can play ultra-high-definition images and videos at up to 6K x 3K resolution. Very large 6x3 video wall
The system includes two low-profile Mini-PCIe slots with both Full Size and Half Size slots. WiFi, Bluetooth, 4G LTE or video capture cards can be installed to increase the convenience of network connection. Flexible video wall configuration and solution
SI-61S features remote hardware monitoring of system temperature, voltage, and fan speed, contributing to lower maintenance costs, improved system stability, and 24/7 long-term stable operation. The system's product life cycle is more than seven years
Product Code | SI-61S |
Processor [CPU] | Intel® Core™ i7-7700 4 Core 3.60 GHz | BM : 8650 |
Processor [CPU] Family | Intel® Core™ i7 7. Gen |
RAM [System Memory] | [Max 32 GB] |
SSD/HDD/mSATA/M.2 | 2.5" SATA 128 GB |
LAN/Ethernet | GbE x 2 |
USB 3.0 | x 6 |
USB 2.0 | x 2 |
RS 232 Serial Port | x 2 |
Video Output | HDMI x 2 DVI-I x 1 + DP x 1 |
Expansion Slot | Full Size Mini PCIe x 1 |
Mounting Type | Standard system bracket |
Supply Voltage | AC 110-240 V |
Working temperature | 0°C ~ 45°C |
External Dimensions (mm) | 436 x 345 x 93 |
Body Material | Aluminum |
Certificates | CE | FCC |
