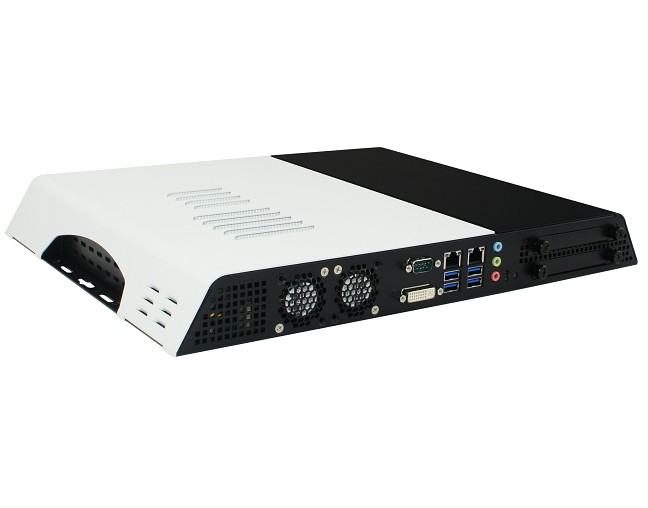

SI-60E

Brand: IBASE
Categories:

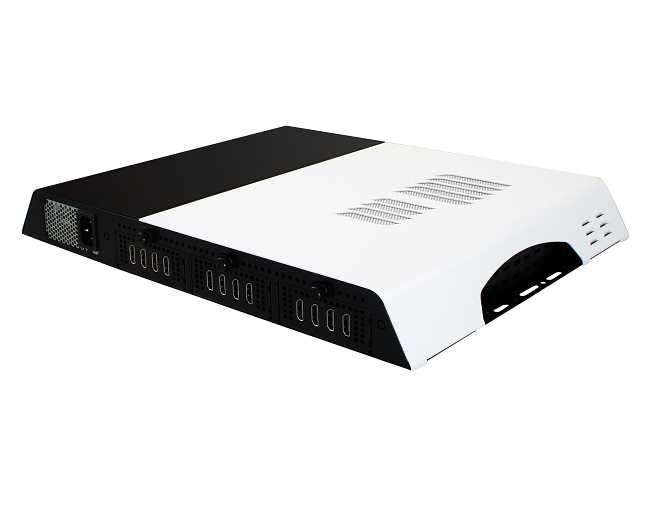

Winner of the 2016 Taiwan Excellence Award and 2015 Best Choice Award, SI-60E is a super high-resolution 8K/12K innovative video wall player with twelve HDMI outputs, specifically designed for multi-screen video wall broadcast applications. Built with IBASE Multi-Screen Matrix Technology, SI-60E comes with flexible TV wall configuration and resolution settings, hardware EDID simulation and frame adjustment features. The system is the thinnest and lightest 12x HDMI output signage player in the industry to date. It not only has a stylish and compact design, but also delivers unparalleled 3D graphics performance supporting video wall resolutions of 7680 x 3600 (4x3 arrangement) or 11520 x 2400 (6x2).

The system also offers various wireless communication module Extensions including WiFi, Bluetooth and 3.5G/LTE, making it suitable for use in different areas. SI-60E offers world-class digital solutions from leading providers such as SCALA, Omnivex, DISE and PDC.


Features


Product Code SI-60E
Processor [CPU] Intel® Core™ i7-4770S 4 Core 3.10 GHz | BM : 9345
Processor [CPU] Family Intel® Core™ i7 4. Gen
RAM [System Memory] 32 GB Standart
SSD/HDD/mSATA/M.2 2.5" SATA 128 GB
LAN/Ethernet GbE x 2
USB 3.0 x 4
RS 232 Serial Port x 1
Video Output HDMI x 1 + 2
Expansion Slot Full Size Mini PCIe x 1
Supply Voltage AC
Working temperature 0°C ~ 45°C
External Dimensions (mm) 412 x 310 x 47
Body Material Aluminum
Certificates CE | FCC
Supported Operating Systems Linux
