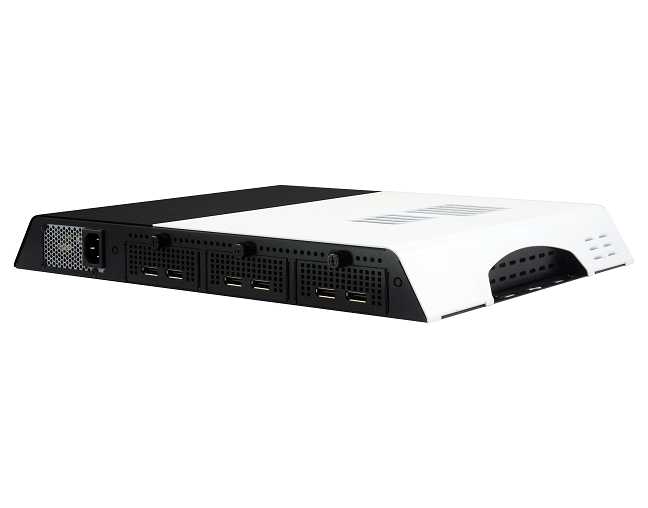

The SI-606 six (6) DP1.2 digital signage players are based on the AMD® Radeon™ E8860 GPU featuring a 2GB high-speed GDDR5 frame buffer, delivering 2x the 3D performance of the Radeon E6760 GPU. Driving six independent displays supporting AMD® Eyefinity Technology, the SI-606 uses a 4th Generation Intel® Core™ i7-4770S Quad Core 3.1GHz with LGA1150 processor with 8MB of pre-RAM (memory).
Supporting 5.4 Gbps DP 1.2 (4K resolution at 60 Hz) with multiple streaming (MST), the SI-606 is perfect for transportation, hospitality and corporate environments to deliver customized and dynamic messages that convey brand information as well as contextual information.
The SI-606 comes with IBASE's iSMART Sole Technology for power on/off scheduling, power sustain functions, low temperature protection and intelligent OS recovery.
Product Code | SI-606 |
Processor [CPU] | Intel® Core™ i7-4770S 4 Core 3.10 GHz | BM : 9345 |
Processor [CPU] Family | Intel® Core™ i7 4. Gen |
RAM [System Memory] | 32 GB Standart |
SSD/HDD/mSATA/M.2 | 2.5" SATA 128 GB |
LAN/Ethernet | GbE x 2 |
USB 3.0 | x 4 |
RS 232 Serial Port | x 1 |
Video Output | DVI-I x 1 + DP x 6 |
Expansion Slot | Full Size Mini PCIe x 1 |
Mounting Type | Standard system bracket |
Supply Voltage | AC |
Working temperature | 0°C ~ 45°C |
External Dimensions (mm) | 412 x 310 x 47 |
Body Material | Aluminum |
Certificates | CE | FCC |
Supported Operating Systems | Linux |
