SI-313-QC
Brand: IBASE
Categories:

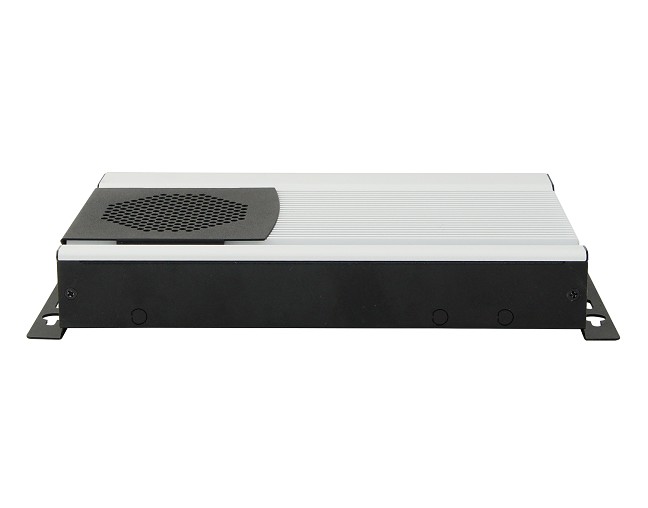

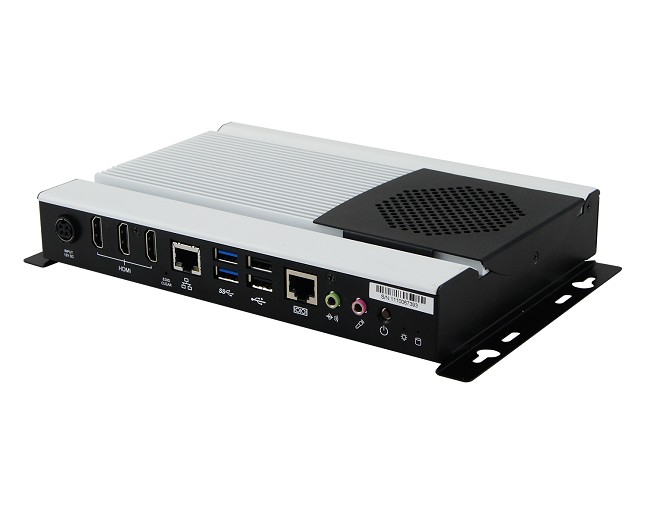

The SI-313 3x 4K digital signage player is powered by a 3rd Generation AMD® Embedded R-series APU (Codename: Merlin Falcon) integrated with discrete-class AMD® Radeon™ HD graphics. Using AMD® Eyefinity technology, the SI-313 can be configured to drive a video wall consisting of three large HDMI displays at 4K resolution per display.
Featuring triple HDMI 2.0 and hardware EDID emulation, the SI-313 digital signage system is especially suitable for presenting brand information and high-volume information to target audiences in airports and shopping malls.
The system utilizes IBASE's unique iSMART intelligent energy saving and iDOC remote network monitoring technologies, providing users with advanced functions such as automatic power on/off scheduling, system temperature/Fan/voltage monitoring functions.
Features
| Product Code | SI-313-QC |
| Processor [CPU] | AMD® RX-421BD 4 Core 2.10 / 3.40 GHz | BM : 3300 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | 64 GB mSATA |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x 2 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 1 |
| Video Output | HDMI x 3 |
| Expansion Slot | M.2 B Key x 1 | Full Size Mini-PCIe x 1 |
| Mounting Type | Standard system bracket |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 216 x 150 x 33 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
