SI-08
Brand: IBASE
Categories:
Fanless Embedded system designed for digital signage applications. SI-08 is powered by a high-efficiency yet low-power G-Series APU (Accelerated Processing Unit) with a dedicated class DirectX® 11 capable GPU and A50M fusion control hub.
Combining a Dual Core x86 processor with an 80 Core graphics engine, the SI-08 can support resolutions up to 2560 x 1600 with the latest graphics APIs including DirectX 11 and OpenGL 4.0. It also supports H.264 AVC, VC-1 (WMV9), MP

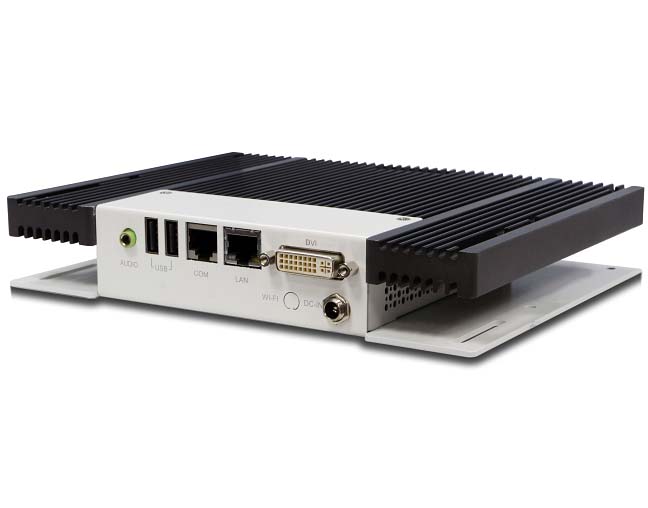

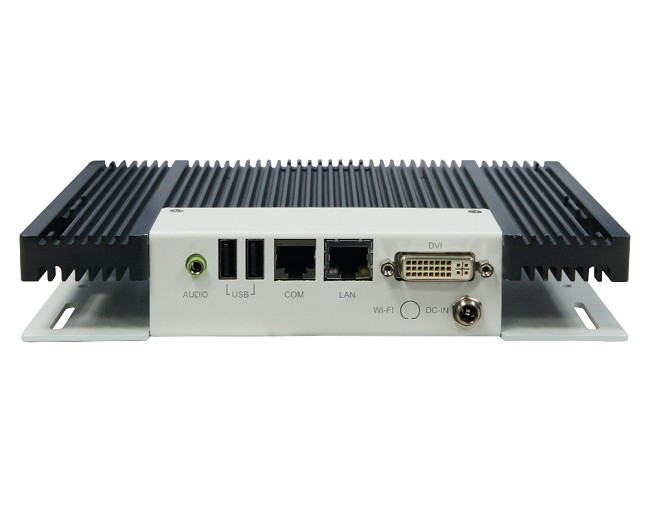

The SI-08 can be wall-mounted or used as a desktop system. Networking is provided by an integrated gigabit Ethernet port and optional 802.11n WiFi connectivity. Dual USB 2.0 interfaces, analog audio and an RS-232 Serial Port complete the I/O set. S
Features
| Product Code | SI-08 |
| Processor [CPU] | AMD® T56N APU 2 Core 1.70 GHz |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 4 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA320 GB |
| LAN/Ethernet | GbE x 1 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 1 |
| Video Output | HDMI x 1 + VGA x 1 + DVI-D x 1 |
| Expansion Slot | Half Size Mini PCIe x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 40°C |
| External Dimensions (mm) | 200 x 150 x 34.8 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
