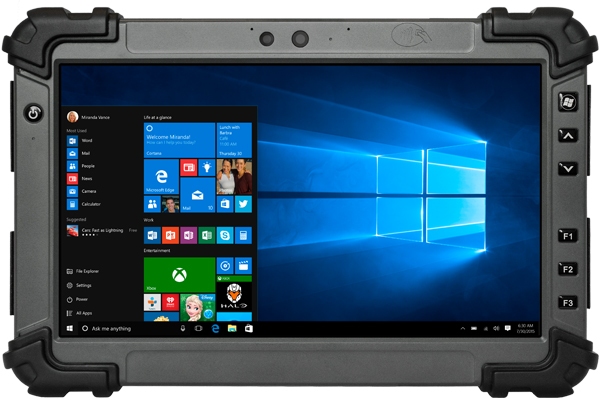

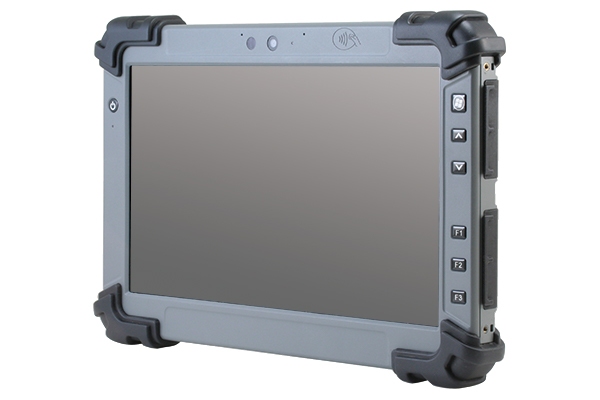

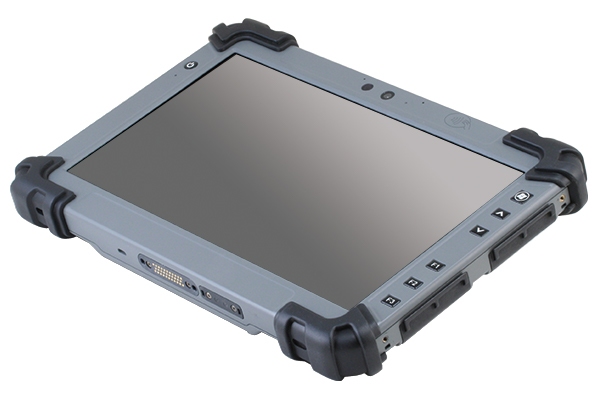

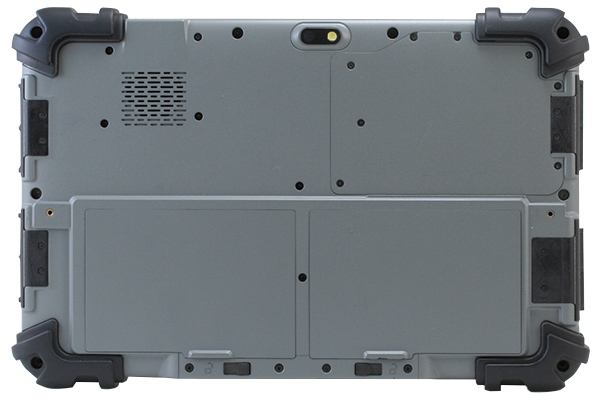

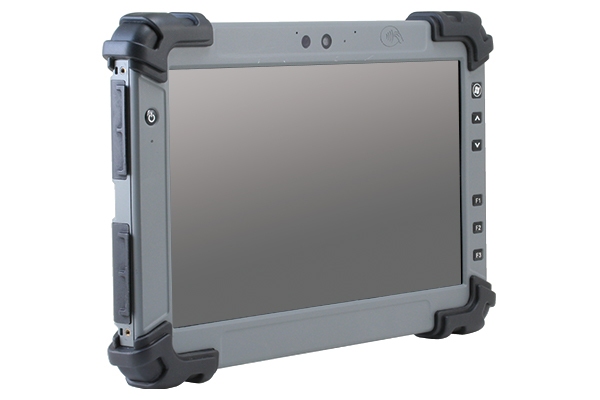

RTC-1200-R1011
Brand: AAEON [An ASUS Co.]
Categories:
With its 11.6" display and Intel® Celeron® 3965U processor, the RTC-1200-R1011 delivers robust performance in harsh industrial environments.
Projected capacitive (P-CAP) touch screen provides user interaction with high precision.
Various connectivity options offer expandability with USB 3.2, RS-232/422/485 ports and HDMI.
Provides extended temperature resistance with an operating temperature range of -20°C to 60°C.
Ergonomically designed accessories improve user experience and provide ease of carrying.
Features
| Product Code | RTC-1200-R1011 |
| Screen size | 11.6" TFT LCD |
| Resolution | 1920 x 1080 |
| Screen Format | 16 | 9 |
| Brightness | 300 cd/m² |
| Contrast | 1010 | 1 |
| Touch Type | Projective Kapasitif [P-CAP] |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Celeron® 3965U 2 Core 2.20 GHz | BM : 1135 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 4 GB 4 GB DDR3 |
| SSD/HDD/mSATA/M.2 | M.2 SSD 64 GB |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | 1x USB Type A (+) 1x USB Type C |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 1 |
| LVDS | 24 bit 1CH x 1 |
| Audio Output | Line-out x 1 |
| Expansion Slot | Micro SD x 1 |
| Wireless | 802.11 |
| Bluetooth | BT4.1 |
| Front camera | 2 MP |
| Rear Camera | 5 MP |
| 4G - LTE | Opsiyonel |
| GPS | (+) |
| G-Sensor | (+) |
| 2D/QR Code Reader | - |
| Light Sensor x 1 | (+) |
| E-Compass | (+) |
| Gyro-Sensor | (+) |
| Battery | 14.4V/2270mAh/32.7W |
| placement | Opsiyonel |
| Supply Voltage | DC 9-19 V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 310 x 200 x 24.5 |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC | MIL-STD-810G | TELEC |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
