RT-TKS-CML-A20-001
Brand: AAEON [An ASUS Co.]
Categories:

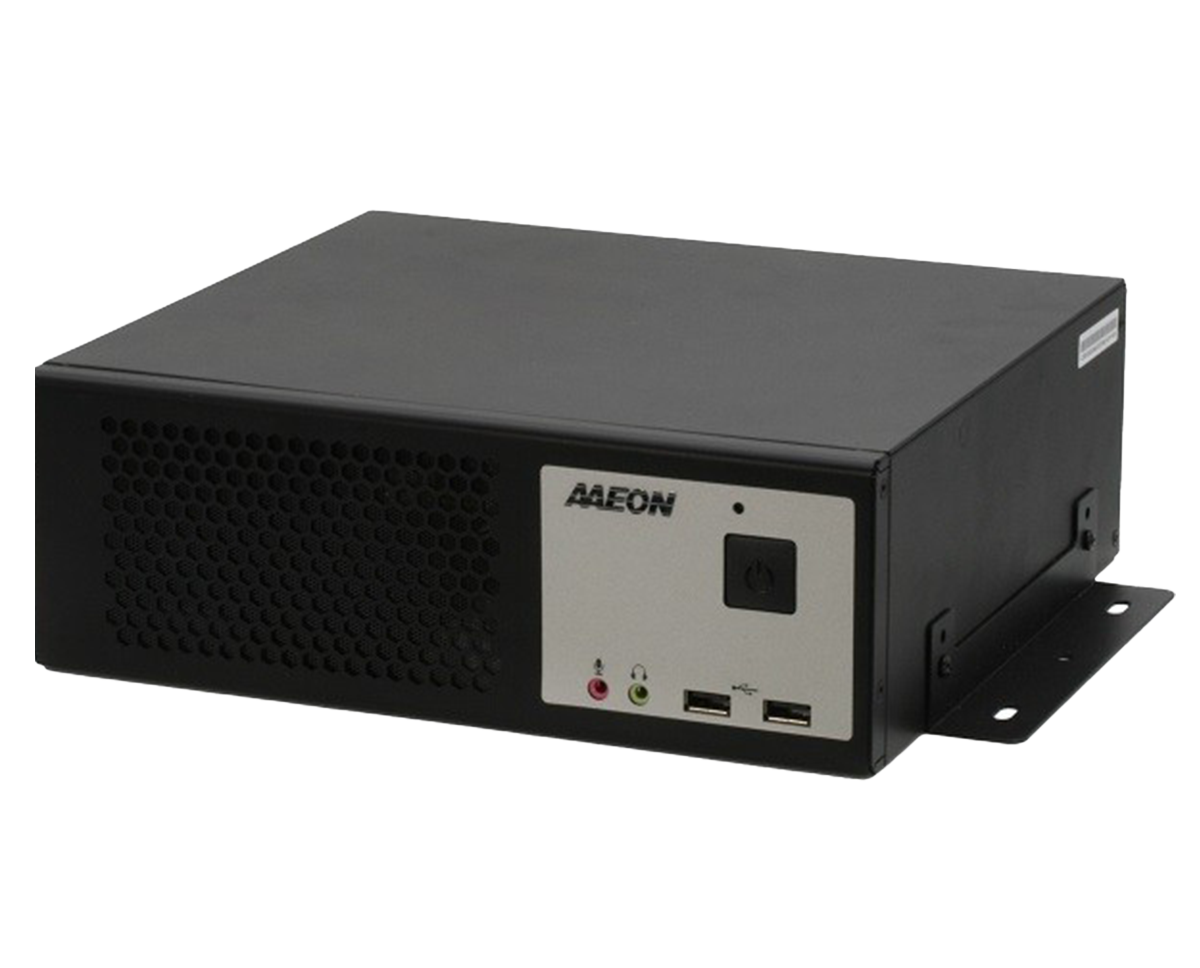

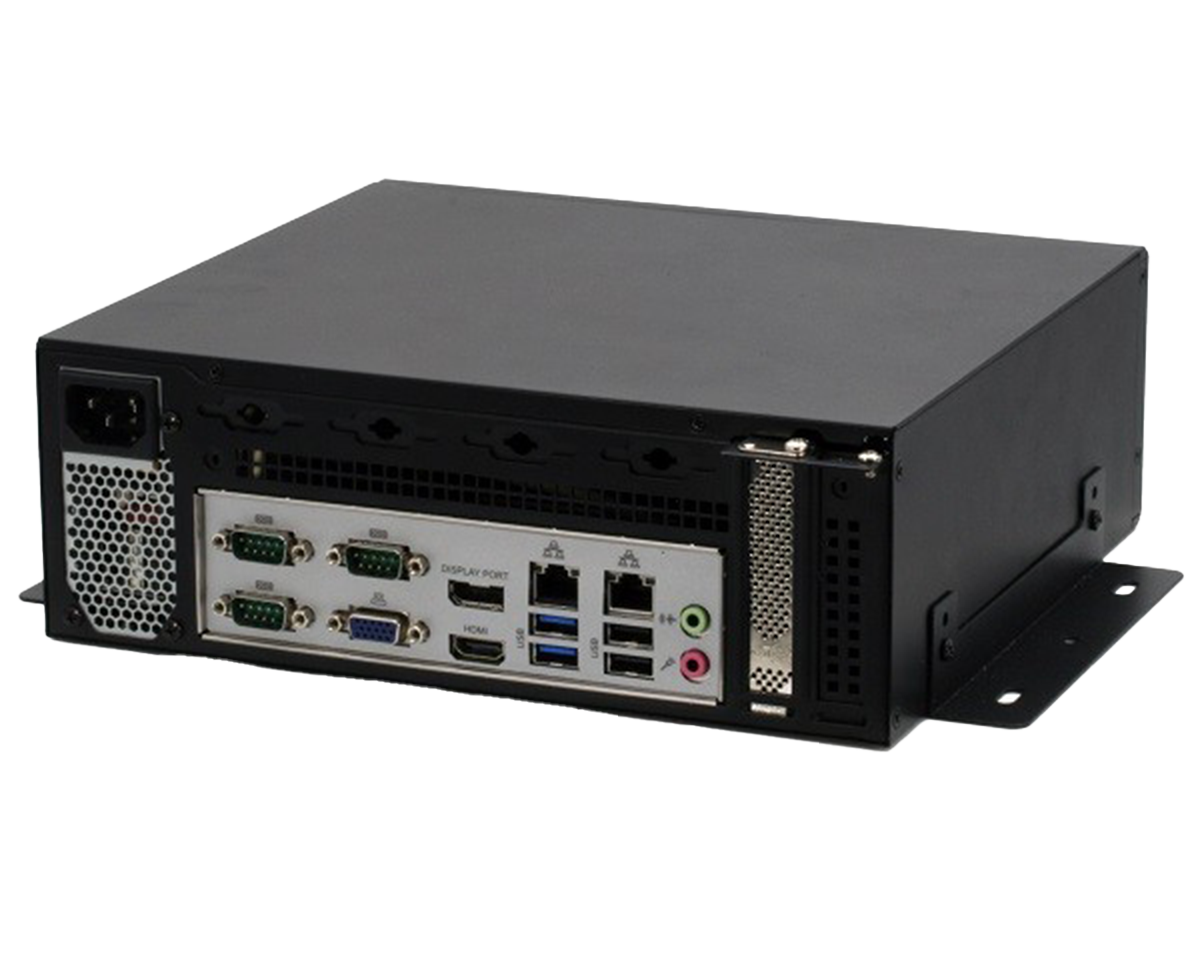

RT-TKS-CML-A20-001 is a compact embedded computer equipped with H410 chipset, providing a reliable solution for industrial and embedded applications.
It provides fast switching between multitasking with support for up to 64GB DDR4 memory.
It is compatible with projects that require visual outputs with dual screen support.
It offers expandable storage with M.2 slot and SATA3 support.
High-speed data transfer and device integration are provided with USB 3.2 and Gigabit Ethernet ports.
Features
| Product Code | RT-TKS-CML-A20-001 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| SSD/HDD/mSATA/M.2 | 2.5” SATA x 2 M.2 2280 M-Key slot x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | Low-Profile PCIe Slot x 1 |
| Mounting Type | Wallmount |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 255 x 88 x 215 |
