RT-623R-C246-1
Brand: AAEON [An ASUS Co.]
Categories:

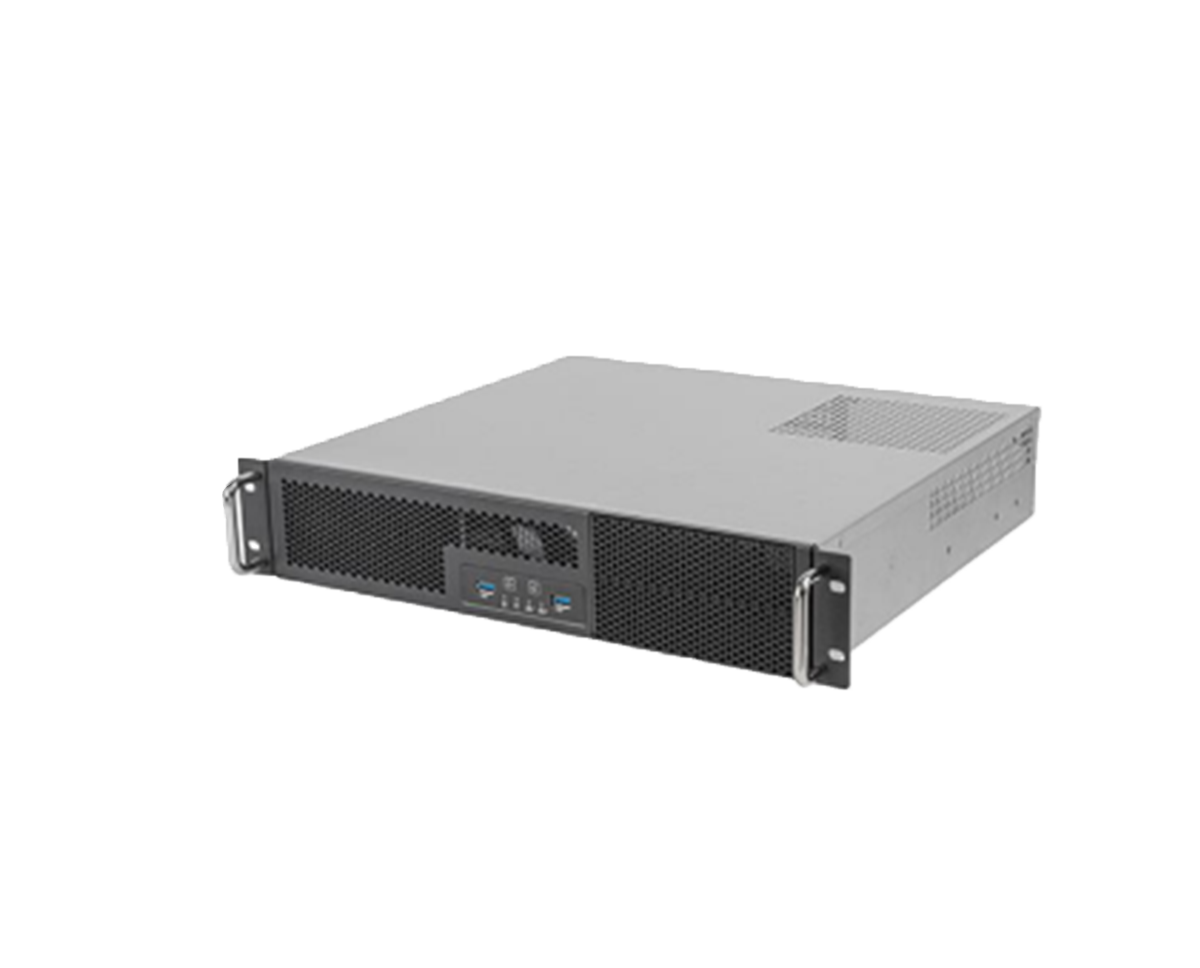

RT-623R-C246-1, Industrial server chassis, suitable for multimedia and automation applications with high connectivity options.
Provides powerful computing capabilities, compatible with 8th and 9th Generation Intel® Core™ processors.
It offers independent display outputs with dual HDMI and DP connections.
Easily connects peripherals with 6 USB 3.2 ports and PCIe expansion slots.
It includes dual Gigabit Ethernet ports and iAMT support for efficient network management.
Features
| Product Code | RT-623R-C246-1 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | DDR4 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 (6.0 GB/s) ports x 4 | support RAID 0/1/5/10 |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | x 6 |
| RS 232 Serial Port | x 5 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 2 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | PCIe 3.0[x16] Slot x 1, PCIe 3.0[x4] Slot (open edge) x 2, PCIe 3.0[x1] Slot (open |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 430 x 88.5 x 400 |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
