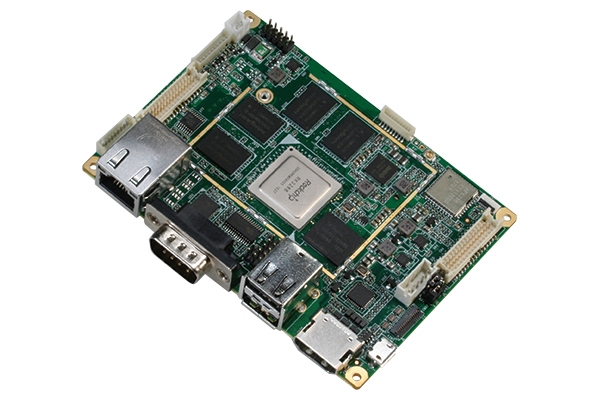

RICO-3288B-A10-0001
Brand: AAEON [An ASUS Co.]
Categories:
RICO-3288B-A10-0001, industrial motherboard designed in compact PICO-ITX form factor, is equipped with a powerful Rockchip RK3288 ARM® Cortex™ A17 processor capable of streaming 4K Ultra HD video.
It has a wide range of expansion slots including USB 2.0, Micro USB OTG, 4G LTE and SD IO connections.
It is pre-installed with Android 6.0 and is ready to use with its flexible and customizable structure.
HDMI 2.0 provides high-definition video broadcasting with support for 60Hz, 4K video decoding.
It offers a durable operating performance with DC 12V supply voltage and a temperature range of -20°C to 60°C.
Features
| Product Code | RICO-3288B-A10-0001 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 100 x 72 |
| Processor [CPU] | ARM® 3288 Cortex® A17 4 Core 2.10 / | BM : 710 |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 2 GB Onboard |
| SSD/HDD/mSATA/M.2 | 16 GB eMMC |
| LAN/Ethernet | GbE x 1 |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 1 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Android 6.x |
