PICO-V2K4-SEMI-A11-S002
Brand: AAEON [An ASUS Co.]
Categories: Pico-ITX

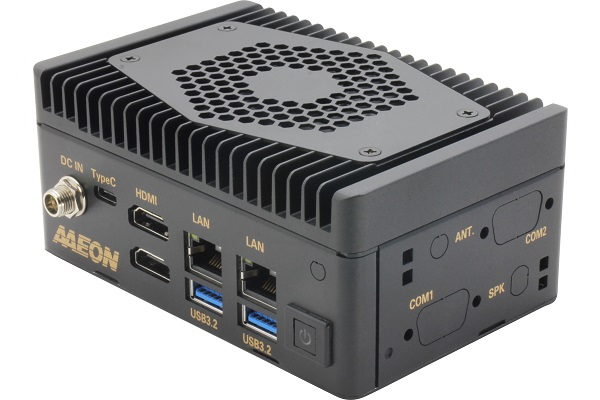

PICO-V2K4-SEMI-A11-S002, PICO-V2K4-SEMI with AMD® RYZEN™ V2000 processor is a compact and energy efficient Mini PC platform.
Offering support for up to 16 threads, this device provides high performance with 7 nm process technology.
Equipped with LPDDR4x memory and AMD® Radeon™ graphics.
It offers wide network options with 2.5 GbE and GbE ports.
It provides flexibility with expandability features such as PCIe, mSATA and M.2 slot.
Features
| Product Code | PICO-V2K4-SEMI-A11-S002 |
| Form Factor | PICO-ITX |
| Card size (mm) | 100 x 72 |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | AMD® RYZEN™ V2718 8 Core 1.70 / 4.20 GHz | BM : 16070 |
| Processor [CPU] family | AMD® RYZEN™ |
| RAM [System Memory] | 16 GB |
| SSD/HDD/mSATA/M.2 | Onboard NVME SSD64 GB x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x 3 |
| Video Output | HDMI x 2DP x 1 + Type-C |
| Expansion Slot | M.2 M Key | PCIe Gen3 [x4] ] x 1 | Full Size Mini-PCIe x 1 | PCIe [x1] x 1 | USB 2.0 |SMBUS | I2C x 1 |
| SMBUS | x 1 |
| TPM | TPM 2.0 |
| Supply Voltage | DC 12 V AT/ATX |
| Working temperature | 0°C ~ 50°C |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 20.04 | Operating system sold separately from license. |
