PICO-TGU4-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:

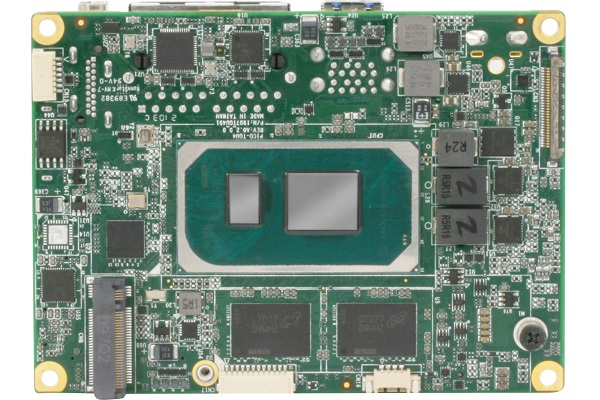

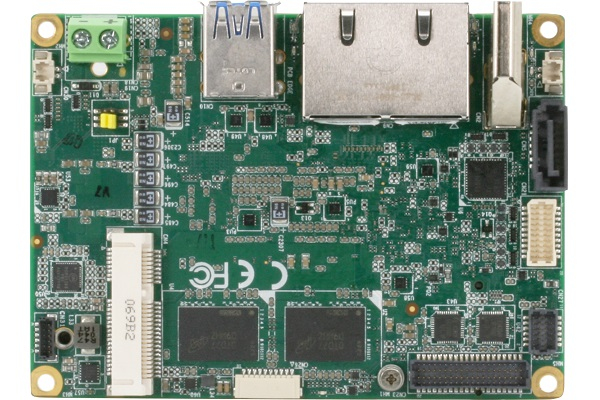

PICO-TGU4-A10-0003 is an industrial Pico-ITX motherboard that delivers powerful performance and flexibility with 11th Generation Intel® Core™ processors.
It provides extra expansion options with its M.2 slot and Mini-PCIe slot that supports PCIe 4.0.
It offers fast data transmission and network communication with 2.5 GbE and GbE Ethernet connections.
With USB 3.2 and 4 x USB 2.0 ports, devices can be easily connected.
It provides high-quality visual outputs with HDMI 2.0b and DP output.
Features
| Product Code | PICO-TGU4-A10-0003 |
| Form Factor | PICO-ITX |
| Card size (mm) | 100 x 72 |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | Intel® Core™ i3-1115G4 2 Core 3.00 / 4.10 GHz | BM : 6100 |
| Processor [CPU] family | Intel® Core™ i3 11. Gen |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | SATA2 x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | 4x USB 2.0 / header |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 2 |
| Digital I/O | DIO |
| Video Output | HDMI 2.0b x 1 + DP x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | M.2 M Key x 1 | SMBus x 1 |
| SMBUS | x 1 |
| Supply Voltage | DC 12 V AT/ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
