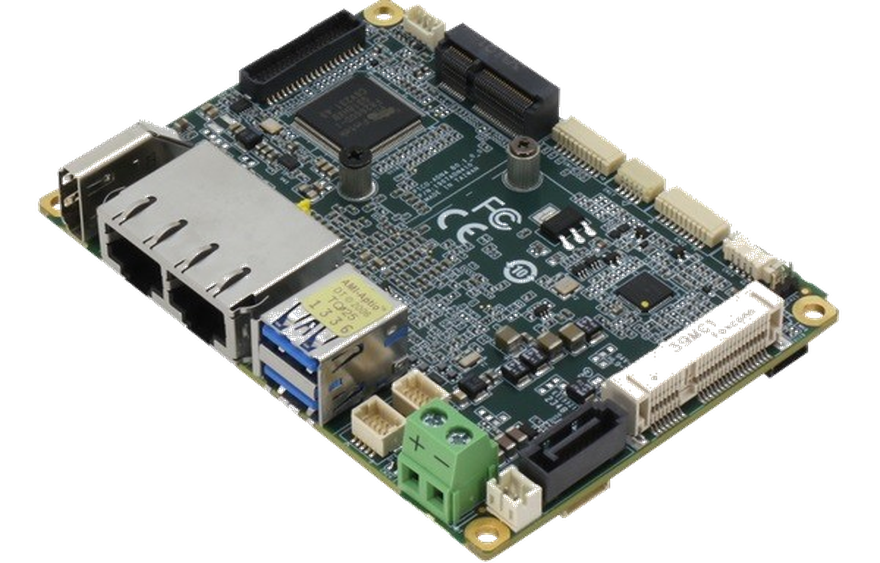

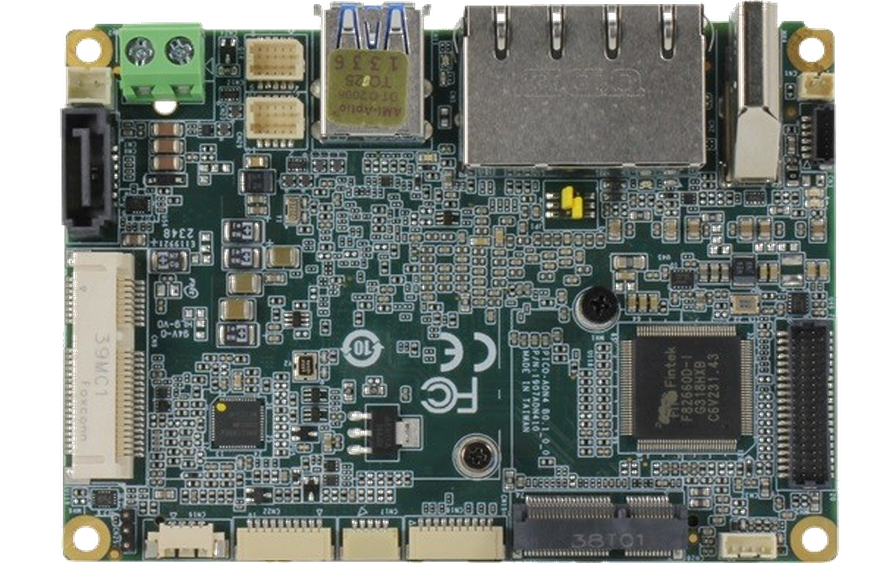

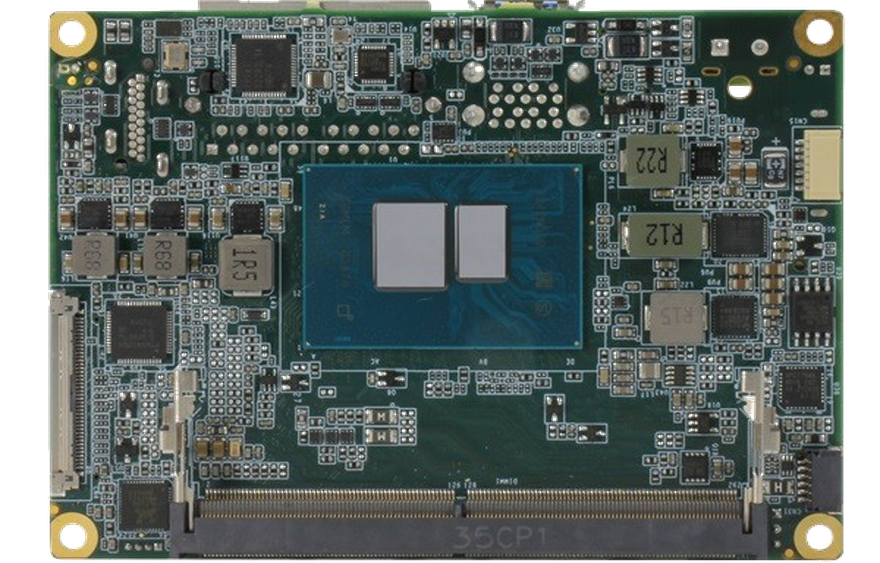

PICO-ASL4W2-B10-0001
Brand: AAEON [An ASUS Co.]
Categories:
PICO-ASL4W2-B10-0001 offers excellent performance in industrial automation and IoT applications with Intel® Atom® x7000RE processor.
It increases data processing speed with DDR5 4800 MHz memory support.
Dual Gigabit Ethernet ports and 2.5GbE connectivity provide high-speed network connections.
HDMI and LVDS video outputs are available for HMI displays.
It offers wide power options with 9~36V DC input support.
Features
| Product Code | PICO-ASL4W2-B10-0001 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 100 x 72 |
| Processor [CPU] | Intel® Atom® x7433RE 4 Core 3.40 GHz | BM : 4195 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | DDR4 |
| SSD/HDD/mSATA/M.2 | SATA3 x 1 |
| LAN/Ethernet | GbE x 1 2.5GbE x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 4 |
| Digital I/O | GPIO |
| Video Output | HDMI 1.4 x 1 LVDS/eDP x 1(Standart: LVDS)Inverter x 1 (12V/2A) |
| LVDS | x 1 |
| Expansion Slot | M.2 2230 E-key x 1 miniCard (Full) x 1 |
| SMBUS | x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | Opsiyonel |
| Supply Voltage | DC 12 V |
| Working temperature | -40°C ~ 85°C |
| External Dimensions (mm) | 100 x 72 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
