PICO-APL3-SEMI-A10-FS04
Brand: AAEON [An ASUS Co.]
Categories: Pico-ITX

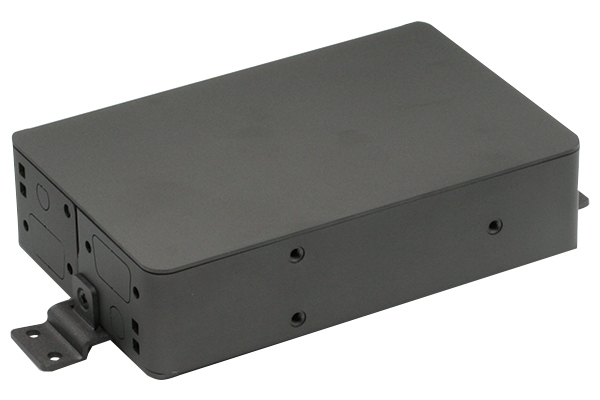

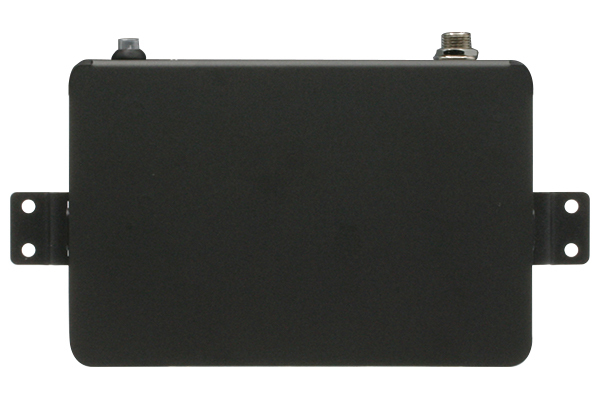

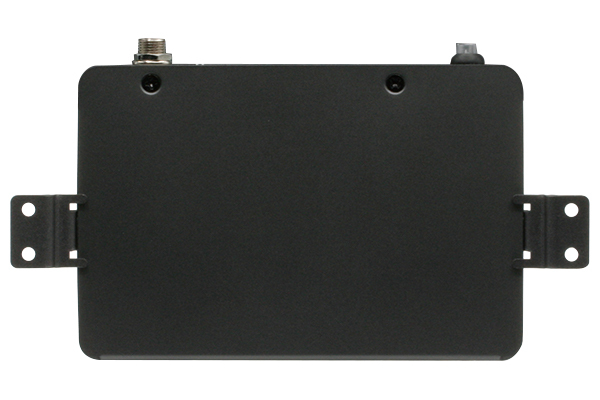

PICO-APL3-SEMI-A10-FS04, This barebones kit designed for Industrial IoT systems supports efficient power usage with Intel® Celeron® processor.
2GB of onboard RAM and 32GB of eMMC storage provide enough capacity for basic applications.
HDMI output and USB 3.0 ports provide high-quality video and fast data transfer.
It provides silent operation and energy saving with its fanless design.
DC 12V AT/ATX input power offers expandability and compatibility.
Features
| Product Code | PICO-APL3-SEMI-A10-FS04 |
| Form factor | PICO-ITX |
| Card Size (mm) | 122 x 80 x 30 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 2 GB Onboard |
| SSD/HDD/mSATA/M.2 | SATA3 x 1 | M.2 M Key x 1 | 32 GB eMMC |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x 2 |
| USB 2.0 | x 2 |
| Video Output | HDMI x 1 |
| Audio Output | Line-out x 1 |
| Expansion Slot | M.2 E Key x 1 |
| Supply Voltage | DC 12 V AT/ATX |
| Working temperature | 0°C ~ 50°C |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
