OMNI-ADP-KIT-A3-1010
Brand: AAEON [An ASUS Co.]
Categories:

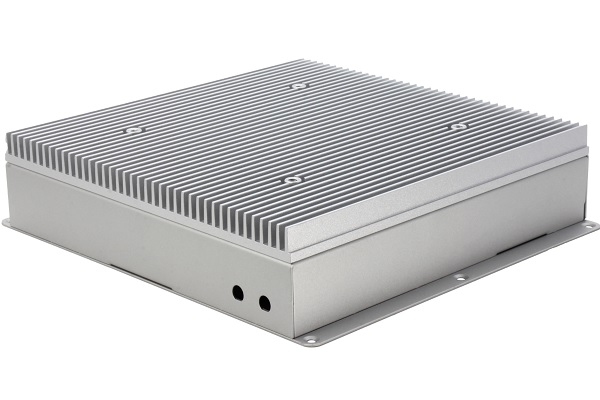

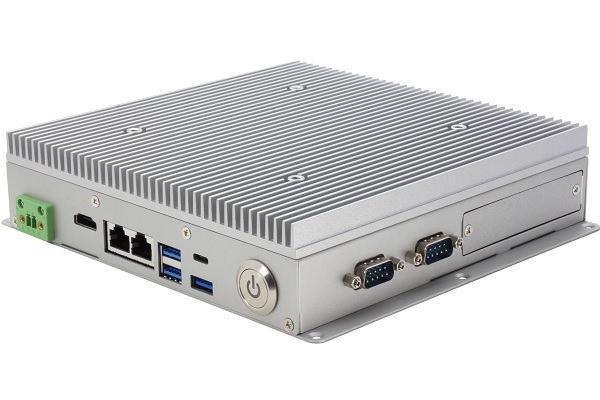

OMNI-ADP-KIT-A3-1010 is an industrial panel PC kit with a 12th Generation Intel® Core™ i5 processor.
Provides high-performance data operations with DDR5 memory support.
M.2 NVMe SSD support provides fast data access.
Dual RS-232/422/485 serial ports provide expandable connectivity options.
Provides flexible operating system support, compatible with Windows 10 and Linux.
Features
| Product Code | OMNI-ADP-KIT-A3-1010 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i5-1245UE 10 Core 4.40 GHz | BM : 9283 |
| Processor [CPU] Family | Intel® Core™ i5 12. Gen |
| RAM [System Memory] | DDR5 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 | M.2 NVMe x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 4 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 1 |
| LVDS | 18/24 bit 1CH x 1 |
| Expansion Slot | M.2 E Key x 1 | M.2 B Key x 1 |
| Mounting Type | VESA | Mounting Unit Not Included. |
| Supply Voltage | DC 9-30 V |
| Working temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 200 x 45 x 180 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
