NANOCOM-SKU-A10-0001
Brand: AAEON [An ASUS Co.]
Categories:

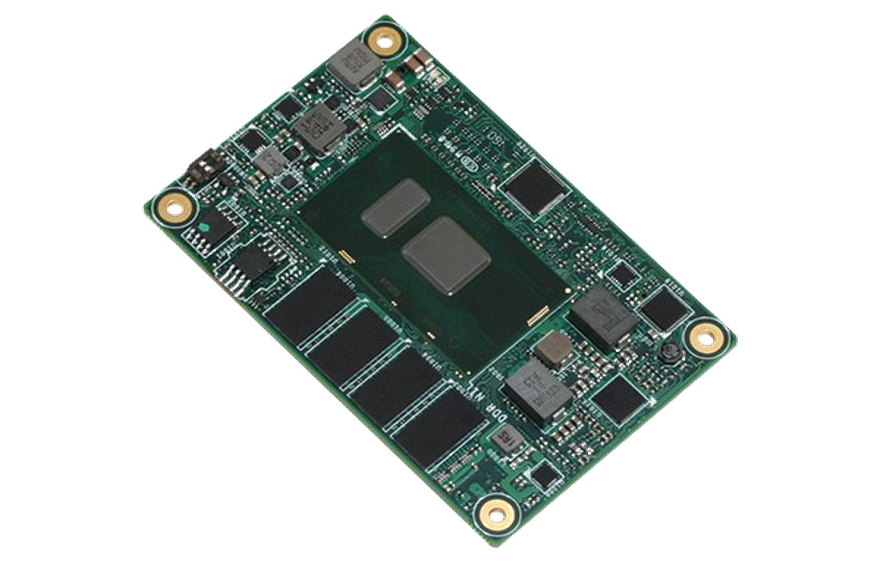

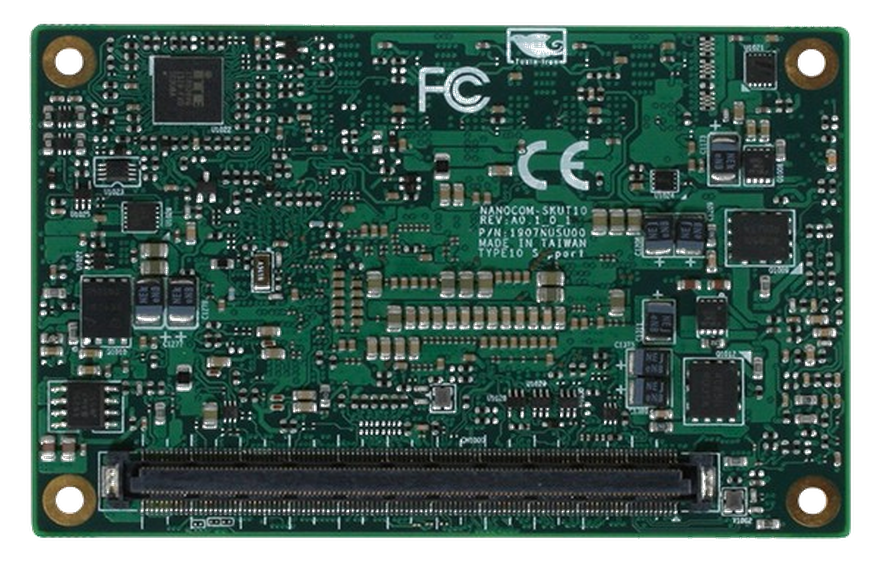

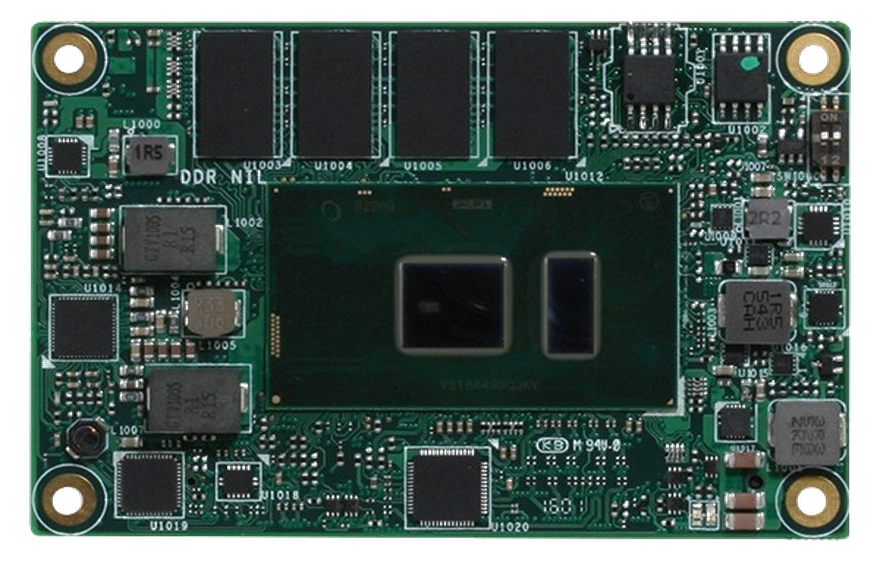

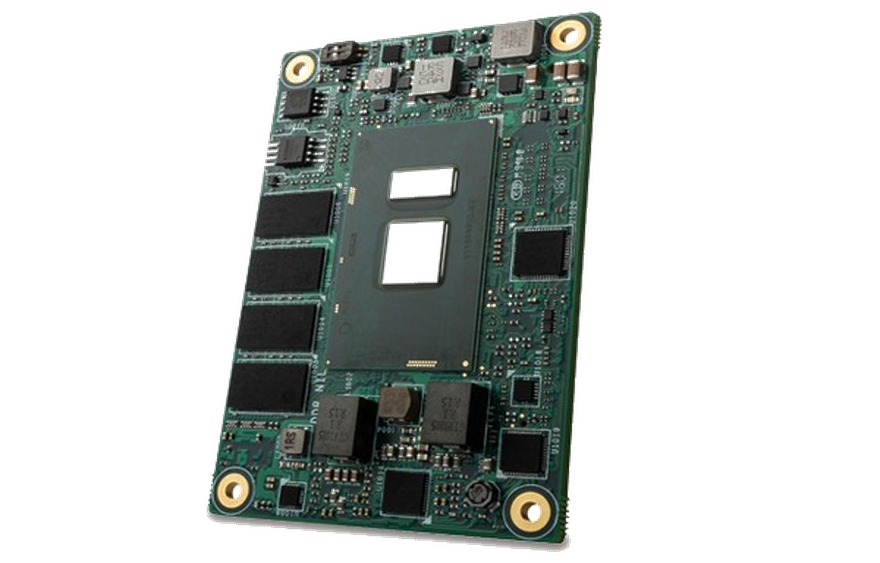

NANOCOM-SKU-A10-0001 is a high-performance COM Express Type 10 module featuring an Intel® Core™ i7-6600U processor and 4GB of onboard DDR4 memory.
With its compact size of 84 x 55 mm, it is suitable for use in limited spaces.
It is equipped with PCIe 3.0 [x1] x 4 expansion slots and various ports such as I2C, SMBus.
It provides extensive connectivity options with DDI x 1 + eDP x 1 / LVDS x 1 video outputs and 1 x USB 3.2, 8 x USB 2.0.
It has an operating temperature of 0°C ~ 60°C and a DC 12V supply voltage, and is compatible with Windows® 11 IoT and Linux operating systems.
Features
| Product Code | NANOCOM-SKU-A10-0001 |
| Form Factor | COM Express Mini Size, Type 10 |
| Card Size (mm) | 84 x 55 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i7-6600U 2 Core 2.60 GHz | BM : 3620 |
| Processor [CPU] Family | Intel® Core™ i7 6. Gen |
| RAM [System Memory] | 4 GB Onboard DDR4 |
| SSD/HDD/mSATA/M.2 | SATA3 x 2 |
| LAN/Ethernet | Intel® I219-LM x 1 |
| USB 3.2 | x 1 |
| USB 2.0 | x 8 |
| UART | (Tx /Rx) x 2 |
| Various Ports | I2Cx 1, SMBusx 1 |
| Digital I/O | GPIO |
| Video Output | DDI x 1 + eDP x 1 / LVDS x 1 |
| LVDS | x 1 |
| Expansion Slot | PCIe 3.0 [x1] x 4 + LPC x 1 |
| Supply voltage | DC 12V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 84 x 55 |
| Certificates | CE |
| Supported Operating Systems | Windows® 11 IoT | Pro | Windows® 10 IoT | Pro | Linux | Operating system sold separately from license. |
