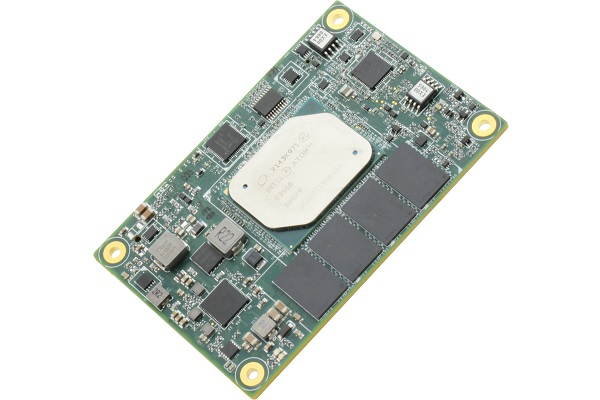

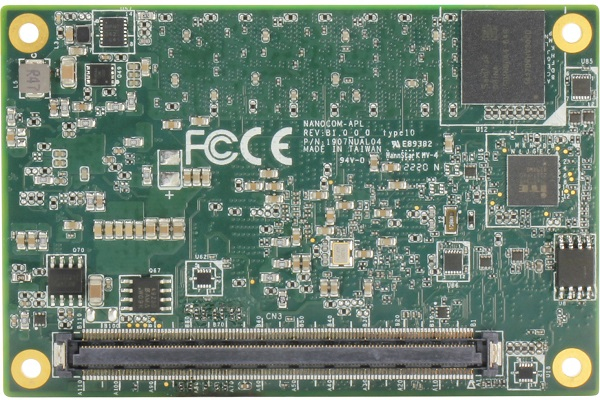

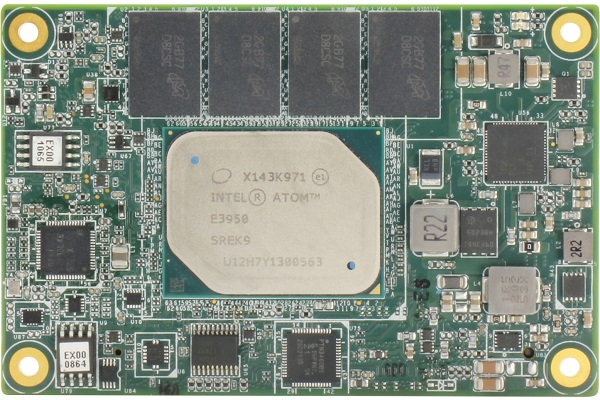

NANOCOM-APL-B10-0003
Brand: AAEON [An ASUS Co.]
Categories:
NANOCOM-APL-B10-0003 provides powerful performance for demanding industrial tasks with its Intel® Atom™ x7-E3950 4 Core 1.60 GHz processor.
It has a large data processing capacity with 8 GB Onboard RAM and 64 GB eMMC storage option.
It offers flexible connections with PCIe x4 expansion slot, USB 3.2 x 2 and RS 232/422/485 x 4 ports.
It provides high-resolution image transmission with LVDS x 1 + DDI x 1 video output.
It can operate safely at operating temperatures of -20°C ~ 60°C with DC 12V supply voltage.
Features
| Product Code | NANOCOM-APL-B10-0003 |
| Form Factor | COM Express Type 10 |
| Processor [CPU] | Intel® Atom® x7-E3950 4 Core 1.60 GHz | BM : 2150 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | 8 GB Onboard |
| SSD/HDD/mSATA/M.2 | 64 GB eMMC | SATA3 x 2 |
| LAN/Ethernet | Intel® I226-IT x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 8 |
| Digital I/O | GPIO 8 Bit |
| Video Output | LVDS x 1 + DDI x 1 |
| Expansion Slot | PCIe [x1] x 4 | PCIe [x1] x 4 |
| SMBUS | x 1 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 20.04 | Operating system sold separately from license. |
