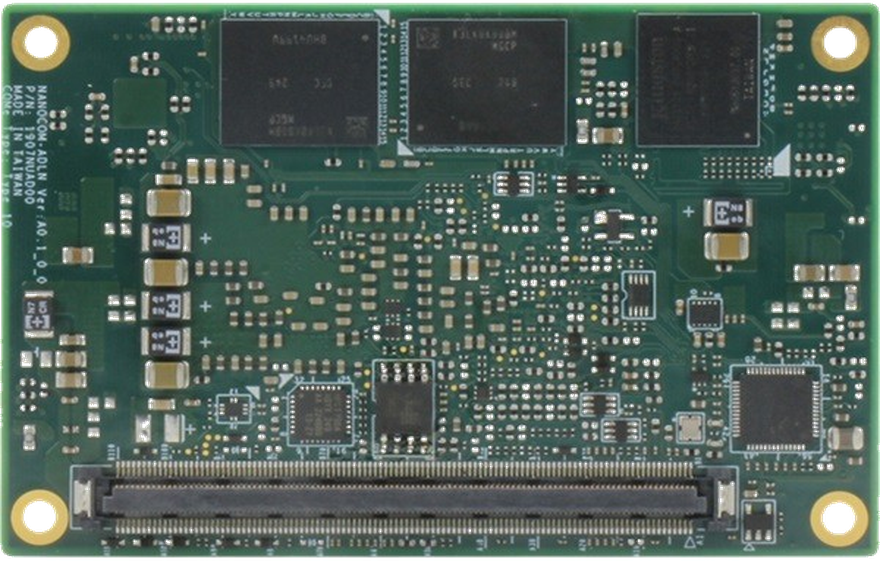

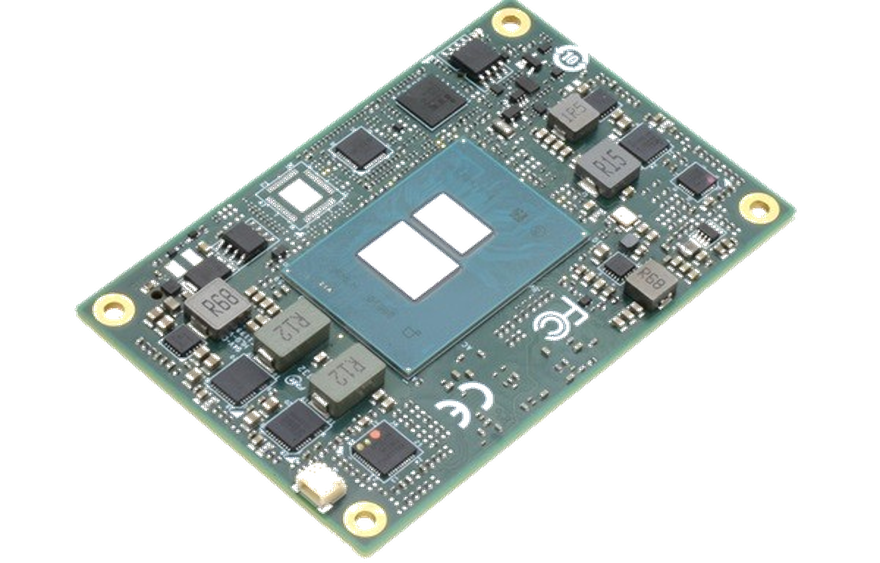

NANOCOM-ADN-A10-0004
Brand: AAEON [An ASUS Co.]
Categories:
NANOCOM-ADN-A10-0004 uses Intel® Atom™ N2600 dual Core processor running at 1.6GHz.
It provides energy efficiency with its versatile and low power consumption architecture.
Equipped with Intel® NM10 chipset, it provides wide temperature range and powerful processing capacity.
With its compact size of 84 mm x 55 mm, it is ideal for integration into narrow spaces.
It offers wide connectivity options with RS 232 Serial Port, I2C x 1, SMBus x 1.
Features
| Product Code | NANOCOM-ADN-A10-0004 |
| Form Factor | COM Express Type 1 |
| Card Size (mm) | 84 x 55 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® N50 2 Core 1.00 / 3.40 GHz | BM : 2900 |
| Processor [CPU] Family | Intel® Processor N® |
| RAM [System Memory] | 8 GB Onboard LPDDR5 |
| SSD/HDD/mSATA/M.2 | SATA3 x 2 32 GB eMMC |
| LAN/Ethernet | 2.5 GbE x 1 x Intel® i226V |
| USB 3.2 | x 2 |
| USB 2.0 | x 8 |
| UART | (Tx /Rx) x 2 |
| Various Ports | UARTx 2 (Tx/Rx) |
| Digital I/O | GPIO |
| Video Output | LVDS x 1, DDI x 1 |
| LVDS | x 1 |
| Expansion Slot | PCIe [x1] x 4 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 84 x 55 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
