MIX-Q670D1-A10
Brand: AAEON [An ASUS Co.]
Categories:

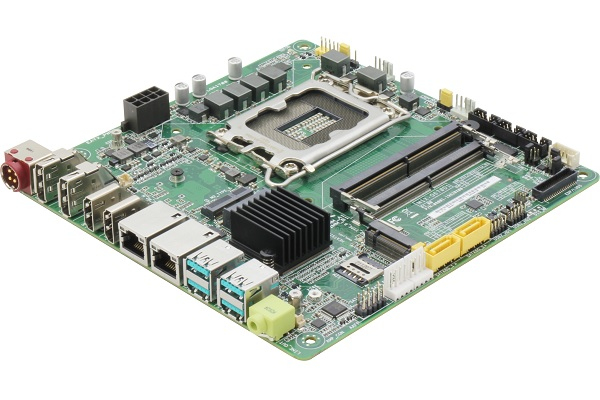

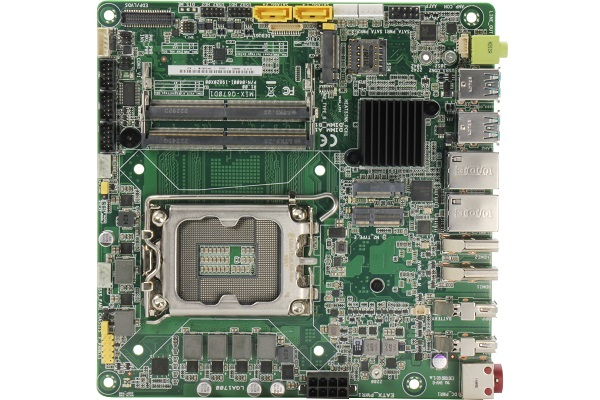

MIX-Q670D1-A10 is a Mini-ITX motherboard supporting 12th and 13th Generation Intel® Core™ processors, delivering high performance with a maximum TDP of 65W.
It offers a low-profile design with versatile connectivity options and expandability.
It fits comfortably in limited spaces, preserving essential interfaces and maximizing CPU performance.
It enables the development of high-end solutions for content creators.
It is compatible with Windows 10 and Windows 11 operating systems and has CE certification.
Features
| Product Code | MIX-Q670D1-A10 |
| Form Factor | Mini-ITX |
| Card size (mm) | 170 x 170 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | DDR5 x 2 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 4 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 2DP x 2 + eDP x 1 + LVDS x 1 |
| Expansion Slot | M.2 B Key x 1 | M.2 E Key x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Opsiyonel) |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
