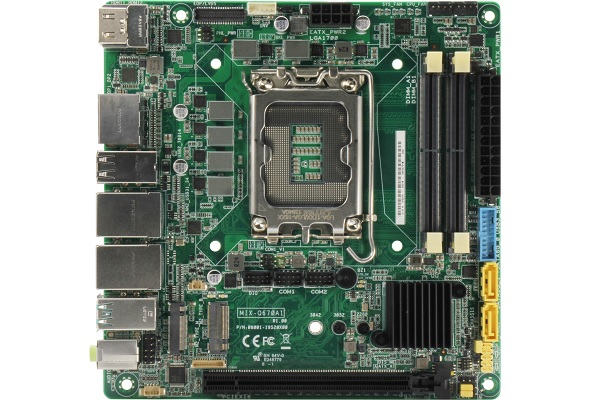

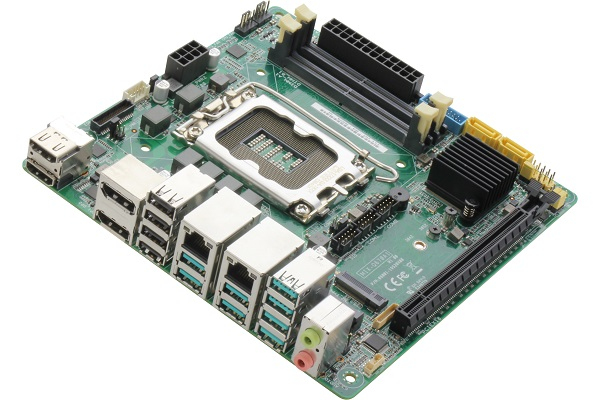

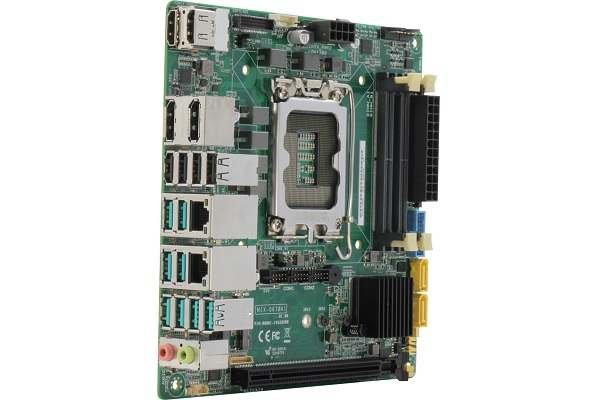

MIX-Q670A1-A10
Brand: AAEON [An ASUS Co.]
Categories:
MIX-Q670A1-A10 is a powerful industrial motherboard equipped with 13th and 12th Generation Intel® Core™ i9 | i7 | i5 | i3 processors.
DDR5 x 2 [Max 64 GB] RAM support, M.2 M Key x 1 | SATA3 x 2 storage options provide flexibility.

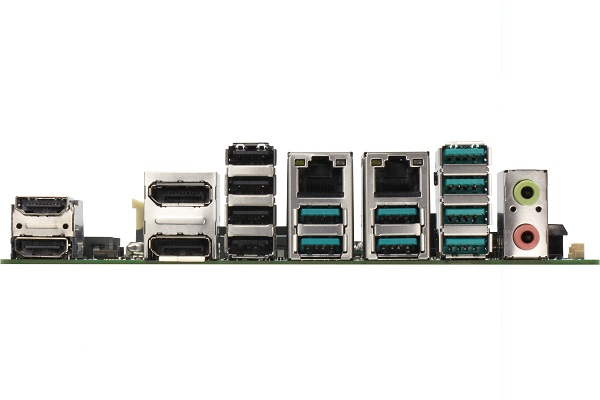

It offers rich connectivity with 4 x GbE, USB 3.0 x 4, USB 2.0 x 4, HDMI x 2, DP x 2 + eDP x 1 + LVDS x 1 video outputs.
Additional hardware integration can be achieved via PCIe [x16] x 2, M.2 B Key x 1 expansion slots.
It is suitable for industrial solutions with ATX supply voltage, 0°C ~ 60°C operating temperature and Windows 10, Windows 11 support.
Features
| Product Code | MIX-Q670A1-A10 |
| Form Factor | Mini-ITX |
| Card size (mm) | 170 x 170 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | DDR5 x 2 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 8 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 2DP x 2 + eDP x 1 + LVDS x 1 |
| Expansion Slot | M.2 B Key x 1 | PCIe [x16] x 1 | PCIe [x16] x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Opsiyonel) |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
