MIX-Q370A1-A11-4L-210FT
Brand: AAEON [An ASUS Co.]
Categories:
MIX-Q370A1-A11-4L-210FT, Industrial Mini-ITX motherboard, is equipped with 8th Generation Intel® Core™ processors.

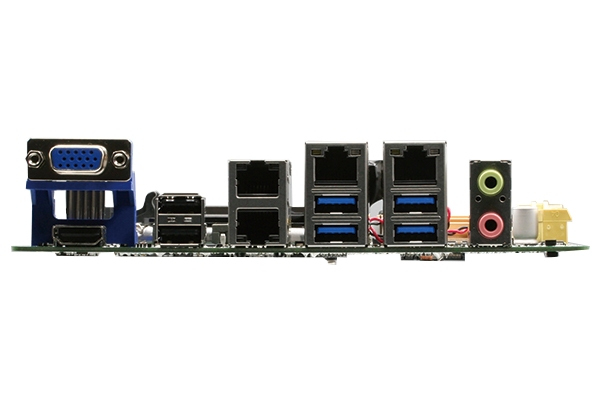

It provides advanced connectivity options with 4 x GbE, USB 3.0 x 4, USB 2.0 x 4, HDMI x 1, VGA x 1 video outputs.
It offers flexibility with PCIe 3.0 [x16] x 1 and M.2 (M Key) x 1 | M.2 (E Key) x 1 expansion slots.
It provides powerful performance with Intel® Core™ i7 | i5 | i3 | Pentium® | Celeron® processor options.
ATX supply voltage, 0°C ~ 60°C operating temperature, compatible with Windows 10, Windows 8, Windows 7 and Linux Ubuntu 22.04 operating systems.
Features
| Product Code | MIX-Q370A1-A11-4L-210FT |
| Form factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Cooling | Fan |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 4 |
| USB 3.0 | x 4 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 1 + VGA x 1 |
| Expansion Slot | PCIe 3.0 [x16] x 1 | M.2 M Key x 1 | M.2 E Key x 1 |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
