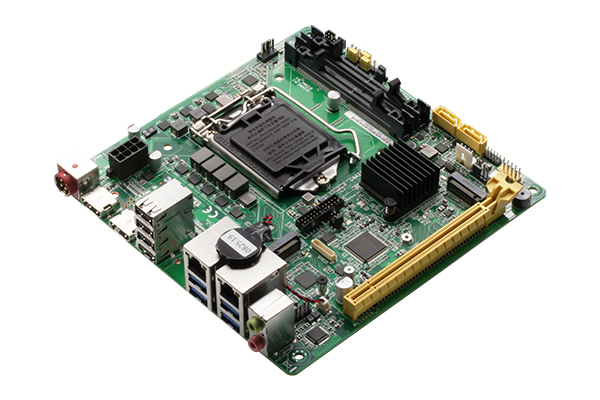

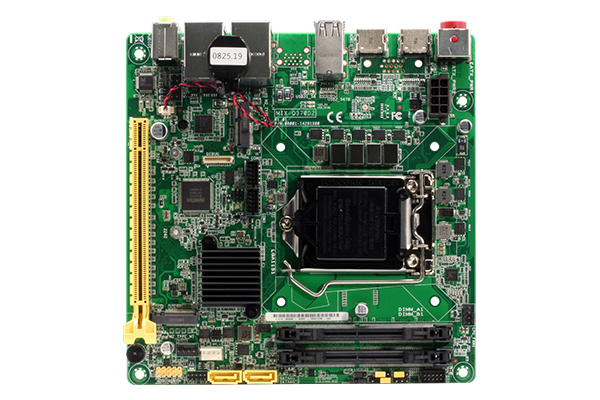

MIX-H310D2-A11-210
Brand: AAEON [An ASUS Co.]
Categories:
MIX-H310D2-A11-210 delivers high performance in industrial systems with 8th/9th Generation Intel® Core™ processor socket LGA1151.
Provides expandability with dual PCIe 3.0[x16] slots.

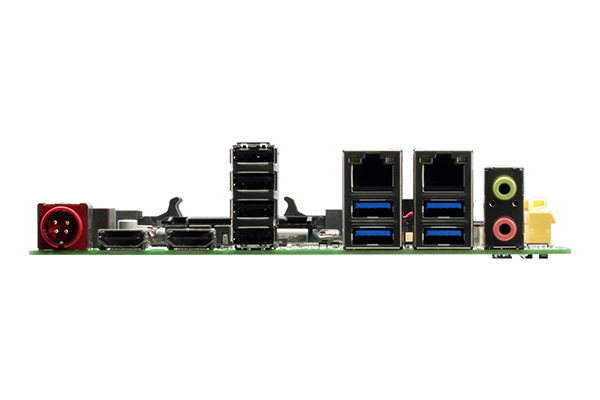

It offers multiple connectivity options with HDMI, VGA, DP outputs and USB 3.0, USB 3.2.
It provides wide software compatibility with Windows 10 and Linux Ubuntu 18.04 support.
It supports ATX supply voltage and 0°C ~ 60°C operating temperature to meet various power requirements.
Features
| Product Code | MIX-H310D2-A11-210 |
| Form factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Cooling | Fan |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 4 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 1 + VGA x 1 + DP x 1 |
| Expansion Slot | PCIe 3.0[x16] x 1 | PCIe 3.0[x16] x 1 |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 18.04 | Operating system sold separately from license. |
