MIX-H310D1-A13-HH
Brand: AAEON [An ASUS Co.]
Categories:

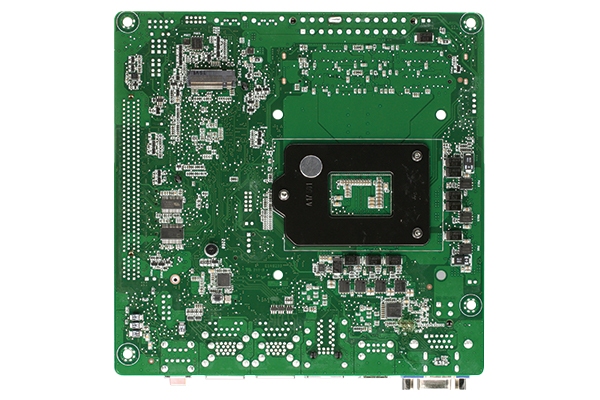

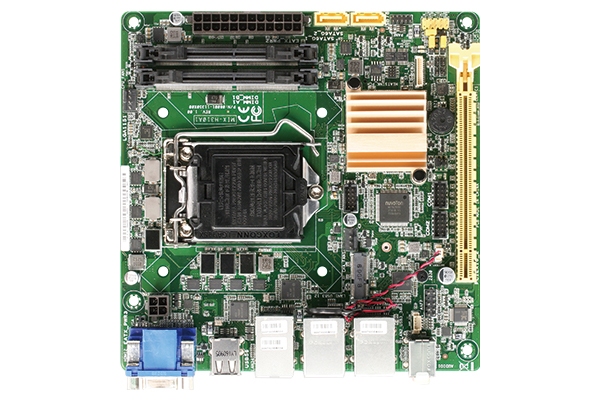

MIX-H310D1-A13-HH is a powerful and efficient industrial motherboard with 8th Generation Intel® Core™ processor and LGA1151 socket.
It offers advanced display options with HDMI, eDP and LVDS outputs.
Provides expandability with PCIe 3.0 x4 and M.2 E Key slot.

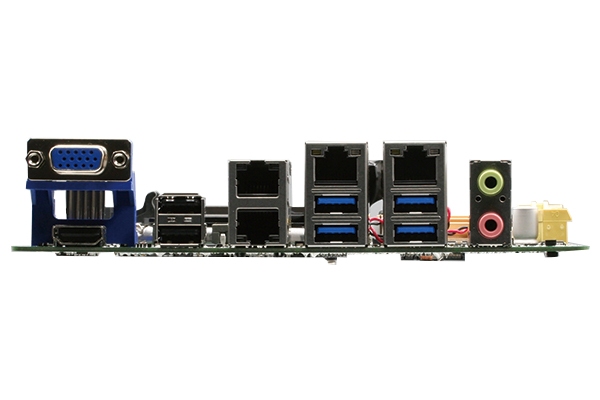

It offers rich connectivity options with USB 3.0, USB 2.0 and RS-232/422/485 ports.
It is a high-performance and durable solution suitable for various industrial applications.
Features
| Product Code | MIX-H310D1-A13-HH |
| Form factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Cooling | Fan |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| USB 2.0 | x 5 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 2 eDP x 1 + LVDS x 1 |
| Expansion Slot | PCIe 3.0 [x4] x 1 | M.2 E Key x 1 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
