MIX-H310D1-A10-HH
Brand: AAEON [An ASUS Co.]
Categories:

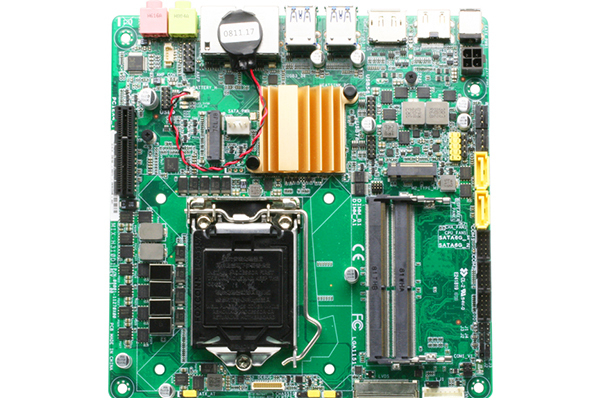

MIX-H310D1-A10-HH is a powerful motherboard that meets industrial hardware requirements with 8th Generation Intel® Core™ processor socket LGA1151.
It is resistant to harsh industrial environments with its 12V DC power input.

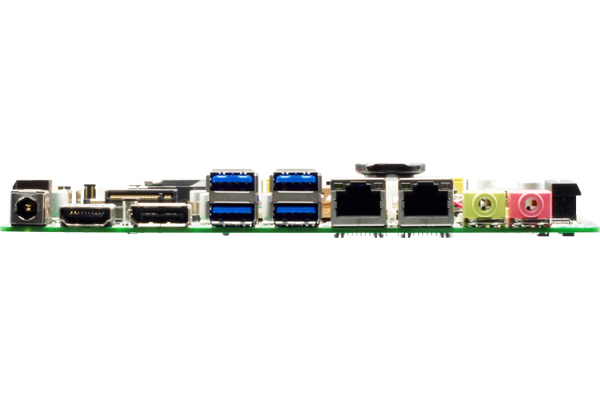

It offers a wide range of hardware connectivity options with USB 3.0, RS-232, RS-422/485 and GbE x 2 Ethernet.
It provides high-resolution image transfer with HDMI, eDP and LVDS video outputs.
The system can be expanded with PCIe 3.0 x4 expansion slot and M.2 E Key support.
Features
| Product Code | MIX-H310D1-A10-HH |
| Form Factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| USB 2.0 | x 5 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 2 eDP x 1 + LVDS x 1 |
| Expansion Slot | PCIe 3.0 [x4] x 1 | M.2 E Key x 1 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
