MI987
Brand: IBASE
Categories:
The MI987 Mini-ITX motherboard is based on the Q87 chipset designed to support LGA1150 4th Generation Intel® Core™ i7/i5/i3 desktop processors built on the latest 22nm process technology. The motherboard offers leading processing performance as well as increased graphics performance over its predecessors, making it well-suited for demanding applications in the gaming, automation and digital signage markets.

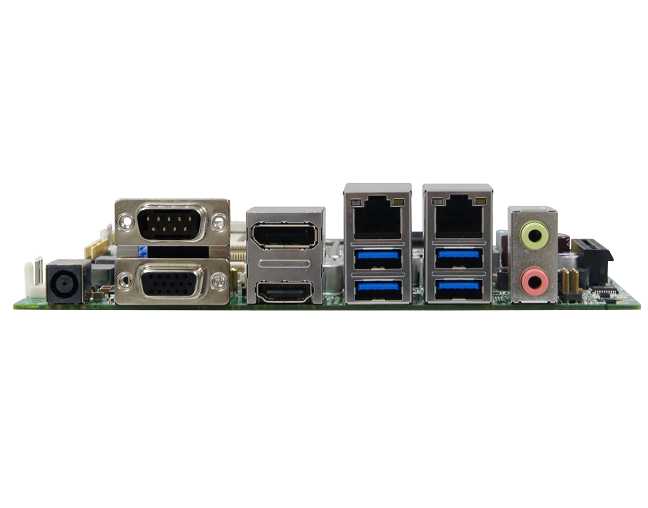

The IBASE MI987 Mini-ITX motherboard features two DDR3-1600 SO-DIMM sockets for up to 16GB of system memory and three types of graphic display interfaces, including VGA CRT, HDMI, and DisplayPort. Alongside the display edge connectors are a Serial Port, four USB ports, two Gigabi
With long-term usability, MI987 has many great features, such as two 6Gb/s SATA III interfaces, two Serial Ports, watchdog timer, digital I/O, TPM 1.2 and iSMART. TPM helps systems run applications securely.
Features
| Product Code | MI987 |
| Form Factor | Full Size CPU Card |
| Card Size (mm) | 338 x 126 |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 6 | SATA3 x 4 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 3 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 3 |
| RS 232/422/485 Serial Port | x 1 |
| Digital I/O | DIx 4 / DOx 4 |
| Video Output | VGA x 1 + DVI-D x 1 + DVI-I x 1 |
| Expansion Slot | Full Size Mini PCIe x 1 |
| Supply Voltage | ATX |
| Certificates | CE |
