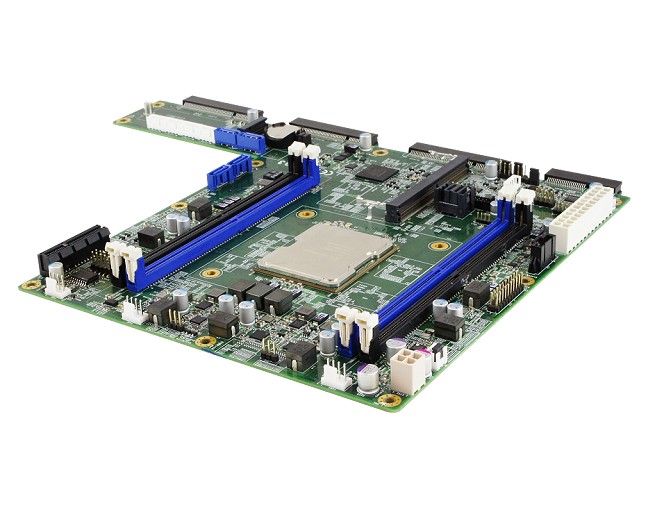

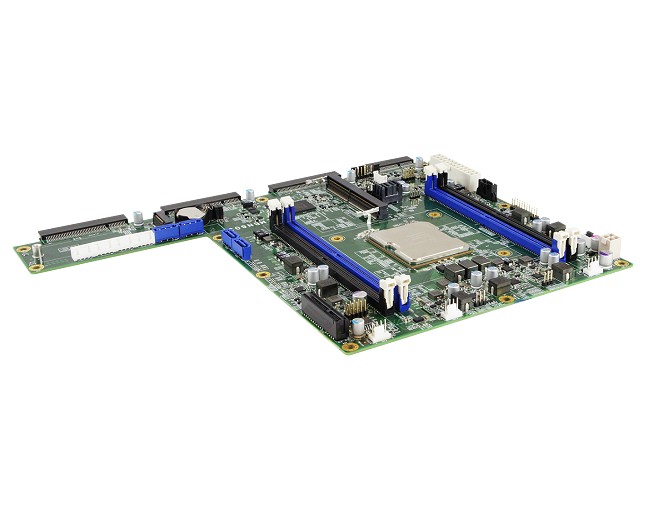

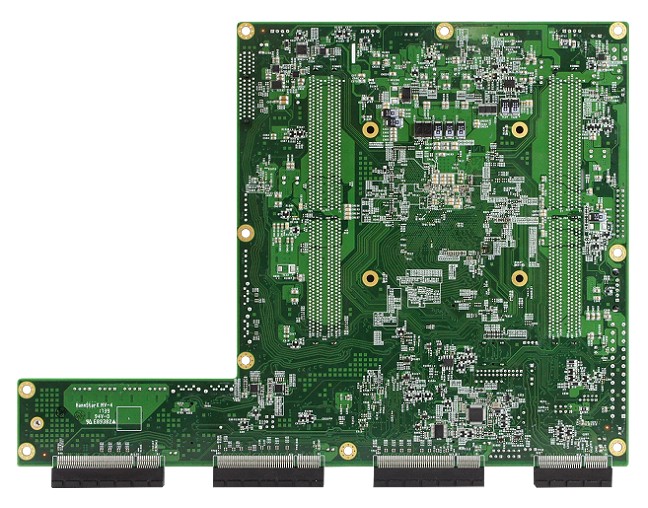

MBN803
Brand: IBASE
Categories:
• Intel® Xeon® Processor D-2100 Series
• 4x DDR4 RDIMM; Maximum 128GB
• 4x NIC modules; Maximum 28GbE ports
• Optional IPMI module slope
• 1 x M.2 slot and PCIe x8 Expansion slot (4 lanes)
Features
| Product Code | MBN803 |
| Processor [CPU] | Intel® Xeon® |
| Processor [CPU] Family | Intel® Xeon® |
| RAM [System Memory] | [Max 128 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 4 |
| LAN/Ethernet | IBN CARD |
| USB 2.0 | x 2 |
| Expansion Slot | PCIe [x8] x 1 | PCIe [x4] x 1 | PCIe [x8] x 1 | PCIe [x4] x 1 |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 308 x 255 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
