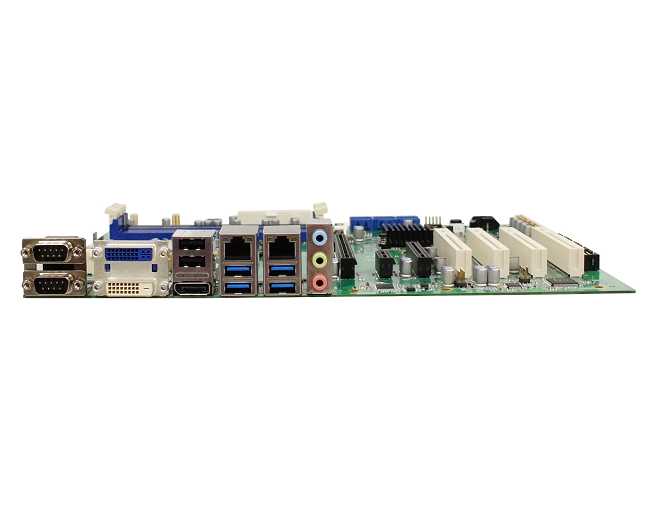

MB980VF
Brand: IBASE
Categories:
MB980 in ATX form factor supports 4th Generation Intel® Core™ i7/i5/i3 processors manufactured on industry-leading 22nm process technology with 3D Tri-Gate transistors.
Equipped with the Intel® Q87 chipset and 4th Generation Intel® Core™ processors, the MB980 enables gaming, infotainment, security, automation and digital signage applications on smart platforms, while delivering higher CPU, media and graphics performance and energy efficiency.
MB980 comes with four standard voltage DDR3 sockets supporting up to 32GB system memory. Graphics interface includes DVI-I, DVI-D and DisplayPort. High connectivity, two Gigabit Ethernet, 14 USB ports, 6 Serial Ports (on COM1 for RS232/422/485)
Features
| Product Code | MB980VF |
| Form Factor | ATX |
| Card Size (mm) | 304 x 244 |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 6 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| RS 232/422/485 Serial Port | x 1 |
| Digital I/O | DIx 4 / DOx 4 |
| Video Output | DVI-I x 1 + DVI-D x 1 + DP x 1 |
| Expansion Slot | Full Size | PCIe [x16] x 1 | PCIe [x4] x 1 | PCIe [x1] x 1 | PCIe [x16] x 1 | PCIe [x4] x 1 | PCIe [x1] x 1 | PCIx4 |
| Supply Voltage | ATX |
| Certificates | CE |
