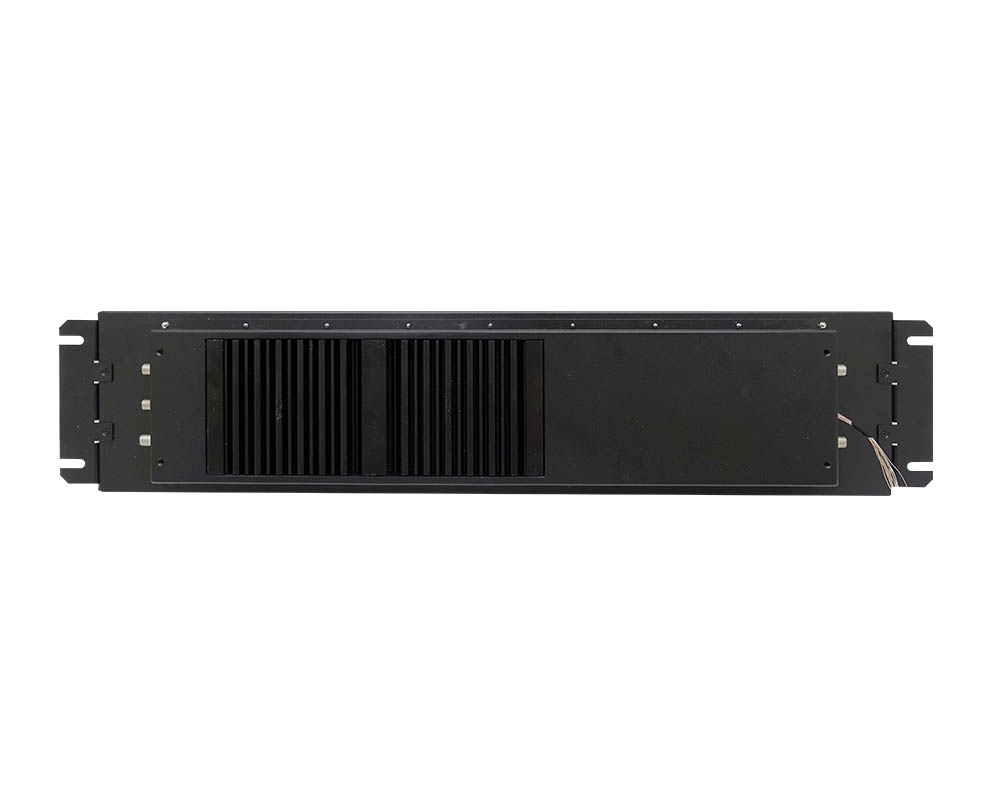

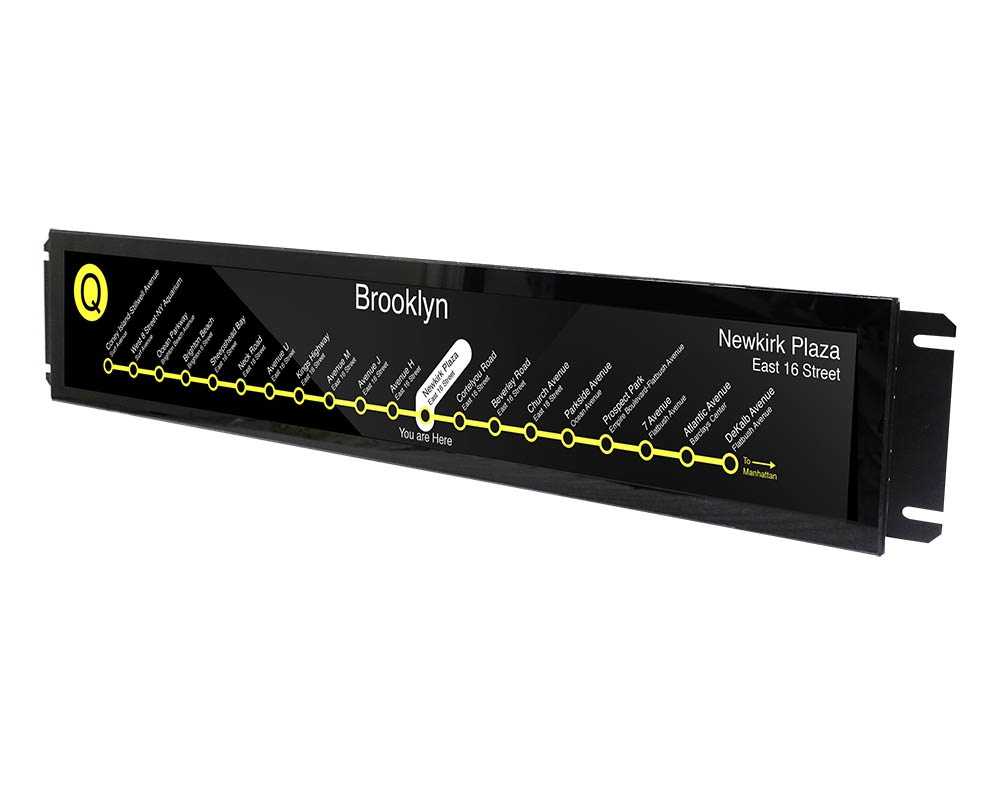

ITRP-2845-C
Brand: Litemax [An ASUS Co.]
Categories: EN50155 Rail System Panel PC
•28.5" EN50155 Railway Full IP54 Fanless Panel PC
• Intel® 6th Skylake mobile processor support
• 28 inch LCD, 1920 x 357, 1000 cd/m²
• EN50155 railway certified
• Full IP54 and Fanless design
• Supports 24/36/48/72/96/110 VDC input with M12 connector
• Anti-Shock and vibration
Features
| Product Code | ITRP-2845-C |
| Screen size | 28" TFT LCD |
| Resolution | 1920 x 360 |
| Brightness | 1000 cd/m² |
| Viewing Angle | 178°(H ) / 178°(V) |
| Cooling | Fanless |
| Processor [CPU] | Intel® Celeron® 3955U 2 Core 2.00 GHz | BM : 1580 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | [Max 16 GB] |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 1 |
| LVDS | POGO 12 Pin x 1 |
| Audio Output | Built-in Speaker |
| Expansion Slot | Full Size Mini-PCIe x 1 |
| Supply Voltage | DC 110 V Default| Optional DC 24 V| DC 48 V| DC 72 V DC 110 V Default| Optional DC 24 V| DC 48 V| DC 72 V |
| Operating temperature | -25°C ~ 55°C |
| External Dimensions (mm) | 815 x 68.6 x 78.1 |
| Chassie Material | Aluminum |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC | EN50155 | LVD |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
