IPPC1905-RE-I3
Brand: IBASE
Categories:
The PPC Core series are expandable Panel PCs powered by 6th and 7th Generation Intel® Core™ processors and available with 15-inch (IPPC1505-RE), 17-inch (IPPC1705-RE) and 19-inch (IPPC1905-RE) touchscreen displays. Displays to perform a variety of tasks. These Fanless units feature cutting-edge features that combine connectivity with flexible I/O and high reliability for factory automation, machine automation and other demanding indoor applications.

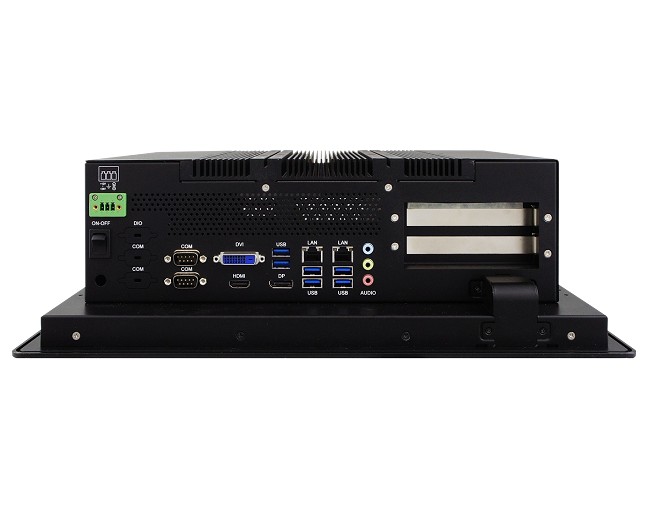

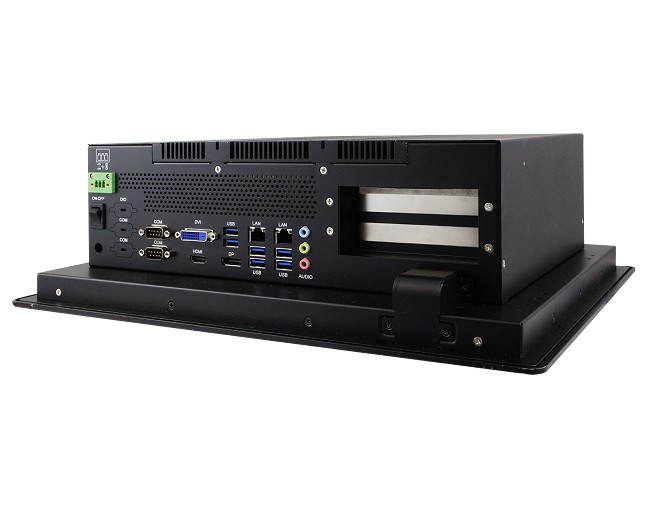

These multifunctional Panel PCs offer a rich set of I/O interfaces with two Gigabit Ethernet supporting an EtherCAT master, six USB 3.0, one RS232/422/485 and one USB 2.0, allowing easy integration into existing systems. and designed for integration. front bezel
The Panel PCs have an IP65 rating on the front and use VESA/Panel mounting. Built with a 64GB SSD drive, this computer supports an operating temperature of up to 50 C and 12V/24V DC power input. Other advanced features include a 4 in/4
Features
| Product Code | IPPC1905-RE-I3 |
| Screen size | 19" TFT LCD |
| Resolution | 1280 x 1024 |
| Screen Format | 5 | 4 |
| Brightness | 350 cd/m² |
| Contrast | 1000 | 1 |
| Viewing Angle | 170°(H) / 160°(V) |
| Touch Type | Rezistif |
| Backlight Life (Min. Hours) | 50000 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i3-6102E 2 Core 1.90 GHz | BM : 2455 |
| Processor [CPU] Family | Intel® Core™ i3 6. Gen |
| RAM [System Memory] | Standart DDR4 [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 | [Yükseltilebilir] |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 6 |
| USB 2.0 | x 1 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Digital I/O | GPIO 4DI / 4DO Opsiyonel |
| Video Output | HDMI x 1 + DVI-D x 1 + DP x 1 |
| LVDS | POGO 12 Pin x 1 |
| Audio Output | Line-out x 1 |
| Expansion Slot | PCIe [x8] x 2 | PCIe [x8] x 2 |
| Wireless | Wi-Fi / BT Opsiyonel |
| Mounting Type | VESA 75 | VESA100 | Panel Mount | Stand | Mounting Unit Not Included. |
| Supply Voltage | DC 12-24 V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 480 x 415 x 107 |
| Body Material | Aluminum |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC | LVD |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
