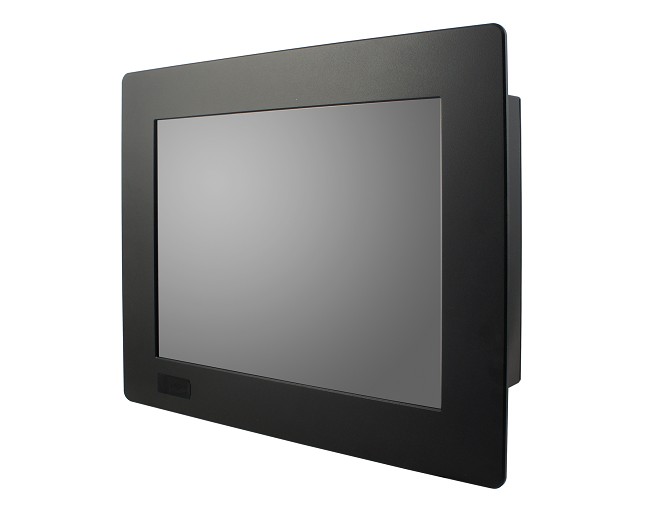

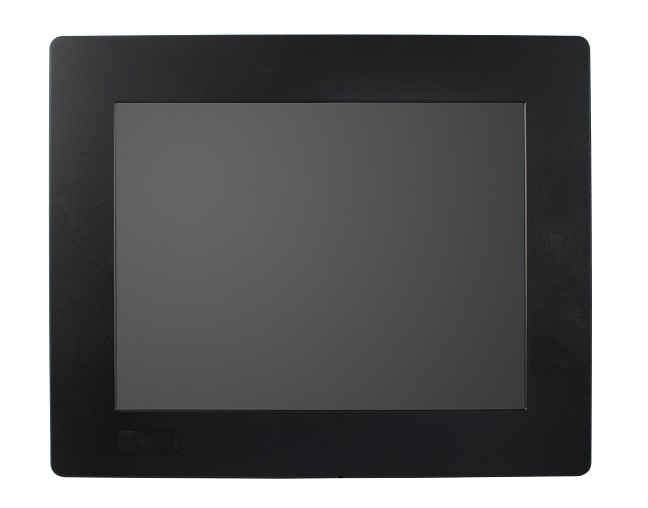

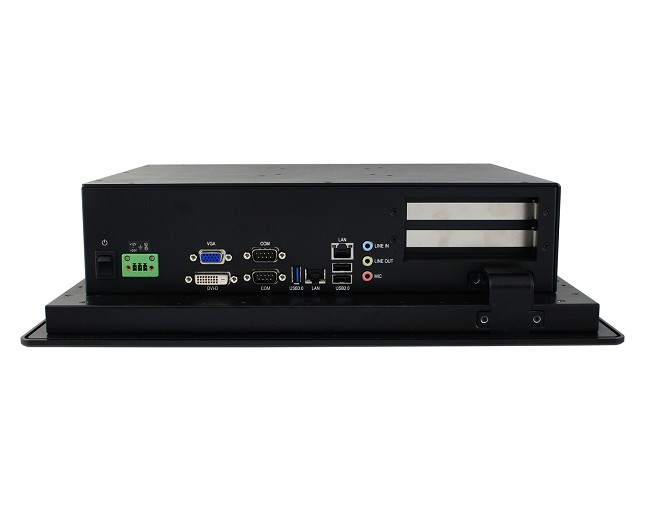

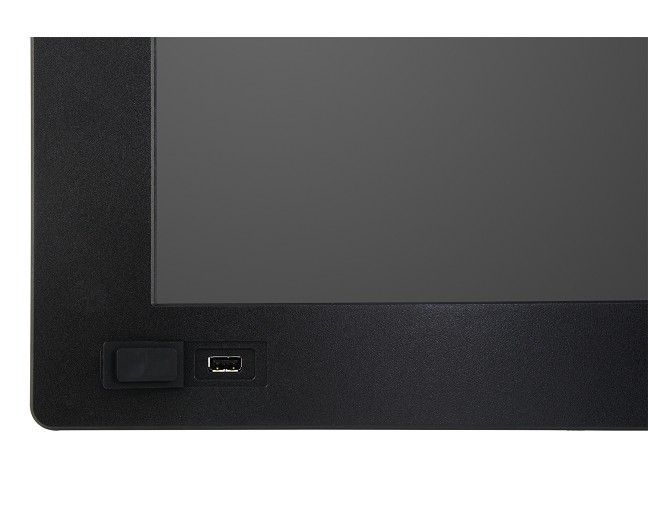

IPPC1703-RE
Brand: IBASE
Categories:
Expandable Affordable Industrial Panel PC with Intel® Celeron® J1900 processor ● Cost effective ● Low power consumption ● PCIe [x1] and PCI Expansion ● Front access USB 2.0 Port
Features
| Product Code | IPPC1703-RE |
| Screen size | 17" TFT LCD |
| Resolution | 1280 x 1024 |
| Screen Format | 5 | 4 |
| Brightness | 250 cd/m² |
| Contrast | 1000 | 1 |
| Viewing Angle | 178°(H) / 170°(V) |
| Touch Type | Rezistif |
| Backlight Life (Min. Hours) | 50000 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Celeron® J1900 4 Core 2.00 GHz | BM : 1150 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | Standart 4 GB DDR3L [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 | [Yükseltilebilir] |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 1 |
| USB 2.0 | x 3 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | VGA x 1 + DVI-D x 1 |
| LVDS | POGO 12 Pin x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | PCIe [x1] x 1 | PCIe [x1] x 1 | PCI x 1 |
| Wireless | Wi-Fi / BT Opsiyonel |
| Mounting Type | VESA 75 | VESA100 | Panel Mount | Stand | Mounting Unit Not Included. |
| Supply Voltage | DC 12-24 V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 410 x 335 x 105 |
| Body Material | Aluminum |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC | CCC | LVD |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
