IPC4-RT-I20A-i510-1235-16128

Brand: IPC4 by ICC
Categories:

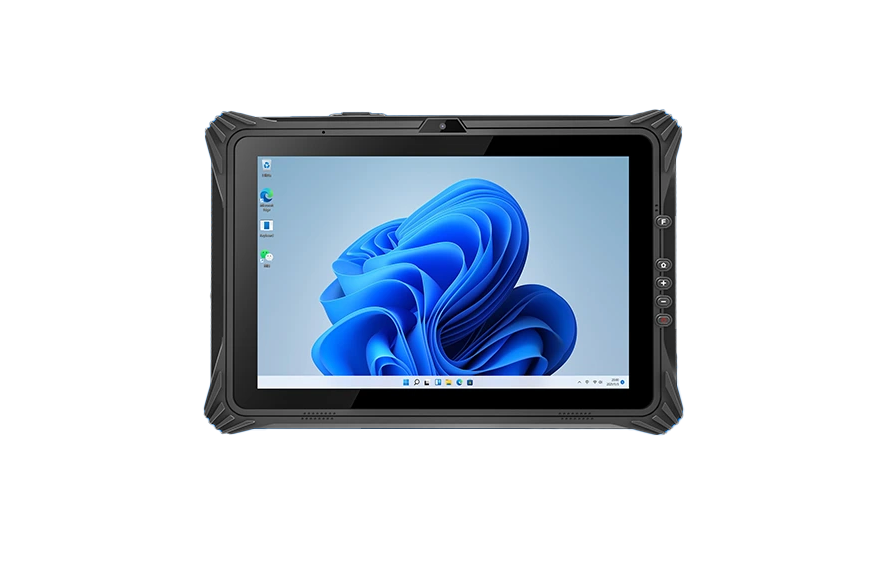

A rugged tablet PC suitable for industrial and field use, equipped with Intel Alder Lake i5-1235U and i7-1255U processors.

It has a 12.2" FHD 1920x1200 resolution and a brightness value of 650nits, making it ideal for outdoor use.

It offers high sensitivity usage even with gloves with capacitive touch screen (PCAP) technology.

It comes with 8GB DDR4L RAM and provides performance suitable for intensive workloads.

It offers large storage capacity with 128GB, 256GB or 512GB SSD storage options.

It offers dual-band (2.4G + 5.8G) wireless connection thanks to Wi-Fi 802.11 (a/b/g/n/ac) technology.

It provides high-quality image and video shooting with its 2.0MP front and 8.0MP rear cameras.

It offers secure login with fingerprint reader.

It offers extensive connectivity options such as USB3.2, HDMI 1.4a mini and RJ45 LAN (1pc).

It provides sound output via built-in speaker (8Ω/0.8W).

It provides long battery life with dual battery system (7.4V / 860mAh + 6300mAh / 7.4V).

It complies with MIL-STD 810G military standards and can operate in harsh weather and environmental conditions.

Provides location tracking with GPS, Beidou and GLONASS support.

It is resistant to dust and water thanks to its IP65 protection class.

With its modular structure, it offers configurations suitable for different industry requirements.

Optional NFC, 4G, 5G and 2D barcode scanner modules can be added.

It can be used worldwide thanks to the 100~240V adapter support.

Increases portability with additional accessories such as in-car mounting kit and shoulder strap.

It is ideal for industrial, logistics, open field and defense industry applications.

It provides uninterrupted use with its long-lasting battery technology.

Its lightweight and durable design increases portability for field workers.

It is suitable for precise data entry with optional active and passive pen support.


Features


Product Code IPC4-RT-I20A-i510-1235-16128
Screen size 12.2" TFT LCD
Resolution 1920 x 1200
Screen Format 16 | 10
Brightness 650 cd/m²
Touch Type Projective Kapasitif [P-CAP]
GPU Intel® Iris® Xe Graphics eligible
Cooling Without Fan
Processor [CPU] Intel® Core™ i5-1235U 10 Core 1.30 / 4.40 GHz | BM : 13570
Processor [CPU] Family Intel® Core™ i5 12. Gen
RAM [System Memory] 16 GB DDR5 (4800MHz) (Opsiyonel: 32GB)
SSD/HDD/mSATA/M.2 128 GB (256 GB / 512 GB SSD Opsiyonel)
LAN/Ethernet RJ45 x 1 (10/100Mbps)
USB 2.0 x 2
USB Type-C Thunderbolt 4 x 1
RS 232 Serial Port (Opsiyonel) x 1
Video Output HDMI 2.1a mini x 1
POGO 12PIN Pogo Pin x 1
Audio Output Built in 8Ω/1W Waterproof Speaker x 1
Expansion Slot Micro SD x 1 128GB
Wireless 802.11
Bluetooth BT5.1 (BLE)
Front camera 2 MP
Rear Camera 8 MP
4G - LTE Standart donanımda mevcuttur. BTK'na IMEI kaydı yapılarak teslim edilecektir. IMEI kaydı fiyata dahildir.
GPS (+)
G-Sensor (+)
2D/QR Code Reader Opsiyonel N3680 Hardware Decoder
Fingerprint reader (+)
NFC Opsiyonel
Battery Ana Batarya: 7.4V / 860mAhGeçiş Bataryası: 6300mAh / 7.4V
Docking + In-Vehicle Mounting (Opsiyonel) DC10U (+) (Opsiyonel) VUM20U
SHIMMER x 1
Supply Voltage DC 9-19 V
Working temperature -20°C ~ 60°C
External Dimensions (mm) 339.3 x 230.3 x 26
Weight (kg) 1500g
IP Protection Class IP65
Certificates CE | MIL-STD-810G
Supported Operating Systems Windows®10 | Windows®11 | Linux | Operating system sold separately from license.
