IDD58150-R2-5K

Brand: PANELMATE
Categories: ARM Mounted Monitor

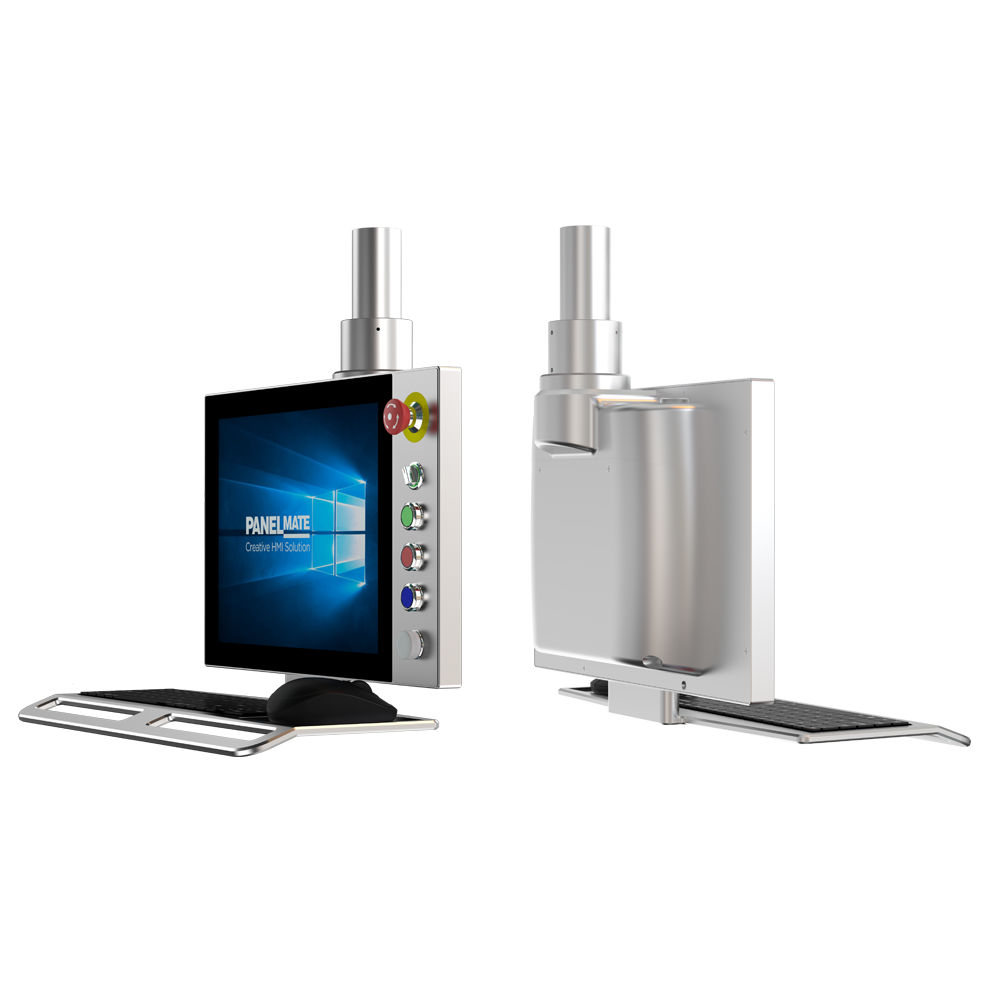

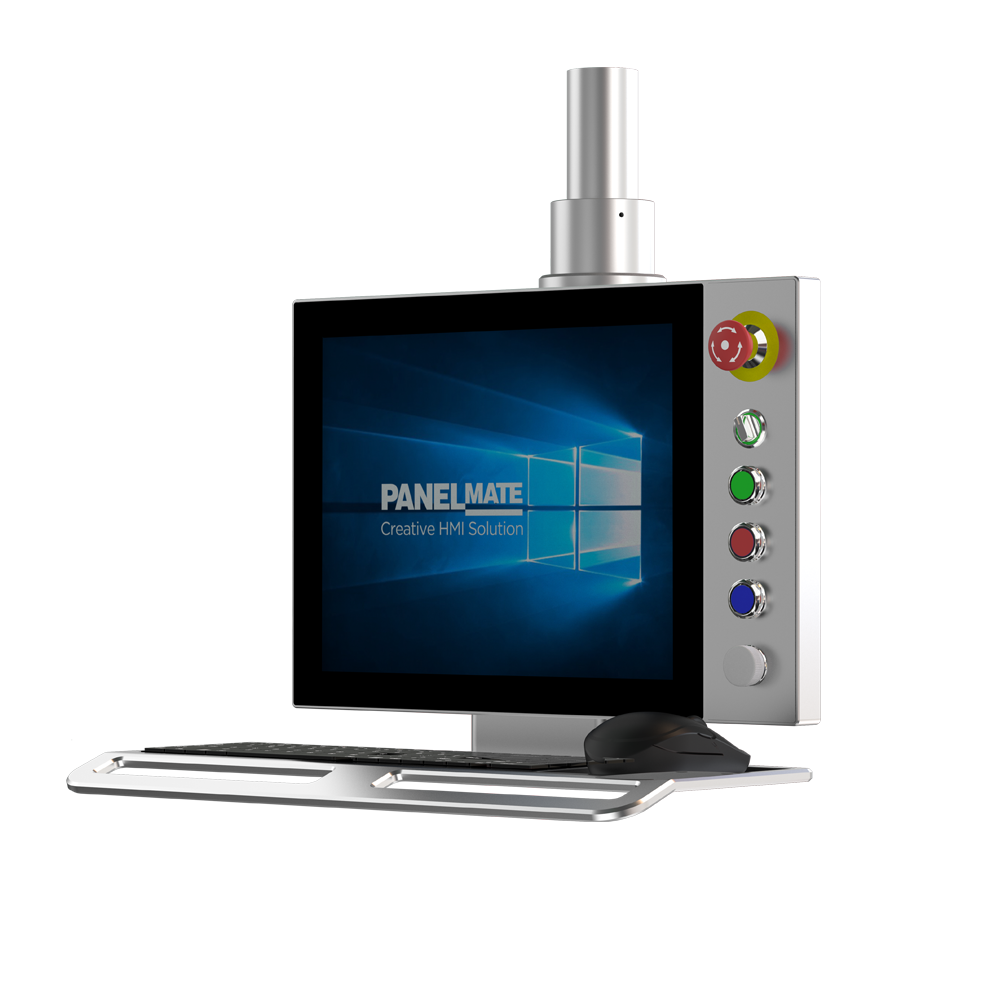

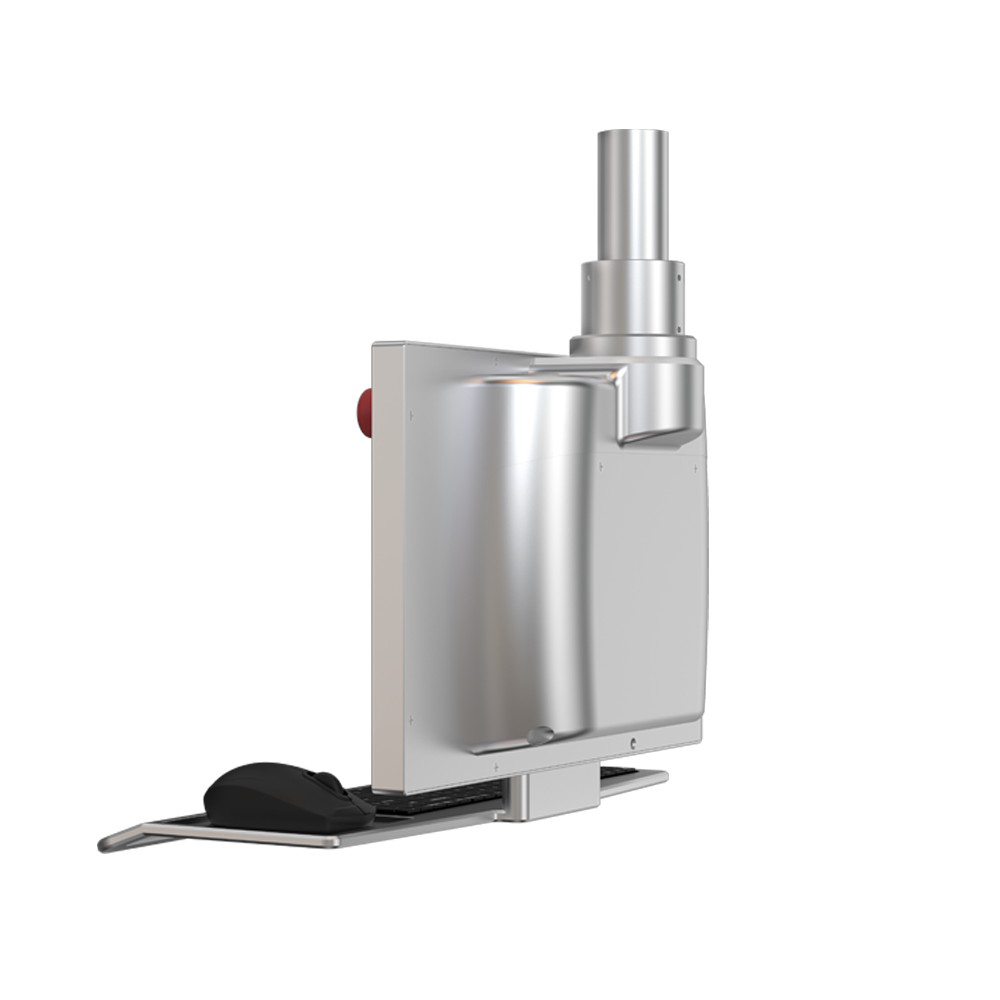

PANELMATE's hanging arm industrial monitor optimizes your workspace with its unique design. Its aluminum-magnesium alloy body combines durability and elegance.

Thanks to the IP65 protection level, PANELMATE provides complete protection against dust and water. It offers superior performance even in harsh industrial conditions, is long-lasting and reliable.

PANELMATE offers a wide range of screen sizes from 15" to 21.5". It provides excellent viewing in all conditions with a 178/178 degree viewing angle that provides clear viewing from any angle.

PANELMATE, which provides a clear image even in sunlight, offers high brightness performance with a brightness value of up to 1000 nits. It is ideal for outdoor use.

PANELMATE offers a user-friendly experience with its touch screen options. It provides flexibility with single point resistive touch screen or multiple capacitive touch screen options.

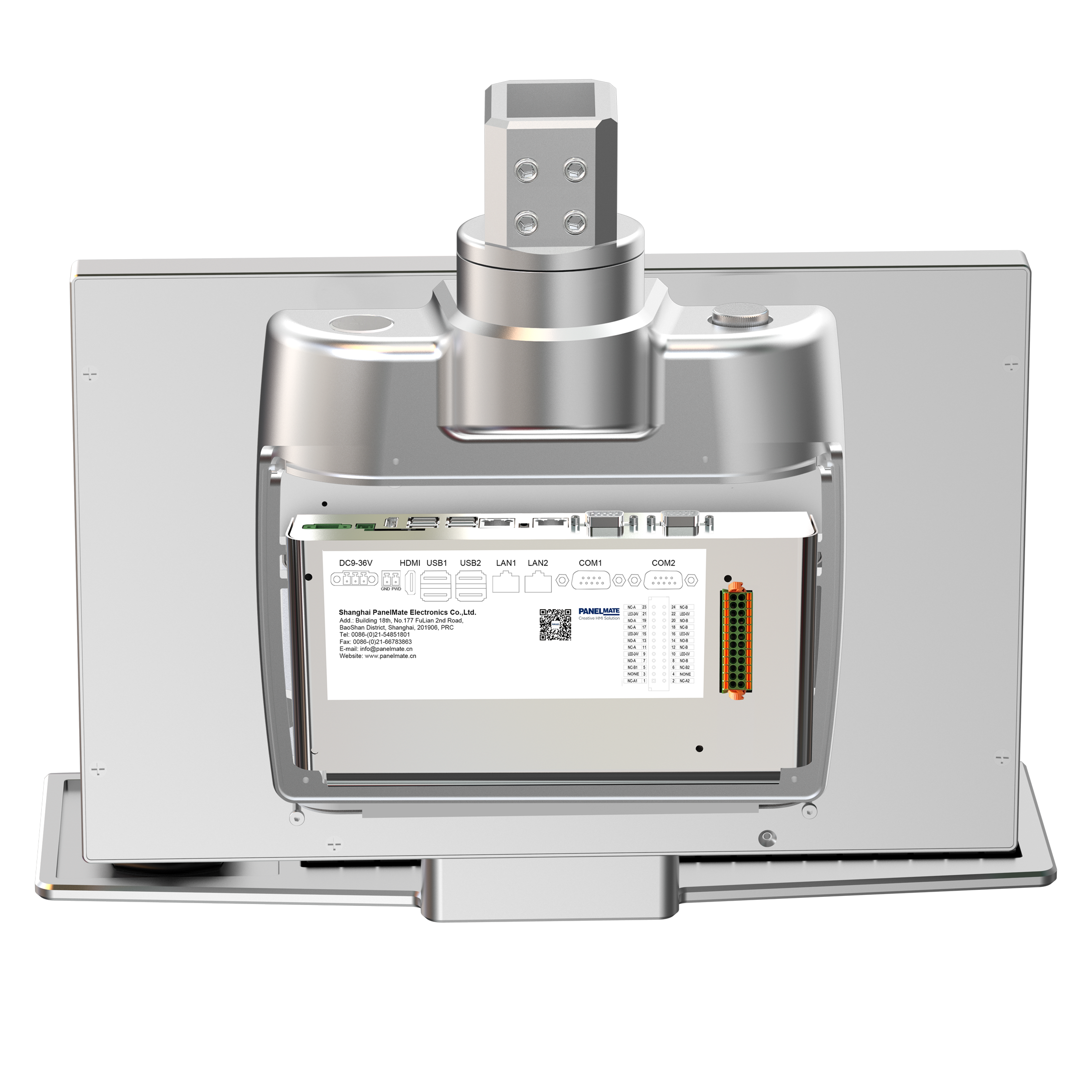

PANELMATE offers a wide range of connectivity options with DVI, HDMI, VGA video interfaces and 2xUSB ports. This allows it to be easily integrated with various devices and provides versatile use.

Thanks to the wide voltage range of DC 9~36V, PANELMATE is compatible with different power sources. Flexible energy options expand usage areas and provide ease of installation.

With support for long-distance USB signal output, PANELMATE can transmit USB signals up to 50 meters. This feature ensures smooth connection and efficiency even in large areas.

PANELMATE, which can transmit video and USB signals up to 100 meters via CAT6 network cable, offers high performance and flexibility. This feature provides high efficiency even in large areas.


Features


Product Code IDD58150-R2-5K
Screen size 15" TFT LCD
Resolution 1024 x 768
Screen Format 4 | 3
Brightness 420 cd/㎡
Contrast 1000 | 1
Viewing Angle 178°(H) / 178°(V)
Touch Type Rezistif
Video Entry HDMI x 1 | VGA x 1
USB 2.0 x 2 [Touch Control]
Buttons 1 x USB + 1 x Reset + 1 x Stop Start + 1 x Knob + 1 x Emergency Stop Button
Power Consumption 11W
Mounting Type 4463 | 6085 | 48 ARM [Hanging Arm is Priced Separately.]
Supply Voltage DC 12-36 V
Working temperature -10°C ~ 65°C
External Dimensions (mm) 433.7 x 284.6 x 122.5
Body Material Aluminum | Body Color: Metallic Gray
IP Protection Class Front IP65
Certificates CE | FCC | ROHS | ISO
