GENE-EHL5-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:

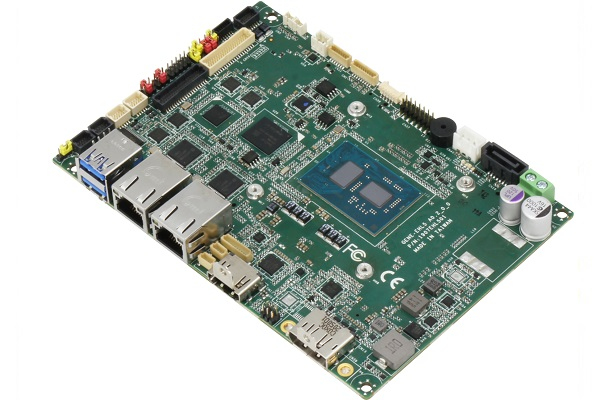

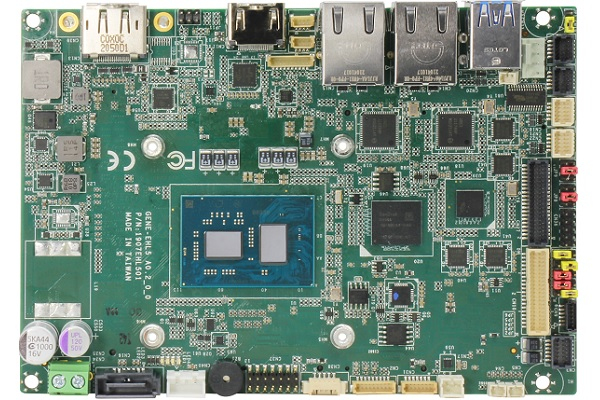

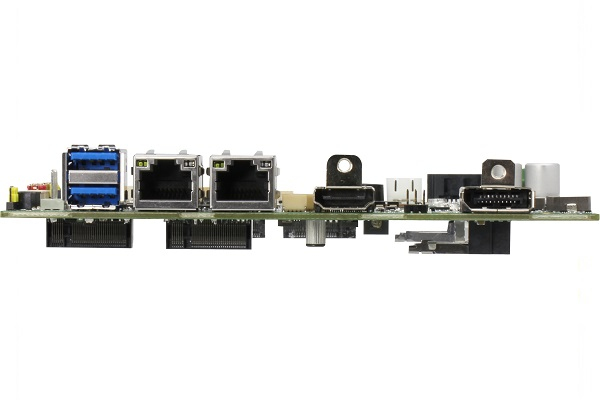

GENE-EHL5-A10-0003, The new generation 3.5-inch sub-compact motherboard is optimized for 5G and IoV applications.
It provides powerful processing power and low energy consumption with Intel® Celeron® J6412 processor.
It works compatible with industrial devices with 4 x RS-232/422/485 serial ports.
It provides high flexibility by supporting up to 32GB DDR4 SO-DIMM memory.
Ideal for IoV applications with dual CANBUS channels.
Features
| Product Code | GENE-EHL5-A10-0003 |
| Form Factor | 3.5" SubCompact Board |
| Card Size (mm) | 101.6 x 146 |
| Processor [CPU] | Intel® Celeron® J6412 4 Core 2.00 / 2.60 GHz | BM : 3850 |
| Processor [CPU] Family | Intel® Celeron® |
| SSD/HDD/mSATA/M.2 | 32 GB eMMC | SATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 2 |
| RS 232/422/485 Serial Port | x 4 |
| Digital I/O | DIOx 16 |
| Video Output | LVDS x 1 |
| LVDS | 18/24 bit 2CH x 1 |
| Expansion Slot | M.2 B Key x 1 | M.2 B Key x 1 | M.2 E Key x 1 | M.2 B Key x 1 |
| SMBUS | x 1 |
| Certificates | CE |
