GENE-APL7-A11-F002
Brand: AAEON [An ASUS Co.]
Categories:

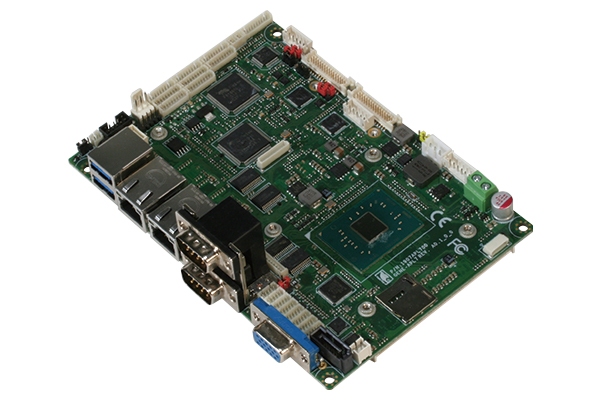

GENE-APL7-A11-F002 is a powerful and cost-effective motherboard for Industrial applications.
It provides low power consumption with its Intel® Celeron® N3350 processor.
The 3.5" SubCompact form factor is ideal for applications with space constraints.

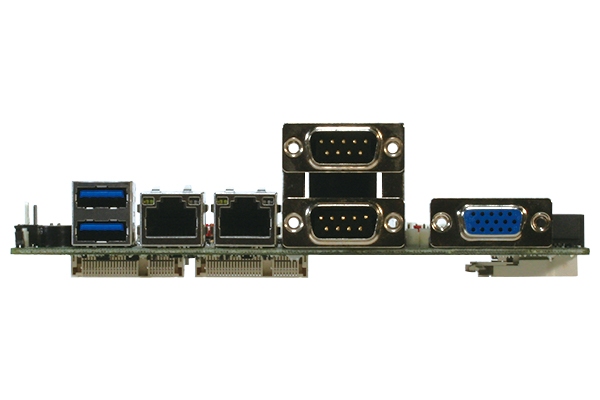

It provides flexible I/O options with 2 x GbE ports and 8-bit DIO support.
Thanks to its fanless design, it provides energy efficiency and operates at low temperatures.
Features
| Product Code | GENE-APL7-A11-F002 |
| Form Factor | 3.5" SubCompact Board |
| Card Size (mm) | 101.6 x 146 |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 2 |
| RS 232/422/485 Serial Port | x 1 |
| Digital I/O | DIOx 8 |
| Video Output | VGA x 1 + LVDS x 1 |
| LVDS | 24 bit 1CH x 1 |
| Audio Output | Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe |
| Supply Voltage | DC 12 V |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
