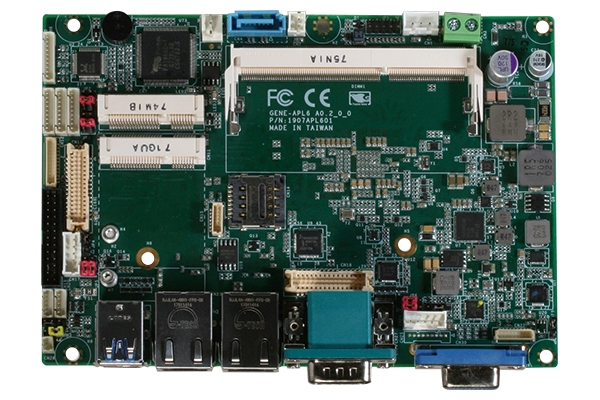

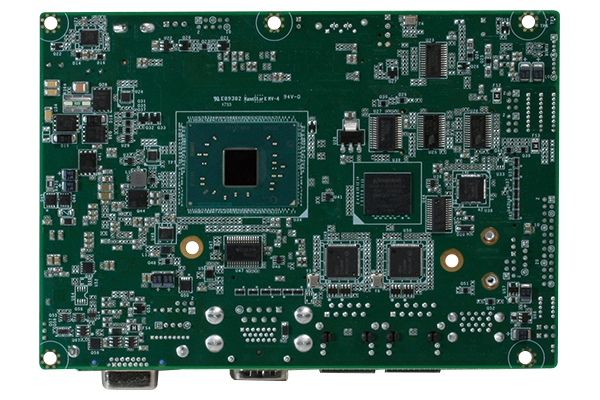

GENE-APL6W2-A11-F005
Brand: AAEON [An ASUS Co.]
Categories:
GENE-APL6W2-A11-F005 provides high-performance industrial solutions with Intel® Atom® x7-E3950 processor.
It adapts to a wide temperature range with 12V DC supply voltage.
With up to 128GB eMMC storage and 8-bit DIO digital input/output, it is ideal for industrial projects.
Provides multi-monitor support with HDMI, VGA and LVDS video outputs.
It offers wide connection options with dual RS 232/422/485 ports.
Features
| Product Code | GENE-APL6W2-A11-F005 |
| Form Factor | 3.5" SubCompact Board |
| Card Size (mm) | 101.6 x 146 |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | Intel® Atom® x7-E3950 4 Core 1.60 GHz | BM : 2150 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | SATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 2 |
| RS 232/422/485 Serial Port | x 2 |
| Digital I/O | DIOx 8 |
| Video Output | HDMI x 1 + VGA x 1 + LVDS x 1 |
| LVDS | 24 bit 1CH x 1 |
| Expansion Slot | Full Size Mini-PCIe |
| Supply Voltage | DC 12 V |
| Working temperature | -40°C ~ 85°C WITAS2 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
