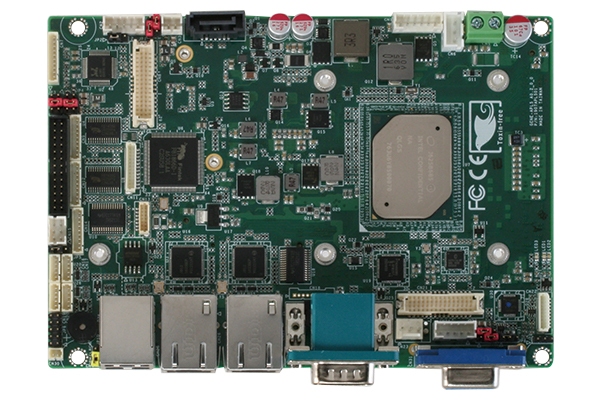

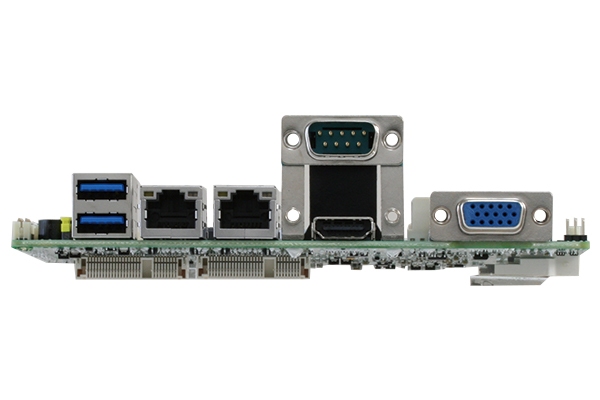

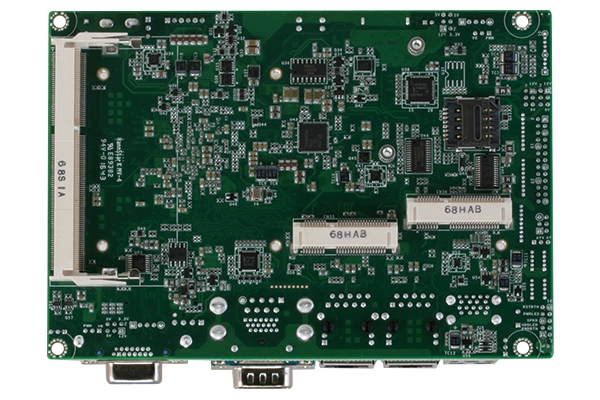

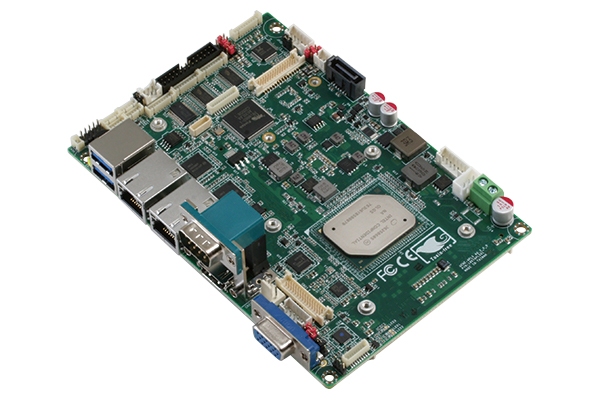

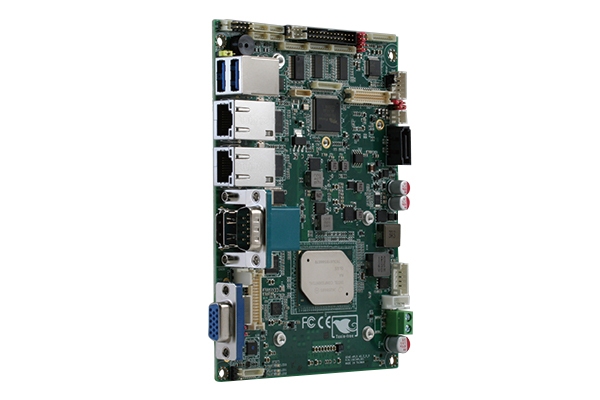

GENE-APL5-A12-F002
Brand: AAEON [An ASUS Co.]
Categories:
GENE-APL5-A12-F002 delivers a powerful and energy-efficient computing experience with its 14nm quad-Core Intel® Celeron® processor.
It supports up to 4K resolution with HDMI and LVDS video outputs.
It has an expandable structure with RS-232/422/485 serial ports and DIO connections.
It offers flexibility with DDR3L RAM support and a Half-Size Mini-PCIe expansion slot.
With support for Windows 10 and Linux Ubuntu, it is ideal for various industrial applications.
Features
| Product Code | GENE-APL5-A12-F002 |
| Form Factor | 3.5" SubCompact Board |
| Card Size (mm) | 101.6 x 146 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | x 4 |
| UART | (Tx /Rx) x 2 |
| RS 232/422/485 Serial Port | x 2 |
| Digital I/O | DIOx 8 |
| Video Output | VGA x 1 + LVDS x 1 |
| LVDS | 24 bit 1CH x 1 |
| Expansion Slot | Half Size Mini PCIe x 1 |
| TPM | TPM 2.0 |
| Supply Voltage | DC 9-19 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 21.04 | Operating system sold separately from license. |
