GENE-ADP6-A10-0003
Brand: AAEON [An ASUS Co.]
Categories: 3.5'' SubCompact

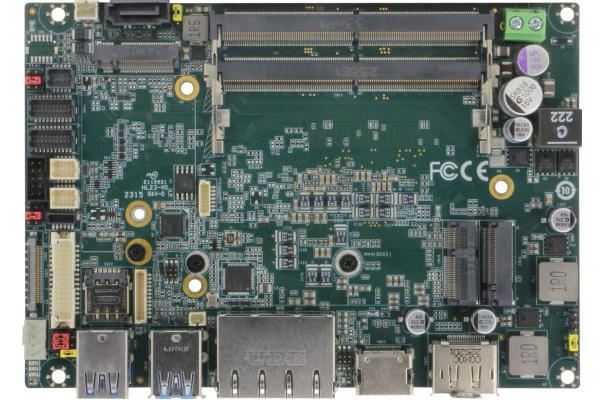

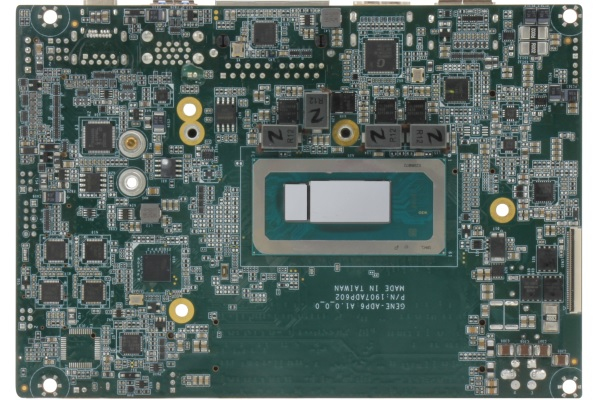

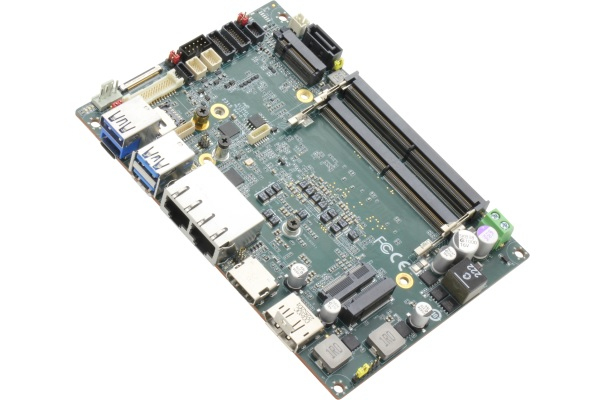

3.5" SUBCmpact Motherboard with 12th Gen Intel® Core™ i7/i5/i3/Celeron® Processor SoC
GENE-ADP6 is the latest addition to AAEON's 3.5" SUBCmpact Board series, offering improvements across the spectrum to provide advanced solutions for increasingly complex markets.
Offering significant improvements in extensibility, visual display options and advanced security measures, GENE-ADP6 can take full advantage of the capabilities of the new Intel® 12th Gen Core™ /Celeron CPU for edge computing, digital signage and machine vision applications.
In addition, GENE-ADP6's DDR5 4800MHz support delivers up to 50% faster data transfer rates and a new, more efficient power management structure.
Features
12th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
DDR5 4800, Dual Channel SODIMM x 2, up to 64 GB

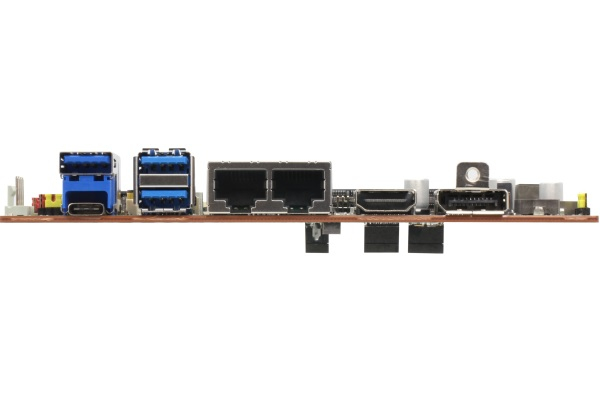

LVDS x 1, eDP x 1, DP x 1, HDMI x 1
2.5GbE x 1, GbE x 1, SATA 6Gb/s x 1, GPIO 8-bit
USB 3.2 Gen2 x 3, USB 2.0 x 4, USB Type C x 1, RS-232/422/485 x 4
M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, M.2 3052/3042/2242 B-Key x 1
Wide DC Input 9~36V
Features
| Product Code | GENE-ADP6-A10-0003 |
| Form Factor | 3.5" SubCompact Board |
| Card Size (mm) | 101.6 x 146 |
| Cooling | Fan |
| Processor [CPU] | Intel® Core™ i5-1250PE 12 Core 1.30 / 4.40 GHz | BM : 17740 |
| Processor [CPU] Family | Intel® Core™ i5 12. Gen |
| RAM [System Memory] | DDR5 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | SATA x 1 |
| LAN/Ethernet | GbE x 1 | 2.5 GbE x 1 |
| USB 3.2 | x 3 |
| USB 2.0 | x 4 |
| USB Type-C | x 1 |
| Video Output | eDP x 1 + LVDS x 1 |
| LVDS | 18/24 bit 2CH x 1 |
| Expansion Slot | M.2 M Key x 1 | M.2 B Key x 1 | M.2 E Key x 1 |
| SMBUS | x 1 |
| 4G - LTE | Nano SIM (Optional) |
| Supply Voltage | DC 9-36 V |
| Operating temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Licence Price is excluded. |
