GENE-ADN6-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:

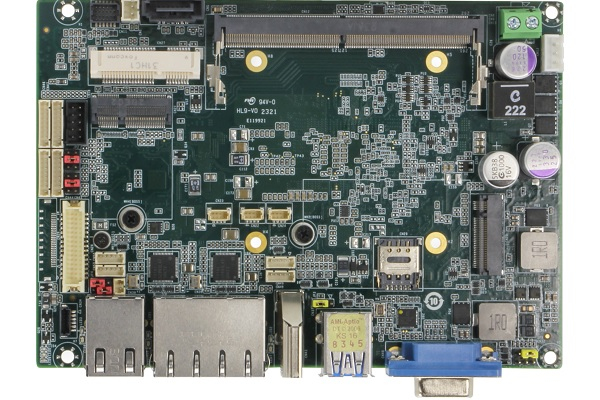

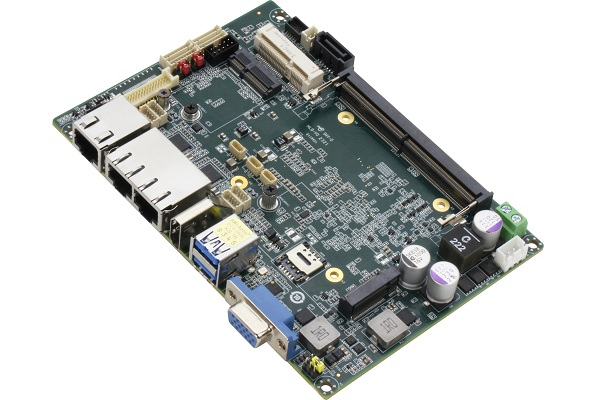

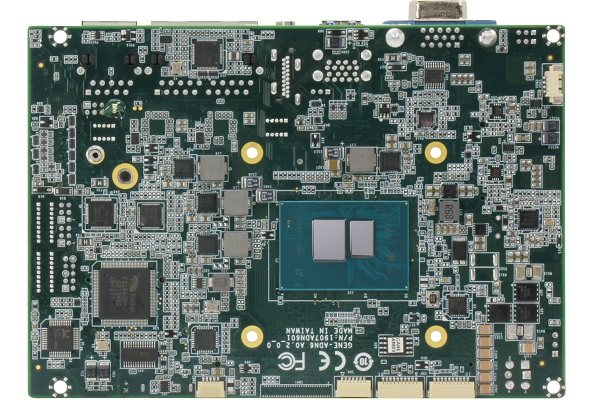

GENE-ADN6-A10-0003 is a high-performance industrial motherboard with Intel® N97 processor.
It offers large data processing capacity with DDR5 [Max 16 GB] RAM support and SATA-based storage.

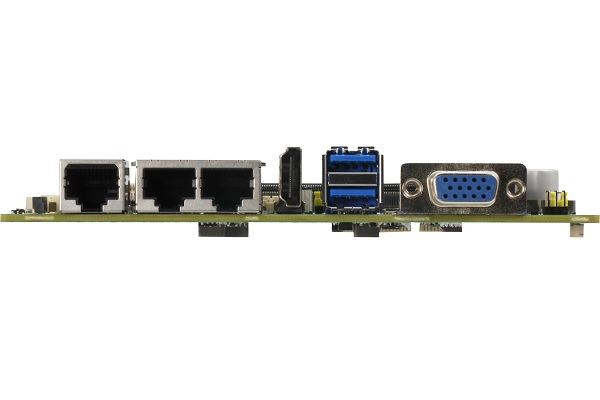

2.5GbE x 2 Ethernet ports and extensive I/O options are available.
It is suitable for multi-screen installations with HDMI, VGA, LVDS image outputs.
It has a robust industrial structure that can operate in the temperature range of -20°C ~ 70°C.
Features
| Product Code | GENE-ADN6-A10-0003 |
| Form Factor | 3.5" SubCompact Board |
| Card Size (mm) | 101.6 x 146 |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | Intel® N97 4 Core 3.60 / 3.60 GHz | BM : 5930 |
| Processor [CPU] Family | Intel® Processor N® |
| RAM [System Memory] | DDR5 [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | SATA x 1 |
| LAN/Ethernet | 2.5 GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 4 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 1 + VGA x 1 + LVDS x 1 |
| LVDS | 18/24 bit 2CH x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | M.2 E Key x 1 | M.2 B Key x 1 |
| SMBUS | x 1 |
| 4G - LTE | Nano SIM (Opsiyonel) |
| Supply Voltage | DC 12 V |
| Working temperature | -20°C ~ 70°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
