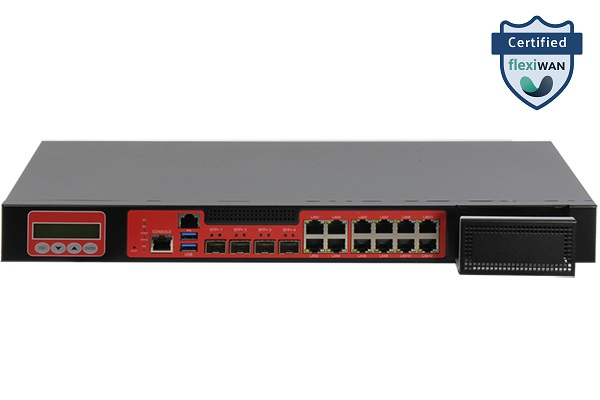

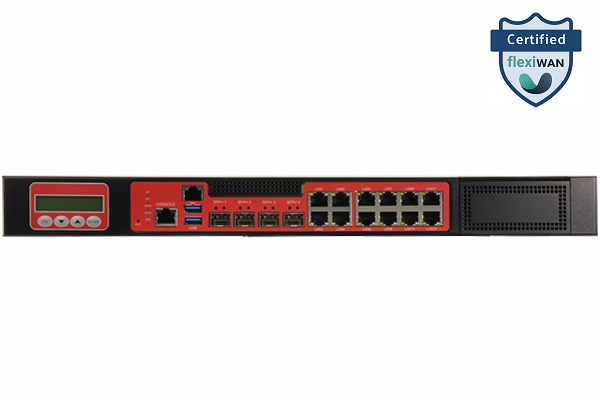

FWS-7541-E12-A10-00
Brand: AAEON [An ASUS Co.]
Categories:
FWS-7541-E12-A10-00 is ideal for network infrastructures requiring high bandwidth.
It offers professional network management with its Intel® Xeon® D-1713NT 4 Core 2.10 / 2.60 GHz processor.

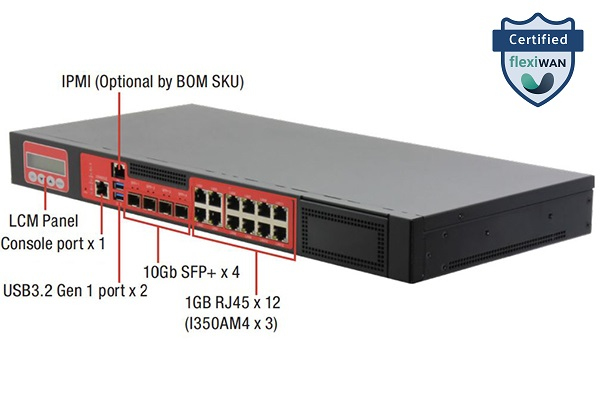

It supports large-scale network connections with 12 x GbE and 4 x 10GbE SFP+ ports.
It has a scalable structure with DDR4 RAM support, M.2 expansion slots and PCIe slots.
It is a powerful solution for enterprise data centers with its 1U rackmount form factor.
Features
| Product Code | FWS-7541-E12-A10-00 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Xeon® D-1713NT 4 Core 2.10 / 2.60 GHz | BM : 4600 |
| Processor [CPU] Family | Intel® Xeon® |
| RAM [System Memory] | DDR4 x 2 |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 |
| LAN/Ethernet | GbE x 12 | 10GbE SFP+ x 4 |
| USB 3.0 | x 2 |
| Video Output | VGA x 1 |
| Expansion Slot | M.2 E Key x 1 | M.2 B Key x 1 | PCIe [x1] x 1 | PCIe [x1] x 1 |
| Mounting Type | 1U Rackmount |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 40°C |
| Body Material | Aluminum |
| Certificates | CE |
